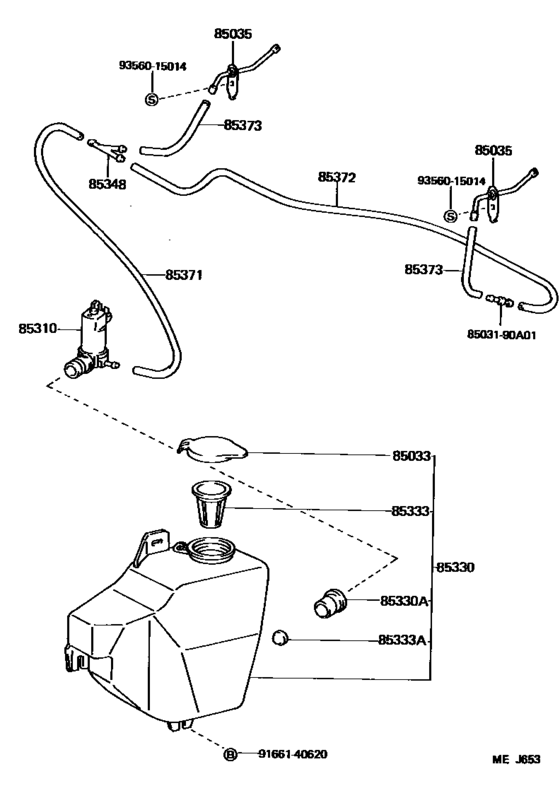

Windshield Washer ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85332-90A01 Cap Assy, Windshield WasherWINDSHIELD WASHER [08.1987 - 01.1990] FJ62 |
85332-90A01 |
US $12.01 |
||
|
85035
|
85035
85341-90A05
Nozzle Sub-Assy, Washer
[08.1987 - 01.1990] FJ62 LH |
85341-90A05 |
— | ||
|
85035
|
85035
85341-90A08 Nozzle Sub-Assy, WasherWINDSHIELD WASHER [08.1987 - 01.1990] FJ62 RH |
85341-90A08 |
US $27.08 |
||
|
85310
|
85310
85310-14080
Motor And Pump Assy, Windshield Washer
[08.1987 - 01.1990] FJ62 |
85310-14080 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-50020 Motor And Pump Assy, Windshield Washer[08.1987 - 01.1990] FJ62 |
85330-50020 |
US $69.54 |
||
|
85330
|
85330
85330-90A07 Jar Assy, Windshield WasherWINDSHIELD WASHER [08.1987 - 01.1990] FJ62 |
85330-90A07 |
US $107.74 |
||
|
85330A
|
85330A
90099-32103
Bush, Windshield Washer Jar
[08.1987 - 01.1990] FJ62 |
90099-32103 |
— | ||
|
85333
|
85333
85333-60010
Filter, Windshield Washer Jar
[08.1987 - 01.1990] FJ62 |
85333-60010 |
— | ||
|
85333A
|
85333A
85333-20020
Filter, Windshield Washer Jar
[08.1987 - 01.1990] FJ62 |
85333-20020 |
— | ||
|
85348
|
85348
85348-89101
Joint, Windshield Washer Hose, No.1
[08.1987 - 01.1990] FJ62 |
85348-89101 |
— | ||
|
85371
|
85371
90099-33332
Hose, Windshield Washer (From Joint To Joint), No.1
[08.1987 - 01.1990] FJ62 |
90099-33332 |
— | ||
| replacement | |||||
|
85371
|
85371
90099-33334
Hose, Windshield Washer (From Joint To Joint)
[08.1987 - 01.1990] FJ62 |
90099-33334 |
— | ||
|
85372
|
85372
90099-33332
Hose, Windshield Washer (From Joint To Joint), No.1
[08.1987 - 01.1990] FJ62 |
90099-33332 |
— | ||
| replacement | |||||
|
85372
|
85372
90099-33334
Hose, Windshield Washer (From Joint To Joint)
[08.1987 - 01.1990] FJ62 |
90099-33334 |
— | ||
|
85373
|
85373
90099-33332
Hose, Windshield Washer (From Joint To Joint), No.1
[08.1987 - 01.1990] FJ62 |
90099-33332 |
— | ||
| replacement | |||||
|
85373
|
85373
90099-33334
Hose, Windshield Washer (From Joint To Joint)
[08.1987 - 01.1990] FJ62 |
90099-33334 |
— | ||
|
8503190A01
|
8503190A01
85031-90A01
Valve, Windshield Washer Hose
|
85031-90A01 |
— | ||
|
9166140620
|
9166140620
91661-40620 New Genuine Part |
91661-40620 |
US $1.43 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.25 |
||
