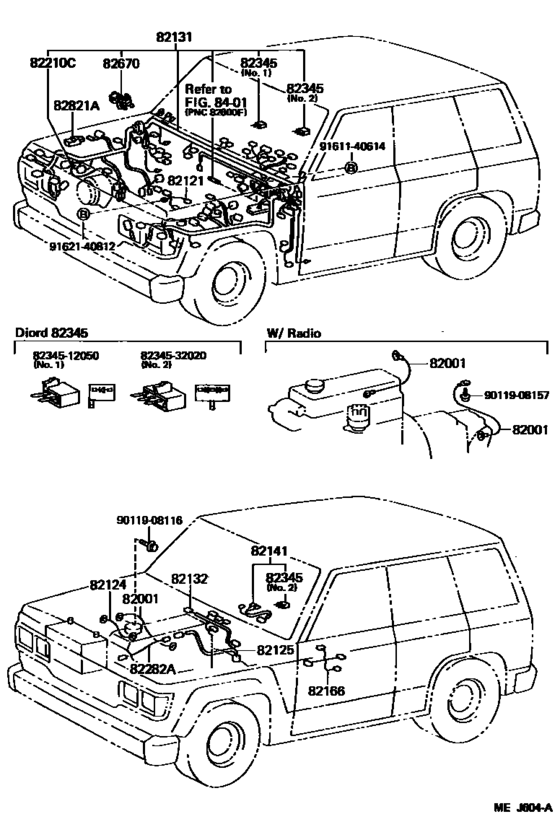

Wiring & Clamp ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGG
- ENGINE
- 3FE
- DESTINATION
- CND
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07003
Cable, Bond, No.1
[08.1987 - 01.1990] FJ62 FRAME-ENGINE |
90980-07003 |
— | ||
|
82001
|
82001
90980-07048 Cable, Bond, No.1[08.1987 - 01.1990] FJ62 MISSION-BODY |
90980-07048 |
US $13.10 |
||
|
82001
|
82001
90980-07251 Cable, Bond, No.1[08.1987 - 01.1990] FJ62 ENGINE-HEATER VALVE |
90980-07251 |
US $13.10 |
||
|
82121
|
82121
82121-90A03 Wire, EngineENGINE [08.1987 - 08.1988] FJ62 |
82121-90A03 |
US $550.37 |
||
|
82121
|
82121
82121-90A04 Wire, EngineENGINE [08.1988 - 01.1990] FJ62 |
82121-90A04 |
US $620.26 |
||
|
82124
|
82124
82124-90A01 Wire, Engine, No.4ENGINE, NO.4 [08.1987 - 01.1990] FJ62 |
82124-90A01 |
US $6.99 |
||
|
82125
|
82125
82125-90A09 Wire, TransmissionTRANSMISSION [08.1987 - 01.1990] FJ62 |
82125-90A09 |
US $43.53 |
||
|
82131
|
82131
82131-90G89 Wire, CowlCOWL [08.1987 - 08.1988] FJ62 |
82131-90G89 |
US $1,688.96 |
||
|
82131
|
82131
82131-90G98 Wire, CowlCOWL [08.1988 - 01.1990] FJ62 |
82131-90G98 |
US $1,703.52 |
||
|
82132
|
82132
82132-90A15
Wire, Cowl, No.2
[08.1987 - 01.1990] FJ62 |
82132-90A15 |
— | ||
|
82141
|
82141
82141-90A20 Wire, Instrument Panel[08.1987 - 01.1990] FJ62 |
82141-90A20 |
US $38.58 |
||
|
82141
|
82141
82141-90A21 Wire, Instrument Panel[08.1987 - 01.1990] FJ62 W(DIFFERENTIAL LOCK) |
82141-90A21 |
US $38.58 |
||
|
82166
|
82166
82166-90A00 Wire, Console Box[08.1987 - 01.1990] FJ62 |
82166-90A00 |
US $31.16 |
||
|
82210C
|
82210C
90982-08251
Fusible Link
[08.1987 - 01.1990] FJ62 L=110X3,L=100,NO.2 |
90982-08251 |
— | ||
|
82282A
|
82282A
82282-90A04
Wire, Diff Lock Indicator
[08.1987 - 01.1990] FJ62 FRONT |
82282-90A04 |
— | ||
|
82282A
|
82282A
82282-90A05 Wire, Diff Lock Indicator[08.1987 - 01.1990] FJ62 REAR |
82282-90A05 |
US $31.16 |
||
|
82345
|
82345
82345-12050 Diode[08.1987 - 08.1988] FJ62 NO.1 |
82345-12050 |
US $14.16 |
||
|
82345
|
82345
82345-32020 Diode[08.1987 - 01.1990] FJ62 NO.2 |
82345-32020 |
US $13.45 |
||
|
82670
|
82670
82670-90K00
Block Assy, Junction, No.1
[08.1987 - 01.1990] FJ62 |
82670-90K00 |
— | ||
|
82821A
|
82821A
82821-12150 Cover, Connector(For Battery Terminal)[08.1987 - 01.1990] FJ62 |
82821-12150 |
US $8.60 |
||
|
8234512050
|
8234512050
82345-12050 Diode |
82345-12050 |
US $14.16 |
||
|
8234532020
|
8234532020
82345-32020 Diode |
82345-32020 |
US $13.45 |
||
|
9011908116
|
9011908116
90119-08116 Bolt W Washer |
90119-08116 |
US $4.30 |
||
|
9011908157
|
9011908157
90119-08157
New Genuine Part
|
90119-08157 |
— | ||
| replacement | |||||
|
9011908157
|
9011908157
90119-08718 BOLT WWASHER |
90119-08718 |
US $3.23 |
||
|
9161140614
|
9161140614
91611-40614
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40614 |
— | ||
| replacement | |||||
|
9161140614
|
9161140614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.97 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
