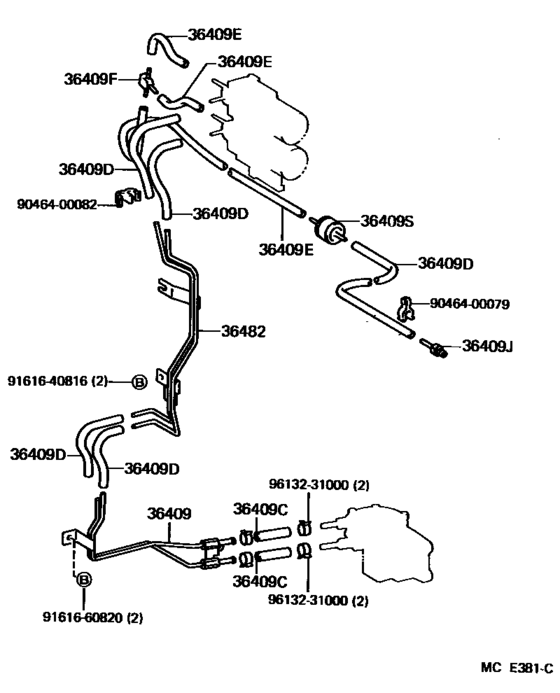

Transfer Vacuum Piping ([08.1988 - ] (8808- )FJ62) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Europe
- Frame
- FJ62
- grade
- GX
- Roof
- SRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36409
|
36409
36409-60040
Support Sub-Assy, Vacuum Tube Union
[08.1987 - 01.1990] HJ6#..MTM; FJ62,HJ60..ATM |
36409-60040 |
— | ||
|
36409C
|
36409C
95441-09340
Hose, Vacuum, No.1 (For Front Drive Shift)
[08.1987 - 01.1990] FJ62,HJ60..ATM L=340 |
95441-09340 |
— | ||
| replacement | |||||
|
36409C
|
36409C
31438-60050
Hose, No.2(For Clutch Booster Vacuum)
[08.1987 - 01.1990] FJ62,HJ60..ATM L=340 |
31438-60050 |
— | ||
|
36409D
|
36409D
90999-92003
Hose, Breather (For Transfer Case)
[08.1988 - 01.1990] FJ62 L=600 |
90999-92003 |
— | ||
|
36409D
|
36409D
95411-19930
Hose(For Carburetor To Manifold)
[08.1987 - 01.1990] HJ6#..MTM *H,L=300,MARK=#*; FJ62,HJ60..ATM *H,L=300,MARK=#* |
95411-19930 |
— | ||
| replacement | |||||
|
36409D
|
36409D
90999-92002
Air Hose (300 mm)
[08.1987 - 01.1990] HJ6#..MTM *H,L=300,MARK=#*; FJ62,HJ60..ATM *H,L=300,MARK=#* |
90999-92002 |
— | ||
|
36409E
|
36409E
90999-92003
Hose, Breather (For Transfer Case)
[08.1988 - 01.1990] FJ62 L=600 |
90999-92003 |
— | ||
|
36409E
|
36409E
95411-19930
Hose(For Carburetor To Manifold)
[08.1987 - 01.1990] HJ6#..MTM *H,L=200,MARK=#*; FJ62,HJ60..ATM *H,L=300,MARK=#* |
95411-19930 |
— | ||
| replacement | |||||
|
36409E
|
36409E
90999-92002
Air Hose (300 mm)
[08.1987 - 01.1990] HJ6#..MTM *H,L=200,MARK=#*; FJ62,HJ60..ATM *H,L=300,MARK=#* |
90999-92002 |
— | ||
|
36409F
|
36409F
90413-04005 Way, 3, No.1 (For Front Drive Shift)[08.1987 - 01.1990] FJ62; HJ6#..MTM |
90413-04005 |
from US $3.40 |
||
|
36409J
|
36409J
90404-51093 Union, Vacuum Hose[08.1988 - 01.1990] FJ62 |
90404-51093 |
from US $2.45 |
||
|
36409S
|
36409S
90917-10065 Valve, Check[08.1988 - 01.1990] FJ62 |
90917-10065 |
from US $13.08 |
||
|
36482
|
36482
36482-60100
Tube, Front Drive Vacuum, No.2
[08.1987 - 01.1990] HJ6#..MTM; FJ62,HJ60..ATM |
36482-60100 |
— | ||
|
9046400079
|
9046400079
90464-00079 Clamp, Vacuum Tube |
90464-00079 |
US $5.59 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161660820
|
9161660820
91616-60820
Bolt(For Clutch Release Cylinder Setting)
|
91616-60820 |
— | ||
| replacement | |||||
|
9161660820
|
9161660820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9613231000
|
9613231000
96132-31000
Clip(For Ventilation Tube)
|
96132-31000 |
— | ||
| replacement | |||||
|
9613231000
|
9613231000
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
from US $1.44 |
||
