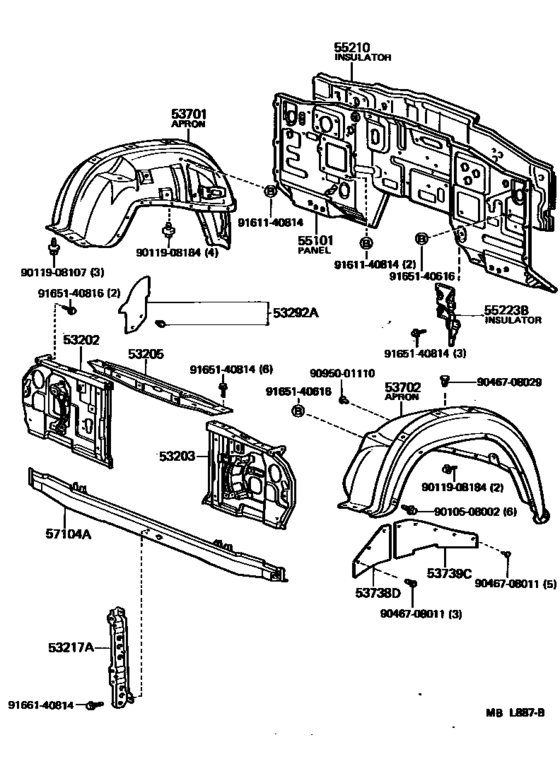

Front Fender Apron & Dash Panel ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGV
- ENGINE
- 3FE
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53202
|
53202
53202-90A04
Support Sub-Assy, Radiator, Rh
[08.1987 - 01.1990] FJ62 |
53202-90A04 |
— | ||
|
53203
|
53203
53203-90A05
Support Sub-Assy, Radiator, Lh
[08.1987 - 10.1988] FJ62 |
53203-90A05 |
— | ||
|
53205
|
53205
53216-90A03
Support Sub-Assy, Radiator, Upper
[08.1987 - 01.1990] FJ62 |
53216-90A03 |
— | ||
|
53217A
|
53217A
53217-90A03
Brace, Hood Lock Support
[08.1987 - 01.1988] FJ62 |
53217-90A03 |
— | ||
|
53217A
|
53217A
53217-90A05
Brace, Hood Lock Support
[01.1988 - 01.1990] FJ62 |
53217-90A05 |
— | ||
|
53292A
|
53292A
53292-90A00 Seal, Radiator Support, Upper[08.1987 - 01.1990] FJ62 |
53292-90A00 |
US $5.39 |
||
|
53701
|
53701
53701-90G90 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [08.1987 - 01.1990] FJ62 |
53701-90G90 |
US $430.98 |
||
| replacement | |||||
|
53701
|
53701
53701-90G76 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [08.1987 - 01.1990] FJ62 |
53701-90G76 |
US $430.98 |
||
|
53702
|
53702
53702-90A70 Apron Sub-Assy, Front Fender, LhFRONT FENDER, LH [08.1987 - 01.1990] FJ62 |
53702-90A70 |
US $430.98 |
||
|
53738D
|
53738D
53738-90A00
Seal, Front Fender Apron, Rh
[08.1987 - 01.1990] FJ62 |
53738-90A00 |
— | ||
|
53739C
|
53739C
53739-90A00
Seal, Front Fender Apron, Rh
[08.1987 - 01.1990] FJ62 |
53739-90A00 |
— | ||
|
55101
|
55101
55016-90A75 Panel Sub-Assy, DashDASH [08.1987 - 01.1990] FJ62 |
55016-90A75 |
US $1,116.75 |
||
|
55101
|
55101
55016-90A76 Panel Sub-Assy, DashDASH [08.1987 - 01.1990] FJ62 W(AIR CONDITIONER) |
55016-90A76 |
US $1,116.75 |
||
|
55210
|
55210
55210-90A12 Insulator Assy, Dash PanelDASH PANEL [08.1987 - 01.1990] FJ62 |
55210-90A12 |
US $216.94 |
||
|
55223B
|
55223B
55225-90A00 Insulator, Dash Panel Heat, No.1[08.1987 - 01.1990] FJ62 |
55225-90A00 |
US $26.94 |
||
|
57104A
|
57104A
57104-90A03
Member Sub-Assy, Front Cross
[08.1987 - 01.1990] FJ62 |
57104-90A03 |
— | ||
|
9010508002
|
9010508002
90105-08002 New Genuine Part |
90105-08002 |
US $3.23 |
||
|
9011908107
|
9011908107
90119-08107 New Genuine Part |
90119-08107 |
US $3.58 |
||
|
9011908184
|
9011908184
90119-08184 Plate, Front Fender Apron Mounting |
90119-08184 |
US $3.40 |
||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.38 |
||
| replacements | |||||
|
9046708011
|
9046708011
90467-08011-TH
CLIP
|
90467-08011-TH |
— | ||
|
9046708011
|
9046708011
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) |
90467-08011-83 |
US $0.51 |
||
|
9046708029
|
9046708029
90467-08029 New Genuine Part |
90467-08029 |
US $2.87 |
||
|
9095001110
|
9095001110
90950-01110
New Genuine Part
|
90950-01110 |
— | ||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $1.79 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
US $1.08 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
US $2.15 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
US $3.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
US $1.43 |
||
|
9166140814
|
9166140814
91661-40814
New Genuine Part
|
91661-40814 |
— | ||
