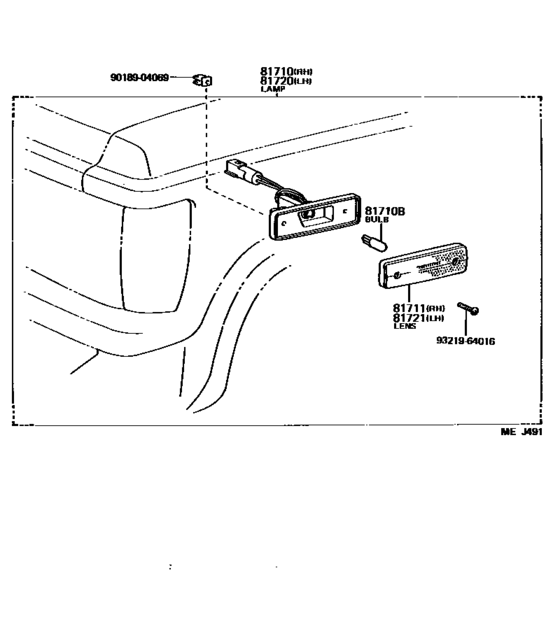

Front Marker Lamp ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGV
- ENGINE
- 3FE
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81710
|
81710
81730-14110 Lamp Assy, Front Marker, Rh[08.1987 - 02.1989] FJ62 |
81730-14110 |
from US $28.44 |
||
|
81710B
|
81710B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.1987 - 01.1990] FJ62 12V 3.8W |
90981-11020 |
from US $3.05 |
||
|
81711
|
81711
81731-14110
Lens, Front Marker Lamp, Rh
[08.1987 - 01.1990] FJ62 |
81731-14110 |
— | ||
|
81720
|
81720
81740-14110 Lamp Assy, Front Marker, Lh[08.1987 - 02.1989] FJ62 |
81740-14110 |
US $36.79 |
||
|
81721
|
81721
81741-14110
Lens, Front Marker Lamp, Lh
[08.1987 - 01.1990] FJ62 |
81741-14110 |
— | ||
|
9018904069
|
9018904069
90189-04069 CLIP |
90189-04069 |
from US $0.68 |
||
|
9321964016
|
9321964016
93219-64016 SCREW |
93219-64016 |
US $2.20 |
