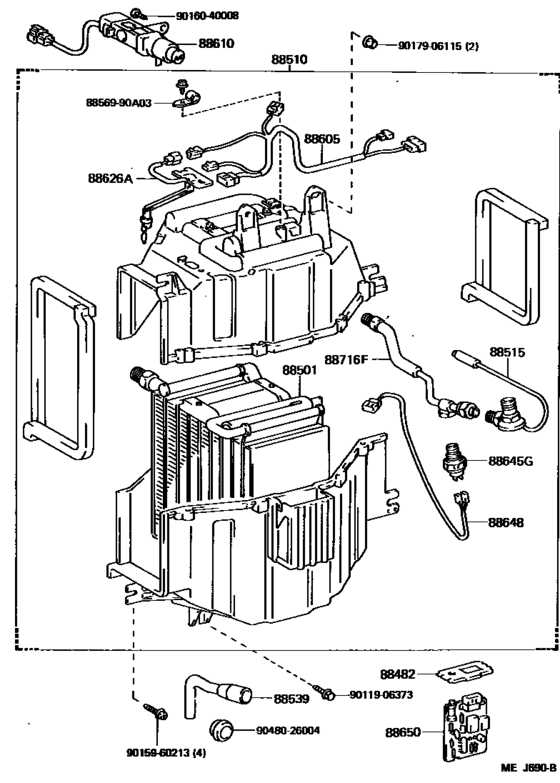

Heating & Air Conditioning - Cooler Unit ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGV
- ENGINE
- 3FE
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88482
|
88482
88482-90A00
Cap, Cooler
[08.1987 - 01.1990] FJ62 |
88482-90A00 |
— | ||
|
88501
|
88501
88501-90A07
Evaporator Sub-Assy, Cooler, No.1
[08.1987 - 01.1990] FJ62..USA; FJ62..CND |
88501-90A07 |
— | ||
|
88510
|
88510
88510-90A04
Unit Assy, Cooler
[08.1987 - 09.1989] FJ62..USA; FJ62..CND |
88510-90A04 |
— | ||
|
88515
|
88515
88515-87004
Valve, Cooler Expansion
[08.1987 - 01.1990] FJ62..USA; FJ62..CND |
88515-87004 |
— | ||
|
88539
|
88539
88539-90A00
Hose, Cooler Unit Drain, No.1
[08.1987 - 01.1990] FJ62..USA; FJ62..CND |
88539-90A00 |
— | ||
|
88605
|
88605
88605-90A09
Harness Sub-Assy, Cooler Wiring, No.1
[08.1987 - 01.1990] FJ62..USA; FJ62..CND |
88605-90A09 |
— | ||
|
88610
|
88610
88610-90A07
Switch, Cooler
[08.1987 - 01.1990] FJ62 |
88610-90A07 |
— | ||
|
88626A
|
88626A
88626-90A01
Holder, Thermistor
[08.1987 - 09.1989] FJ62..USA; FJ62..CND |
88626-90A01 |
— | ||
|
88645G
|
88645G
88645-30250
Switch, Pressure
[08.1987 - 01.1990] FJ62..USA; FJ62..CND |
88645-30250 |
— | ||
|
88648
|
88648
88648-90A00
Wiring, Cooler, No.1
[08.1987 - 01.1990] FJ62..USA; FJ62..CND |
88648-90A00 |
— | ||
|
88650
|
88650
88650-90A03
Amplifier Assy, Cooler Stabilizer
[08.1987 - 01.1990] FJ62 |
88650-90A03 |
— | ||
|
88716F
|
88716F
88716-90A27
Pipe, Cooler Refrigerant Liquid, F
[08.1987 - 01.1990] FJ62..USA; FJ62..CND |
88716-90A27 |
— | ||
|
8856990A03
|
8856990A03
88569-90A03
Clamp (for Cooler Relay)
|
88569-90A03 |
— | ||
|
9011906373
|
9011906373
90119-06373 New Genuine Part |
90119-06373 |
US $1.79 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9016040008
|
9016040008
90160-40008
New Genuine Part
|
90160-40008 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.12 |
