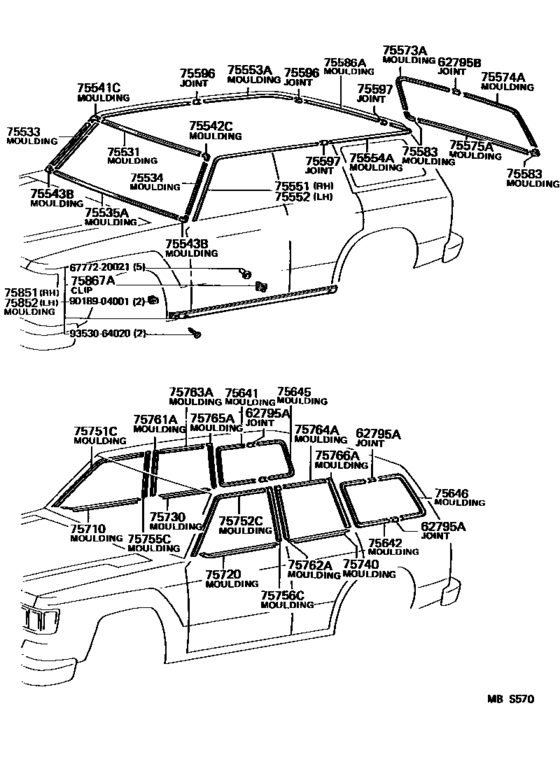

Moulding ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGV
- ENGINE
- 3FE
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62795A
|
62795A
62795-90A00 Cover, Quarter Window Moulding Joint[08.1987 - 01.1990] FJ62 |
62795-90A00 |
from US $10.49 |
||
|
62795B
|
62795B
62795-90A00 Cover, Quarter Window Moulding Joint[08.1987 - 01.1990] FJ62 |
62795-90A00 |
from US $10.49 |
||
|
75531
|
75531
75531-90A00 Moulding, Windshield, Outer Upper[08.1987 - 01.1990] FJ62 |
75531-90A00 |
from US $16.44 |
||
|
75533
|
75533
75533-90A00 Moulding, Windshield, Outside[08.1987 - 01.1990] FJ62 |
75533-90A00 |
from US $10.18 |
||
|
75534
|
75534
75534-90A00
Moulding, Windshield, Outside Lh
[08.1987 - 01.1990] FJ62 |
75534-90A00 |
— | ||
| replacement | |||||
|
75534
|
75534
75533-90A00 Moulding, Windshield, Outside[08.1987 - 01.1990] FJ62 |
75533-90A00 |
from US $10.18 |
||
|
75535A
|
75535A
75535-90A00 Moulding, Windshield, Lower[08.1987 - 01.1990] FJ62 |
75535-90A00 |
from US $19.86 |
||
|
75541C
|
75541C
75541-90A00 Moulding, Windshield Corner, Upper Rh[08.1987 - 01.1990] FJ62 |
75541-90A00 |
from US $4.05 |
||
|
75542C
|
75542C
75541-90A00 Moulding, Windshield Corner, Upper Rh[08.1987 - 01.1990] FJ62 |
75541-90A00 |
from US $4.05 |
||
|
75543B
|
75543B
75543-90A00 Moulding, Windshield Corner, Lower Rh[08.1987 - 01.1990] FJ62 |
75543-90A00 |
from US $4.07 |
||
|
75551
|
75551
75505-90A00 Moulding, Roof Drip Side Finish, Rh[08.1987 - 01.1990] FJ62 |
75505-90A00 |
from US $44.86 |
||
|
75552
|
75552
75506-90A00 Moulding, Roof Drip Side Finish, Lh[08.1987 - 01.1990] FJ62 |
75506-90A00 |
from US $44.86 |
||
|
75553A
|
75553A
75553-90A00 Moulding, Roof Drip Side Finish, Rear Rh[08.1987 - 01.1990] FJ62 |
75553-90A00 |
from US $35.72 |
||
|
75554A
|
75554A
75554-90A00 Moulding, Roof Drip Side Finish, Rear Lh[08.1987 - 01.1990] FJ62 |
75554-90A00 |
from US $35.72 |
||
|
75573A
|
75573A
75812-90A00
Moulding, Back Window Side, Rh
[08.1987 - 01.1990] FJ62 |
75812-90A00 |
— | ||
|
75574A
|
75574A
75813-90A00
Moulding, Back Window Side, Lh
[08.1987 - 01.1990] FJ62 |
75813-90A00 |
— | ||
|
75575A
|
75575A
75575-90A00
Moulding, Back Window, Lower
[08.1987 - 01.1990] FJ62 |
75575-90A00 |
— | ||
|
75583
|
75583
75583-90A00
Moulding, Back Window Corner, Lower Rh
[08.1987 - 01.1990] FJ62 |
75583-90A00 |
— | ||
|
75586A
|
75586A
75586-90A00 Moulding, Roof Drip, Rear[08.1987 - 01.1990] FJ62 |
75586-90A00 |
from US $22.21 |
||
|
75596
|
75596
75596-90A00
Joint, Roof Drip Side Finish Moulding
[08.1987 - 01.1990] FJ62 |
75596-90A00 |
— | ||
| replacement | |||||
|
75596
|
75596
75502-60010 Cover, Roof Drip Side Finish Moulding Joint, Rh[08.1987 - 01.1990] FJ62 |
75502-60010 |
from US $2.81 |
||
|
75597
|
75597
75596-90A00
Joint, Roof Drip Side Finish Moulding
[08.1987 - 01.1990] FJ62 |
75596-90A00 |
— | ||
| replacement | |||||
|
75597
|
75597
75502-60010 Cover, Roof Drip Side Finish Moulding Joint, Rh[08.1987 - 01.1990] FJ62 |
75502-60010 |
from US $2.81 |
||
|
75641
|
75641
75641-90A00
Moulding, Quarter Window, Outside Front Rh
[08.1987 - 01.1990] FJ62 |
75641-90A00 |
— | ||
|
75642
|
75642
75642-90A00
Moulding, Quarter Window, Outside Front Lh
[08.1987 - 01.1990] FJ62 |
75642-90A00 |
— | ||
|
75645
|
75645
75645-90A00
Moulding, Quarter Window, Outside Rear Rh
[08.1987 - 01.1990] FJ62 |
75645-90A00 |
— | ||
|
75646
|
75646
75646-90A00
Moulding, Quarter Window, Outside Rear Lh
[08.1987 - 01.1990] FJ62 |
75646-90A00 |
— | ||
|
75710
|
75710
75710-90A02
Moulding Assy, Front Door Belt, Rh
[08.1987 - 01.1990] FJ62 |
75710-90A02 |
— | ||
|
75720
|
75720
75720-90A02
Moulding Assy, Front Door Belt, Lh
[08.1987 - 01.1990] FJ62 |
75720-90A02 |
— | ||
|
75730
|
75730
75730-90A01
Moulding Assy, Rear Door Belt, Rh
[08.1987 - 01.1990] FJ62 |
75730-90A01 |
— | ||
|
75740
|
75740
75740-90A01
Moulding Assy, Rear Door Belt, Lh
[08.1987 - 01.1990] FJ62 |
75740-90A01 |
— | ||
|
75751C
|
75751C
75751-90A00
Moulding, Front Door Window Frame, Front Rh
[08.1987 - 01.1990] FJ62 |
75751-90A00 |
— | ||
|
75752C
|
75752C
75752-90A00
Moulding, Front Door Window Frame, Front Lh
[08.1987 - 01.1990] FJ62 |
75752-90A00 |
— | ||
|
75755C
|
75755C
75755-90A00
Moulding, Front Door Window Frame, Rear Rh
[08.1987 - 01.1990] FJ62 |
75755-90A00 |
— | ||
|
75756C
|
75756C
75756-90A00
Moulding, Front Door Window Frame, Rear Lh
[08.1987 - 01.1990] FJ62 |
75756-90A00 |
— | ||
|
75761A
|
75761A
75761-90A00
Moulding, Rear Door Window Frame, Front Rh
[08.1987 - 01.1990] FJ62 |
75761-90A00 |
— | ||
|
75762A
|
75762A
75762-90A00
Moulding, Rear Door Window Frame, Front Lh
[08.1987 - 01.1990] FJ62 |
75762-90A00 |
— | ||
|
75763A
|
75763A
75763-90A00
Moulding, Rear Door Window Frame, Upper Rh
[08.1987 - 01.1990] FJ62 |
75763-90A00 |
— | ||
|
75764A
|
75764A
75764-90A00
Moulding, Rear Door Window Frame, Upper Lh
[08.1987 - 01.1990] FJ62 |
75764-90A00 |
— | ||
|
75765A
|
75765A
75765-90A00
Moulding, Rear Door Window Frame, Rear Rh
[08.1987 - 01.1990] FJ62 |
75765-90A00 |
— | ||
|
75766A
|
75766A
75766-90A00
Moulding, Rear Door Window Frame, Rear Lh
[08.1987 - 01.1990] FJ62 |
75766-90A00 |
— | ||
|
75851
|
75851
75850-69015
Moulding, Rocker Panel, Rh
[08.1987 - 01.1990] FJ62 |
75850-69015 |
— | ||
|
75852
|
75852
75860-69015
Moulding, Rocker Panel, Lh
[08.1987 - 01.1990] FJ62 |
75860-69015 |
— | ||
|
75867A
|
75867A
75867-20020 Clip (For Rocker Panel Moulding Set)[08.1987 - 01.1990] FJ62 |
75867-20020 |
from US $2.11 |
||
|
6777220021
|
6777220021
67772-20021 Cap, Front Door Trim Retainer |
67772-20021 |
from US $0.93 |
||
|
9018904001
|
9018904001
90189-04001 Grommet |
90189-04001 |
US $3.23 |
||
|
9353064020
|
9353064020
93530-64020 New Genuine Part |
93530-64020 |
US $0.44 |
||
