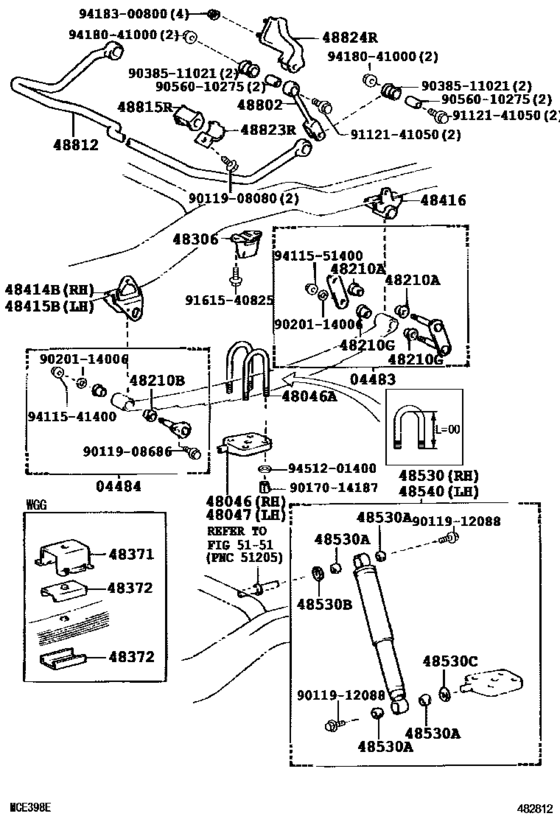

Rear Spring & Shock Absorber ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGV
- ENGINE
- 3FE
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-60050
Shackle Kit, Rear Spring
[08.1987 - 01.1990] FJ62 |
04483-60050 |
— | ||
| replacement | |||||
|
04483
|
04483
04483-60101 Shackle Kit, Rear Spring[08.1987 - 01.1990] FJ62 |
04483-60101 |
US $96.76 |
||
|
04484
|
04484
04482-60040 Pin Kit, Front Spring[08.1987 - 01.1990] FJ62 |
04482-60040 |
US $44.18 |
||
|
48046
|
48046
48046-60052
Seat Sub-Assy, Spring U Bolt, Rh
[08.1987 - 01.1990] FJ62 |
48046-60052 |
— | ||
|
48046A
|
48046A
90117-14032 Bolt, U(For Rear Spring)[08.1987 - 01.1990] FJ62 L=200 |
90117-14032 |
US $25.37 |
||
|
48046A
|
48046A
90117-14180 Bolt, U(For Rear Spring)[08.1987 - 01.1990] FJ62 L=205 |
90117-14180 |
US $25.19 |
||
| replacement | |||||
|
48046A
|
48046A
90117-14002 Bolt, U(For Rear Spring)U(FOR REAR SPRING) [08.1987 - 01.1990] FJ62 L=205 |
90117-14002 |
US $30.41 |
||
|
48047
|
48047
48047-60052
Seat Sub-Assy, Spring U Bolt, Lh
[08.1987 - 01.1990] FJ62 |
48047-60052 |
— | ||
|
48210A
|
48210A
90389-18002 Bush(For Spring Shackle, Pin)[08.1987 - 01.1990] FJ62 |
90389-18002 |
US $7.35 |
||
|
48210B
|
48210B
90389-18002 Bush(For Spring Shackle, Pin)[08.1987 - 01.1990] FJ62 |
90389-18002 |
US $7.35 |
||
|
48210G
|
48210G
90389-18002 Bush(For Spring Shackle, Pin)[08.1987 - 01.1990] FJ62 |
90389-18002 |
US $7.35 |
||
|
48306
|
48306
48306-60030 Bumper Sub-Assy, Rear Spring[08.1987 - 01.1990] FJ62 |
48306-60030 |
US $21.84 |
||
|
48371
|
48371
48371-60050
Retainer, Rear Spring Pad
[08.1987 - 01.1990] FJ62 |
48371-60050 |
— | ||
|
48372
|
48372
48372-23030 Pad, Rear Spring[08.1987 - 01.1990] FJ62 |
48372-23030 |
US $15.41 |
||
|
48414B
|
48414B
48414-60042
Bracket Sub-Assy, Rear Spring, Front Rh
[08.1987 - 01.1990] FJ62 |
48414-60042 |
— | ||
|
48415B
|
48415B
48415-60042
Bracket Sub-Assy, Rear Spring, Front Lh
[08.1987 - 01.1990] FJ62 |
48415-60042 |
— | ||
|
48416
|
48416
48416-60030
Bracket Sub-Assy, Rear Spring, Rear Rh
[08.1987 - 01.1990] FJ62 |
48416-60030 |
— | ||
|
48530
|
48530
48531-69105 Absorber Assy, Shock, Rear Rh[08.1987 - 01.1990] FJ62 MARK 48531-60190 |
48531-69105 |
US $97.55 |
||
| replacement | |||||
|
48530
|
48530
48531-69106 Absorber Assy, Shock, Rear Rh[08.1987 - 01.1990] FJ62 MARK 48531-60190 |
48531-69106 |
US $94.35 |
||
|
48530A
|
48530A
90385-19057 Bush(For Front Shock Absorber)[08.1987 - 01.1990] FJ62 |
90385-19057 |
US $7.17 |
||
|
48530B
|
48530B
90948-03011 Washer, Front Shock Absorber Cushion, No.1[08.1987 - 01.1990] FJ62 |
90948-03011 |
US $2.33 |
||
|
48530C
|
48530C
90948-03011 Washer, Front Shock Absorber Cushion, No.1[08.1987 - 01.1990] FJ62 |
90948-03011 |
US $2.33 |
||
|
48540
|
48540
48541-69025 Absorber Assy, Shock, Rear Lh[08.1987 - 01.1990] FJ62 MARK 48541-60050 |
48541-69025 |
US $97.55 |
||
| replacement | |||||
|
48540
|
48540
48541-69026 Absorber Assy, Shock, Rear Lh[08.1987 - 01.1990] FJ62 MARK 48541-60050 |
48541-69026 |
US $97.55 |
||
|
48802
|
48802
48802-60020 Link Sub-Assy, Stabilizer[08.1987 - 01.1990] FJ62 |
48802-60020 |
US $16.97 |
||
|
48812
|
48812
48812-60040
Bar, Stabilizer, Rear
[08.1987 - 01.1990] FJ62 |
48812-60040 |
— | ||
|
48815R
|
48815R
48815-30050 Bush, Front Stabilizer Bar, No.1[08.1987 - 01.1990] FJ62 |
48815-30050 |
US $6.81 |
||
|
48823R
|
48823R
48823-27010 Cover, Stabilizer Link(For Front)[08.1987 - 01.1990] FJ62 |
48823-27010 |
US $6.99 |
||
|
48824R
|
48824R
48825-60031
Bracket, Stabilizer(For Rear)
[08.1987 - 01.1990] FJ62 |
48825-60031 |
— | ||
|
9011908080
|
9011908080
90119-08080 BOLT |
90119-08080 |
from US $1.61 |
||
|
9011908686
|
9011908686
90119-08686 BOLT |
90119-08686 |
US $1.61 |
||
|
9011912088
|
9011912088
90119-12088 BOLT |
90119-12088 |
US $3.40 |
||
|
9017014187
|
9017014187
90170-14187 NUT |
90170-14187 |
US $3.23 |
||
|
9020114006
|
9020114006
90201-14006 New Genuine Part |
90201-14006 |
US $1.97 |
||
|
9038511021
|
9038511021
90385-11021 Bush, Stabilizer Link |
90385-11021 |
US $4.30 |
||
|
9056010275
|
9056010275
90560-10275 Spacer(For Rear Stabilizer Bar) |
90560-10275 |
US $2.51 |
||
|
9112141050
|
9112141050
91121-41050 BOLT |
91121-41050 |
US $4.12 |
||
|
9161540825
|
9161540825
91615-40825
Bolt(for Intake Manifold To Exhaust Manifold)
|
91615-40825 |
— | ||
| replacement | |||||
|
9161540825
|
9161540825
91611-60822 Bolt |
91611-60822 |
US $3.05 |
||
|
9411541400
|
9411541400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $1.22 |
||
|
9411551400
|
9411551400
94115-51400 Nut, Lock |
94115-51400 |
US $3.58 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.79 |
||
|
9418300800
|
9418300800
94183-00800 New Genuine Part |
94183-00800 |
US $0.52 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.79 |
||
