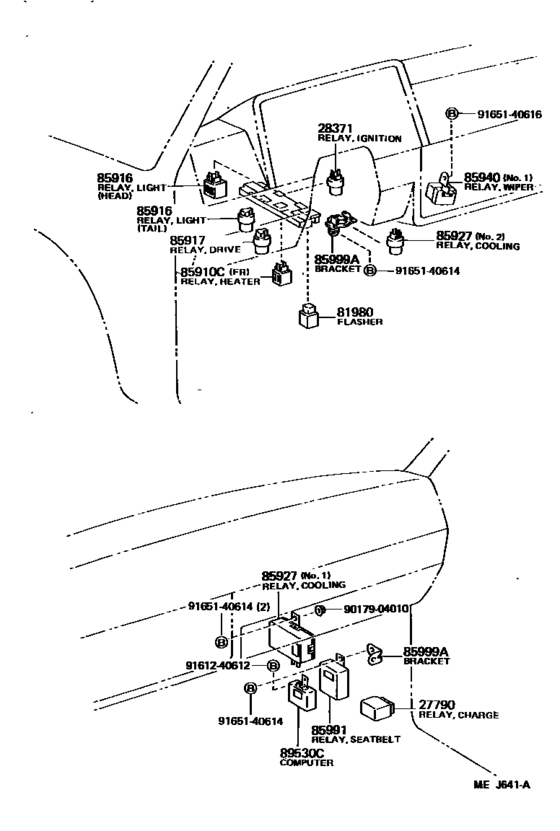

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Frame
- FJ62
- body
- WGV
- ENGINE
- 3FE
- DESTINATION
- USA
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 08.1988
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27790
|
27790
27790-13010
Relay Assy, Charge Lamp
[08.1987 - 01.1990] 3FE..FJ62 |
27790-13010 |
— | ||
|
28371
|
28371
90987-02004 Relay Assy, Starter[08.1987 - 01.1990] 3FE..FJ62 |
90987-02004 |
from US $27.38 |
||
| replacement | |||||
|
28371
|
28371
909870200483 [08.1987 - 01.1990] 3FE..FJ62 |
909870200483 |
US $53.75 |
||
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[08.1987 - 01.1990] FJ62 |
81980-16010 |
US $134.48 |
||
|
85910C
|
85910C
85913-30020
Relay, Ignition, No.1
[08.1987 - 03.1988] FJ62 FRONT |
85913-30020 |
— | ||
|
85910C
|
85910C
88630-14010 Relay Assy (For Heater Blower Motor)[08.1987 - 01.1990] FJ62 REAR |
88630-14010 |
US $29 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[03.1988 - 01.1990] FJ62 FRONT |
90987-04002 |
from US $23.67 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[08.1987 - 01.1990] FJ62 TAIL |
90987-01003 |
from US $34.73 |
||
|
85916
|
85916
90987-02006 Relay[08.1987 - 01.1990] FJ62 HEAD |
90987-02006 |
from US $26.07 |
||
|
85917
|
85917
90987-03001 Relay[08.1987 - 01.1990] FJ62 |
90987-03001 |
from US $31.77 |
||
|
85927
|
85927
85927-60040 Relay, Cooling FanCOOLING FAN [08.1987 - 01.1990] FJ62 NO.1 |
85927-60040 |
US $401.86 |
||
|
85927
|
85927
90987-02004 Relay Assy, Starter[08.1987 - 01.1990] FJ62 NO.2 |
90987-02004 |
from US $27.38 |
||
| replacement | |||||
|
85927
|
85927
909870200483 [08.1987 - 01.1990] FJ62 NO.2 |
909870200483 |
US $53.75 |
||
|
85940
|
85940
85940-90A09
Relay Assy, Windshield Wiper
[08.1987 - 01.1990] FJ62 NO.1 |
85940-90A09 |
— | ||
|
85940
|
85940
85940-90A10
Relay Assy, Windshield Wiper
[08.1987 - 01.1990] FJ62 NO.3 |
85940-90A10 |
— | ||
|
85991
|
85991
85991-22020 Relay Or Computer Assy, Seat Belt WarningSEAT BELT WARNING [08.1987 - 01.1990] FJ62 |
85991-22020 |
US $154.34 |
||
|
85999A
|
85999A
85999-12050
Bracket, Main Relay
[08.1987 - 01.1990] FJ62 COOLING FAN RELAY |
85999-12050 |
— | ||
|
85999A
|
85999A
85999-89101 Bracket Sub-Assy, Flasher[08.1987 - 01.1990] FJ62 CHAGE LAMP RELAY |
85999-89101 |
US $2.77 |
||
|
89530C
|
89530C
89530-60020
Computer Assy, Transmission Control
[08.1987 - 01.1990] FJ62 |
89530-60020 |
— | ||
|
9017904010
|
9017904010
90179-04010
New Genuine Part
|
90179-04010 |
— | ||
|
9161240612
|
9161240612
91612-40612 Bolt(for Dust Cover To Steering Knuckle Arm Setting) |
91612-40612 |
US $2.18 |
||
| replacement | |||||
|
9161240612
|
9161240612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
