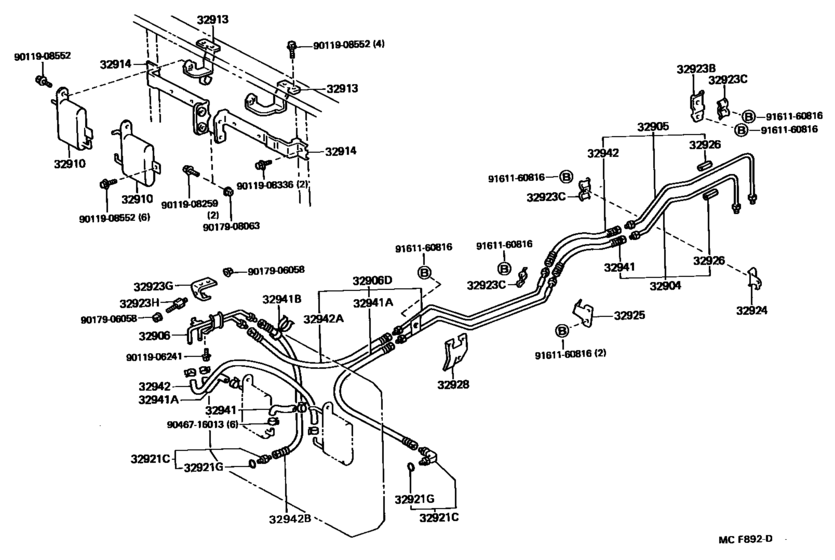

Oil Cooler & Tube (Atm) ([08.1987 - ] AIR COOLED TYPE OIL COOLER (8708- )FJ62..4FC..ARL) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- General
- Frame
- FJ62
- grade
- VX
- Roof
- HRF
- ENGINE
- 3F
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32904
|
32904
32904-60012 Tube Sub-Assy, Oil Cooler Inlet, No.1[08.1987 - 03.1992] FJ62..4FC |
32904-60012 |
US $133.95 |
||
| replacements | |||||
|
32904
|
32904
32921-60012
Tube, Oil Cooler Inlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32921-60012 |
— | ||
|
32904
|
32904
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1987 - 03.1992] FJ62..4FC |
32926-30020 |
US $3.05 |
||
|
32904
|
32904
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32943-60010 |
— | ||
|
32905
|
32905
32905-60012 Tube Sub-Assy, Oil Cooler Outlet, No.1[08.1987 - 03.1992] FJ62..4FC |
32905-60012 |
US $133.95 |
||
| replacements | |||||
|
32905
|
32905
32922-60012
Tube, Oil Cooler Outlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32922-60012 |
— | ||
|
32905
|
32905
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1987 - 03.1992] FJ62..4FC |
32926-30020 |
US $3.05 |
||
|
32905
|
32905
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32943-60010 |
— | ||
|
32906
|
32906
32906-60050 Tube Sub-Assy, Oil CoolerOIL COOLER [08.1987 - 01.1990] FJ62..4FC..ARL |
32906-60050 |
US $33.92 |
||
|
32906D
|
32906D
32906-60012 Tube Sub-Assy, Oil Cooler, No.2[08.1987 - 03.1992] FJ62..4FC |
32906-60012 |
US $218.40 |
||
| replacements | |||||
|
32906D
|
32906D
32907-60011
Tube Sub-assy, Oil Cooler Outlet, No.2
[08.1987 - 03.1992] FJ62..4FC |
32907-60011 |
— | ||
|
32906D
|
32906D
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1987 - 03.1992] FJ62..4FC |
32926-30020 |
US $3.05 |
||
|
32906D
|
32906D
32942-60010
Hose(For Oil Cooler Outlet)
[08.1987 - 03.1992] FJ62..4FC |
32942-60010 |
— | ||
|
32906D
|
32906D
32942-60030
Hose, Oil Cooler Inlet, No.2
[08.1987 - 03.1992] FJ62..4FC |
32942-60030 |
— | ||
|
32906D
|
32906D
32906-60070 Tube Sub-Assy, Oil Cooler, No.2[07.1988 - 01.1990] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32906-60070 |
US $232.96 |
||
| replacements | |||||
|
32906D
|
32906D
32907-60011
Tube Sub-assy, Oil Cooler Outlet, No.2
[07.1988 - 01.1990] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32907-60011 |
— | ||
|
32906D
|
32906D
32926-30020 Cushion, Oil Cooler Tube(Atm)[07.1988 - 01.1990] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32926-30020 |
US $3.05 |
||
|
32906D
|
32906D
32942-60030
Hose, Oil Cooler Inlet, No.2
[07.1988 - 01.1990] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32942-60030 |
— | ||
|
32906D
|
32906D
32942-60060 Hose, Oil Cooler Outlet, No.2OIL COOLER OUTLET, NO.2 [07.1988 - 01.1990] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32942-60060 |
US $101.92 |
||
|
32910
|
32910
32910-60040 Cooler Assy, OilOIL [08.1987 - 01.1990] FJ62,HJ61..4FC..ARL RH |
32910-60040 |
US $537.26 |
||
|
32910
|
32910
32910-60050
Cooler Assy, Oil
[08.1987 - 01.1990] FJ62..4FC..ARL LH |
32910-60050 |
— | ||
|
32913
|
32913
32913-60030 Bracket, Oil CoolerOIL COOLER [08.1987 - 01.1990] FJ62,HJ61..4FC..ARL RH |
32913-60030 |
US $15.87 |
||
|
32913
|
32913
32913-60040 Bracket, Oil CoolerOIL COOLER [08.1987 - 01.1990] HJ61..4FC CTR; FJ62..4FC..ARL LH |
32913-60040 |
US $15.87 |
||
|
32914
|
32914
32914-60030 Stay, Oil CoolerOIL COOLER [08.1987 - 01.1990] FJ62,HJ61..4FC..ARL RH |
32914-60030 |
US $30.14 |
||
|
32914
|
32914
32914-60040 Stay, Oil CoolerOIL COOLER [08.1987 - 01.1990] FJ62..4FC..ARL LH |
32914-60040 |
US $33.63 |
||
|
32921C
|
32921C
90404-16022 Union(For Oil Cooler Tube)[08.1987 - 11.1987] FJ62..4FC INLET |
90404-16022 |
US $7.13 |
||
|
32921C
|
32921C
90407-14005
Union(For Oil Cooler Tube)
[08.1987 - 03.1992] FJ62,HJ61..4FC OUTLET |
90407-14005 |
— | ||
|
32921C
|
32921C
90407-16013 Union(For Oil Cooler Tube)[11.1987 - 03.1992] FJ62..4FC INLET |
90407-16013 |
US $8.15 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[08.1987 - 03.1992] FJ62,HJ61..4FC |
90301-11006 |
from US $2.43 |
||
|
32923B
|
32923B
32923-36010 Clamp, Automatic Transmission Oil Cooler Tube, No.1[08.1987 - 03.1992] FJ62,HJ61..4FC |
32923-36010 |
US $8.74 |
||
|
32923C
|
32923C
90462-12038
Clamp, Automatic Transmission Oil Cooler Tube, No.4
[08.1987 - 03.1992] FJ62,HJ61..4FC |
90462-12038 |
— | ||
|
32923G
|
32923G
32923-60040 Clamp, Automatic Transmission Oil Cooler Tube, No.8AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.8 [08.1987 - 01.1990] FJ62..4FC..ARL |
32923-60040 |
US $14.56 |
||
|
32923H
|
32923H
88467-14040 Cushion, Cooler Condenser, No.1[08.1987 - 01.1990] FJ62..4FC..ARL |
88467-14040 |
from US $2.06 |
||
|
32924
|
32924
32924-60011 Clamp, Oil Cooler Tube, No.2[08.1987 - 03.1992] FJ62..4FC |
32924-60011 |
US $32.61 |
||
|
32925
|
32925
32925-60030 Clamp, Oil Cooler Tube, No.3[08.1987 - 03.1992] FJ62..4FC |
32925-60030 |
US $32.61 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1987 - 03.1992] FJ62..4FC L=35,ID=10 |
32926-30020 |
US $3.05 |
||
|
32928
|
32928
32928-60011 Clamp, Flexible Hose, No.1[08.1987 - 03.1992] FJ62..4FC |
32928-60011 |
US $27.96 |
||
|
32941
|
32941
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32943-60010 |
— | ||
|
32941
|
32941
32943-60030 Hose, Oil Cooler Inlet, No.1OIL COOLER INLET, NO.1 [08.1987 - 07.1989] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32943-60030 |
US $25.33 |
||
| replacement | |||||
|
32941
|
32941
32943-60031 Hose, Oil Cooler Inlet, No.1OIL COOLER INLET, NO.1 [08.1987 - 07.1989] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32943-60031 |
US $25.33 |
||
|
32941
|
32941
32943-60031 Hose, Oil Cooler Inlet, No.1OIL COOLER INLET, NO.1 [07.1989 - 01.1990] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32943-60031 |
US $25.33 |
||
|
32941A
|
32941A
32942-60030
Hose, Oil Cooler Inlet, No.2
[08.1987 - 03.1992] FJ62..4FC |
32942-60030 |
— | ||
|
32941A
|
32941A
32943-60070 Hose, Oil Cooler Inlet, No.2OIL COOLER INLET, NO.2 [08.1987 - 07.1989] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32943-60070 |
US $32.18 |
||
| replacement | |||||
|
32941A
|
32941A
32943-60071 Hose, Oil Cooler Inlet, No.2OIL COOLER INLET, NO.2 [08.1987 - 07.1989] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32943-60071 |
US $31.74 |
||
|
32941A
|
32941A
32943-60071 Hose, Oil Cooler Inlet, No.2OIL COOLER INLET, NO.2 [07.1989 - 01.1990] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32943-60071 |
US $31.74 |
||
|
32941B
|
32941B
90464-00527 Clamp(For Oil Cooler Tube)[07.1988 - 01.1990] FJ62..4FC..ARL |
90464-00527 |
US $4.22 |
||
|
32942
|
32942
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1987 - 03.1992] FJ62..4FC |
32943-60010 |
— | ||
|
32942
|
32942
32943-60060 Hose, Oil Cooler Outlet, No.1OIL COOLER OUTLET, NO.1 [08.1987 - 07.1989] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32943-60060 |
US $51.83 |
||
| replacement | |||||
|
32942
|
32942
32943-60061 Hose, Oil Cooler Outlet, No.1OIL COOLER OUTLET, NO.1 [08.1987 - 07.1989] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32943-60061 |
US $52.12 |
||
|
32942
|
32942
32943-60061 Hose, Oil Cooler Outlet, No.1OIL COOLER OUTLET, NO.1 [07.1989 - 01.1990] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32943-60061 |
US $52.12 |
||
|
32942A
|
32942A
32942-60010
Hose(For Oil Cooler Outlet)
[08.1987 - 03.1992] FJ62..4FC |
32942-60010 |
— | ||
|
32942A
|
32942A
32942-60030
Hose, Oil Cooler Inlet, No.2
[08.1987 - 07.1988] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32942-60030 |
— | ||
|
32942A
|
32942A
32942-60060 Hose, Oil Cooler Outlet, No.2OIL COOLER OUTLET, NO.2 [07.1988 - 01.1990] FJ62..4FC..ARL W(AIR COOLED TYPE OIL COOLER) |
32942-60060 |
US $101.92 |
||
|
32942B
|
32942B
32942-60030
Hose, Oil Cooler Inlet, No.2
[08.1987 - 07.1988] FJ62..4FC..ARL |
32942-60030 |
— | ||
|
32942B
|
32942B
32942-60050 Hose, Oil Cooler Outlet, No.3OIL COOLER OUTLET, NO.3 [07.1988 - 01.1990] FJ62..4FC..ARL |
32942-60050 |
US $196.56 |
||
| replacement | |||||
|
32942B
|
32942B
32942-60060 Hose, Oil Cooler Outlet, No.2OIL COOLER OUTLET, NO.2 [07.1988 - 01.1990] FJ62..4FC..ARL |
32942-60060 |
US $101.92 |
||
|
9011906241
|
9011906241
90119-06241
New Genuine Part
|
90119-06241 |
— | ||
| replacement | |||||
|
9011906241
|
9011906241
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
9011908259
|
9011908259
90119-08259 New Genuine Part |
90119-08259 |
US $1.60 |
||
|
9011908336
|
9011908336
90119-08336 BOLT |
90119-08336 |
US $2.87 |
||
|
9011908552
|
9011908552
90119-08552 New Genuine Part |
90119-08552 |
US $1.61 |
||
|
9017906058
|
9017906058
90179-06058
Nut, Wire Adjusting, No.1
|
90179-06058 |
— | ||
| replacement | |||||
|
9017906058
|
9017906058
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9017908063
|
9017908063
90179-08063 NUT |
90179-08063 |
US $2.87 |
||
|
9046716013
|
9046716013
90467-16013
Clip(For Oil Return Hose)
|
90467-16013 |
— | ||
| replacement | |||||
|
9046716013
|
9046716013
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.26 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
