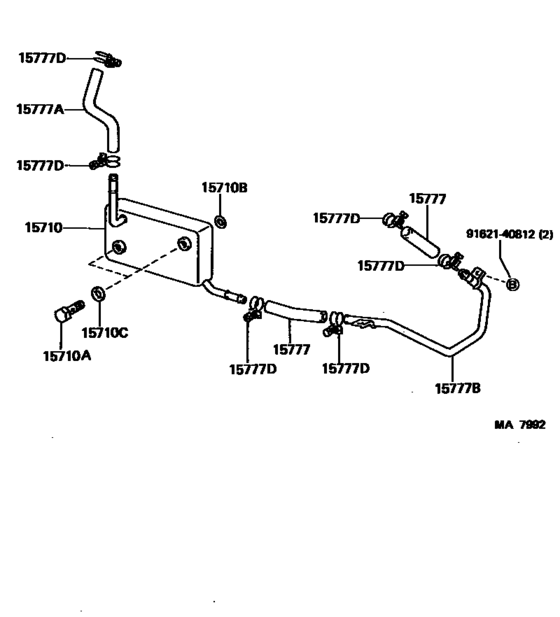

Engine Oil Cooler ([11.1984 - 10.1985] (8411-8510)3F..CBU) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- FJ62
- body
- WGV
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15710
|
15710
15710-61010 Cooler Assy, Oil[08.1980 - 10.1985] 2F,3F..FJ6#..CBU |
15710-61010 |
US $781.87 |
||
|
15710A
|
15710A
90401-18083
Bolt, Union(For Oil Cooler)
[10.1982 - 10.1985] 2F,3F..FJ6# |
90401-18083 |
— | ||
|
15710B
|
15710B
90301-21176 Ring, O(For Oil Cooler)[08.1980 - 10.1985] 2F,3F..FJ6#; 2H..HJ60 |
90301-21176 |
from US $5.13 |
||
|
15710C
|
15710C
90430-18012 Gasket(For Oil Pump Outlet Pipe)[08.1980 - 10.1985] 2F,3F..FJ6# |
90430-18012 |
US $3.05 |
||
|
15777
|
15777
99556-30105
Hose, Oil Cooler
[11.1984 - 08.1985] 3F..FJ62 ＊Ｈ，Ｌ＝１０５,PIPE TO WATER PUMP |
99556-30105 |
— | ||
| replacement | |||||
|
15777
|
15777
99556-30200 Hose, Heater Water, Inlet D[11.1984 - 08.1985] 3F..FJ62 ＊Ｈ，Ｌ＝１０５,PIPE TO WATER PUMP |
99556-30200 |
US $5.82 |
||
|
15777
|
15777
99556-30140 Hose, Oil CoolerOIL COOLER [11.1984 - 08.1985] 3F..FJ62 ＊Ｈ，Ｌ＝１４０,PIPE TO OIL COOLER |
99556-30140 |
US $6.12 |
||
| replacement | |||||
|
15777
|
15777
99556-30200 Hose, Heater Water, Inlet D[11.1984 - 08.1985] 3F..FJ62 ＊Ｈ，Ｌ＝１４０,PIPE TO OIL COOLER |
99556-30200 |
US $5.82 |
||
|
15777
|
15777
99556-30210
Hose, Oil Cooler
[08.1985 - 10.1985] 3F..FJ62 ＊Ｈ，Ｌ＝２１０ |
99556-30210 |
— | ||
| replacement | |||||
|
15777
|
15777
99556-30300 Hose, Heater Water, Inlet A[08.1985 - 10.1985] 3F..FJ62 ＊Ｈ，Ｌ＝２１０ |
99556-30300 |
US $11.47 |
||
|
15777A
|
15777A
15777-61030 Hose, Oil Cooler[11.1984 - 10.1985] 3F..FJ62 |
15777-61030 |
US $28.06 |
||
|
15777B
|
15777B
15771-61020
Pipe, Oil Cooler
[11.1984 - 10.1985] 3F..FJ62 |
15771-61020 |
— | ||
|
15777D
|
15777D
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)[04.1981 - 10.1985] 2F,3F..FJ6# |
96112-10250 |
from US $4.30 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
