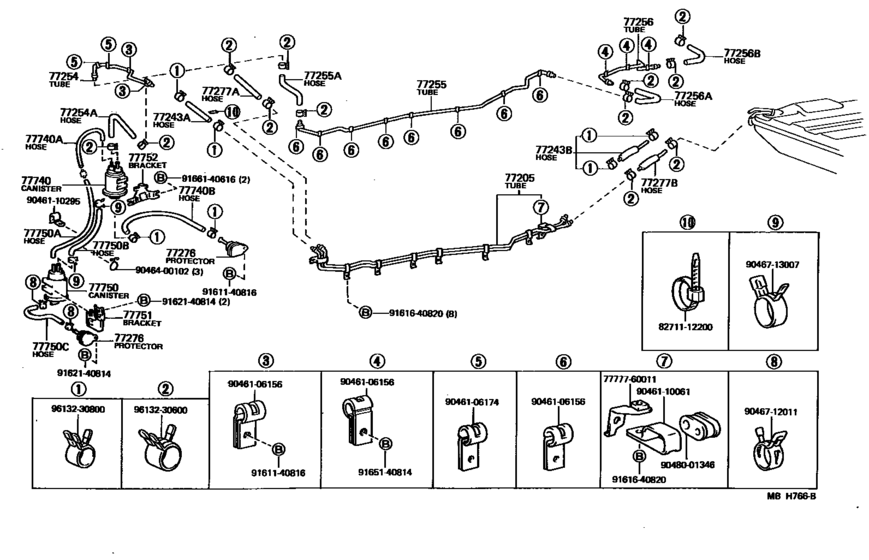

Fuel Tank & Tube ([11.1984 - ] (8411- )FJ62..CBU) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- FJ62
- body
- WGV
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77205
|
77205
77205-60062 Tube Sub-Assy, Fuel Main[11.1984 - 08.1987] BJ61,FJ62 |
77205-60062 |
US $155.79 |
||
|
77243A
|
77243A
95332-08040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝３８０，内径＝８ |
95332-08040 |
— | ||
| replacement | |||||
|
77243A
|
77243A
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝３８０，内径＝８ |
95337-08040 |
US $9.32 |
||
|
77243A
|
77243A
95333-08040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[02.1987 - 08.1987] FJ62 ＊Ｈ，Ｌ＝３８０，内径＝８ |
95333-08040 |
US $9.32 |
||
| replacement | |||||
|
77243A
|
77243A
95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)[02.1987 - 08.1987] FJ62 ＊Ｈ，Ｌ＝３８０，内径＝８ |
95337-08040 |
US $9.32 |
||
|
77243B
|
77243B
77250-60050
Hose, Fuel, No.2 (For Main Tube, No.3)
[11.1984 - 08.1987] BJ61,FJ62,HJ6#..CBU |
77250-60050 |
— | ||
|
77254
|
77254
77263-60030
Tube, Fuel Emission, No.1
[08.1980 - 08.1987] FJ6# |
77263-60030 |
— | ||
|
77254A
|
77254A
95332-06030
Hose(For Carburetor)
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝３００ |
95332-06030 |
— | ||
| replacement | |||||
|
77254A
|
77254A
95333-06030
Hose, Fuel
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝３００ |
95333-06030 |
— | ||
|
77254A
|
77254A
95333-06030
Hose, Fuel
[02.1987 - 08.1987] FJ62 ＊Ｈ，Ｌ＝３００ |
95333-06030 |
— | ||
|
77255
|
77255
77261-60031
Tube, Fuel Emission, No.2
[11.1984 - 10.1985] FJ62 |
77261-60031 |
— | ||
|
77255
|
77255
77261-60070
Tube, Fuel Emission, No.2
[10.1985 - 08.1987] FJ62 |
77261-60070 |
— | ||
|
77255A
|
77255A
95332-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1980 - 02.1987] FJ6#..CBU ＊Ｈ，Ｌ＝１８０ |
95332-06020 |
— | ||
| replacement | |||||
|
77255A
|
77255A
95337-06020 Hose, Differential Pressure Control[08.1980 - 02.1987] FJ6#..CBU ＊Ｈ，Ｌ＝１８０ |
95337-06020 |
from US $10.21 |
||
|
77255A
|
77255A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[02.1987 - 08.1987] FJ62..CBU ＊Ｈ，Ｌ＝１８０; FJ62..IV4 ＊Ｈ，Ｌ＝２００ |
95333-06020 |
— | ||
| replacement | |||||
|
77255A
|
77255A
95337-06020 Hose, Differential Pressure Control[02.1987 - 08.1987] FJ62..CBU ＊Ｈ，Ｌ＝１８０; FJ62..IV4 ＊Ｈ，Ｌ＝２００ |
95337-06020 |
from US $10.21 |
||
|
77256
|
77256
77244-60120 Tube, Fuel Emission, No.3[08.1980 - 08.1987] FJ6# |
77244-60120 |
US $12.81 |
||
|
77256A
|
77256A
95332-06030
Hose(For Carburetor)
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝２４０ |
95332-06030 |
— | ||
| replacement | |||||
|
77256A
|
77256A
95333-06030
Hose, Fuel
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝２４０ |
95333-06030 |
— | ||
|
77256A
|
77256A
95333-06030
Hose, Fuel
[02.1987 - 08.1987] FJ62 ＊Ｈ，Ｌ＝２４０ |
95333-06030 |
— | ||
|
77256B
|
77256B
95332-06030
Hose(For Carburetor)
[08.1980 - 02.1987] BJ6#,FJ6#,HJ6# ＊Ｈ，Ｌ＝２４０ |
95332-06030 |
— | ||
| replacement | |||||
|
77256B
|
77256B
95333-06030
Hose, Fuel
[08.1980 - 02.1987] BJ6#,FJ6#,HJ6# ＊Ｈ，Ｌ＝２４０ |
95333-06030 |
— | ||
|
77256B
|
77256B
95333-06030
Hose, Fuel
[02.1987 - 08.1987] FJ62,HJ6# ＊Ｈ，Ｌ＝２４０ |
95333-06030 |
— | ||
|
77277A
|
77277A
23273-61020 Hose, Fuel, No.1(For Return Tube, No.1)FUEL, NO.1(FOR RETURN TUBE, NO.1) [10.1985 - 08.1987] FJ62 |
23273-61020 |
US $71.34 |
||
| replacement | |||||
|
77277A
|
77277A
77250-60070 Hose Assy, Fuel Return[10.1985 - 08.1987] FJ62 |
77250-60070 |
US $84.45 |
||
|
77277A
|
77277A
77250-61020 Hose, Fuel, No.1(For Return Tube, No.1)FUEL, NO.1(FOR RETURN TUBE, NO.1) [08.1980 - 10.1985] FJ6# |
77250-61020 |
US $59.26 |
||
|
77277B
|
77277B
95332-06030
Hose(For Carburetor)
[11.1984 - 02.1987] BJ61,FJ62..CBU ＊Ｈ，Ｌ＝２６０ |
95332-06030 |
— | ||
| replacement | |||||
|
77277B
|
77277B
95333-06030
Hose, Fuel
[11.1984 - 02.1987] BJ61,FJ62..CBU ＊Ｈ，Ｌ＝２６０ |
95333-06030 |
— | ||
|
77277B
|
77277B
95333-06030
Hose, Fuel
[02.1987 - 08.1987] FJ62..CBU ＊Ｈ，Ｌ＝２６０ |
95333-06030 |
— | ||
|
77740
|
77740
77704-60050
Canister Assy, Charcoal
[03.1981 - 08.1987] FJ6# |
77704-60050 |
— | ||
|
77740A
|
77740A
95411-10660 Hose, Fuel, No.1(For Charcoal Canister)[11.1984 - 08.1987] FJ62 ＊Ｈ，Ｌ＝３３０，マーク＝＃６ |
95411-10660 |
US $12.23 |
||
| replacement | |||||
|
77740A
|
77740A
90999-92003
Hose, Breather (For Transfer Case)
[11.1984 - 08.1987] FJ62 ＊Ｈ，Ｌ＝３３０，マーク＝＃６ |
90999-92003 |
— | ||
|
77740B
|
77740B
95332-08030
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝２８０，内径＝７．６ |
95332-08030 |
— | ||
| replacement | |||||
|
77740B
|
77740B
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1980 - 02.1987] FJ6# ＊Ｈ，Ｌ＝２８０，内径＝７．６ |
95333-08030 |
US $11.83 |
||
|
77740B
|
77740B
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[02.1987 - 08.1987] FJ62 ＊Ｈ，Ｌ＝２８０ |
95333-08030 |
US $11.83 |
||
|
77750
|
77750
77704-60070
Canister Assy, Charcoal
[11.1984 - 08.1987] FJ62 |
77704-60070 |
— | ||
|
77750A
|
77750A
95411-10660 Hose, Fuel, No.1(For Charcoal Canister)[11.1984 - 08.1987] FJ62 ＊Ｈ，Ｌ＝６００，マーク＝＃６ |
95411-10660 |
US $12.23 |
||
| replacement | |||||
|
77750A
|
77750A
90999-92003
Hose, Breather (For Transfer Case)
[11.1984 - 08.1987] FJ62 ＊Ｈ，Ｌ＝６００，マーク＝＃６ |
90999-92003 |
— | ||
|
77750B
|
77750B
90910-05171 Hose, Fuel, No.2 (For Charcoal Canister)[11.1984 - 08.1987] FJ62 |
90910-05171 |
US $28.83 |
||
|
77750C
|
77750C
90910-05172
Hose, Fuel, No.3 (For Charcoal Canister)
[11.1984 - 08.1987] FJ62 |
90910-05172 |
— | ||
|
77751
|
77751
77751-60080 Bracket, Charcoal Canister Base[11.1984 - 08.1987] FJ62 |
77751-60080 |
US $27.52 |
||
|
77752
|
77752
77751-32010
Bracket, Charcoal Canister Base
[10.1985 - 08.1987] FJ62 |
77751-32010 |
— | ||
|
77752
|
77752
77751-60030 Bracket, Charcoal Canister Base[11.1984 - 10.1985] FJ62 |
77751-60030 |
US $26.06 |
||
| replacement | |||||
|
77752
|
77752
77751-32010
Bracket, Charcoal Canister Base
[11.1984 - 10.1985] FJ62 |
77751-32010 |
— | ||
|
7777760011
|
7777760011
77777-60011
Bracket, Fuel Tube Clamp
|
77777-60011 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9046106156
|
9046106156
90461-06156 New Genuine Part |
90461-06156 |
US $2.18 |
||
|
9046106174
|
9046106174
90461-06174 New Genuine Part |
90461-06174 |
US $1.31 |
||
|
9046110061
|
9046110061
90461-10061 New Genuine Part |
90461-10061 |
US $1.60 |
||
|
9046110295
|
9046110295
90461-10295 New Genuine Part |
90461-10295 |
US $7.72 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9046712011
|
9046712011
90467-12011
Clip(For Actuator Hose)
|
90467-12011 |
— | ||
| replacement | |||||
|
9046712011
|
9046712011
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9048001346
|
9048001346
90480-01346 New Genuine Part |
90480-01346 |
US $3.20 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.93 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.43 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
