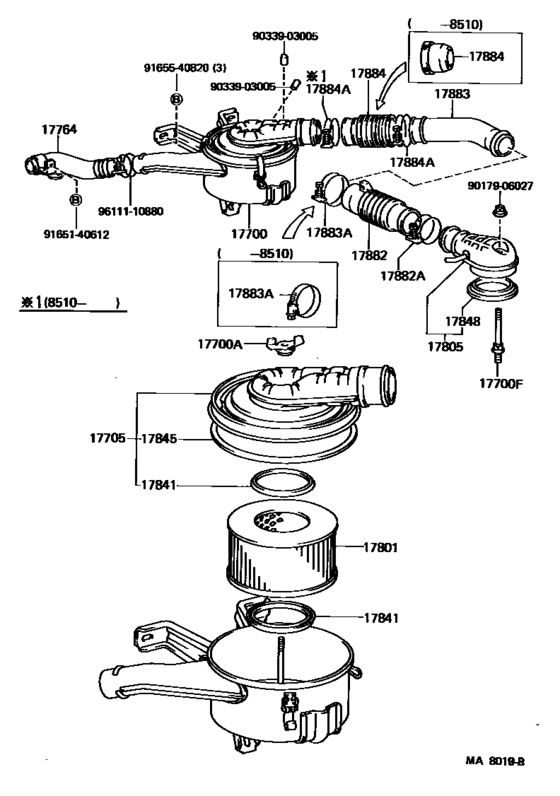

Air Cleaner ([11.1984 - ] (8411- )3F) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- FJ62
- body
- WGV
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-68140
Cleaner Assy, Air
[11.1984 - 08.1986] 3B..BJ61; 3F..FJ62; 2H..HJ60 |
17700-68140 |
— | ||
|
17700A
|
17700A
90175-08008 Nut, Wing(For Air Cleaner)[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
90175-08008 |
from US $2.45 |
||
|
17700F
|
17700F
90116-06222 Bolt, Stud(For Air Cleaner Setting)[11.1984 - 08.1987] 3F..FJ62..IV4 |
90116-06222 |
US $3.32 |
||
|
17705
|
17705
17705-68100
Cap Sub-Assy, Air Cleaner
[11.1984 - 08.1987] 3B..BJ61; 3F..FJ62; 2H..HJ60 |
17705-68100 |
— | ||
|
17764
|
17764
53207-90A00
Duct, Air Cleaner
[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6# |
53207-90A00 |
— | ||
|
17801
|
17801
17801-68020 Element Sub-Assy, Air Cleaner Filter[10.1982 - 08.1987] 3B..BJ61; 2F,3F..FJ6#; 2H..HJ60 |
17801-68020 |
from US $56.75 |
||
|
17805
|
17805
17805-61030
Connector Sub-Assy, Intake Air
[11.1984 - 08.1987] 3F..FJ62..IV4 |
17805-61030 |
— | ||
|
17841
|
17841
17841-68010 Gasket, Filter Element[08.1980 - 08.1987] 3B..BJ6#; 2F,3F..FJ6#; 12HT,2H..HJ6# |
17841-68010 |
from US $2.80 |
||
|
17845
|
17845
17845-61011
Gasket(For Bottom Air Cleaner Filter Case)
[10.1982 - 08.1987] 3B..BJ61 *G,L=933; 2F,3F..FJ6# *G,L=933; 12HT,2H..HJ6# *G,L=933 |
17845-61011 |
— | ||
|
17848
|
17848
17848-61020 Gasket, Air Cleaner To Carburetor[11.1984 - 08.1987] 3F..FJ62 |
17848-61020 |
from US $3.49 |
||
|
17882
|
17882
17881-61060
Hose, Air Cleaner, No.2
[11.1984 - 10.1985] 3F..FJ62 |
17881-61060 |
— | ||
| replacement | |||||
|
17882
|
17882
17881-61061 Hose, Air Cleaner, No.1[11.1984 - 10.1985] 3F..FJ62 |
17881-61061 |
US $68.49 |
||
|
17882
|
17882
17881-61061 Hose, Air Cleaner, No.1[10.1985 - 08.1987] 3F..FJ62 |
17881-61061 |
US $68.49 |
||
|
17882A
|
17882A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[11.1984 - 08.1987] 3F..FJ62 |
96111-10800 |
from US $2.87 |
||
|
17883
|
17883
17882-61031
Hose, Air Cleaner, No.2
[10.1985 - 08.1987] 3F..FJ62 |
17882-61031 |
— | ||
|
17883
|
17883
17882-61040
Hose, Air Cleaner, No.3
[11.1984 - 10.1985] 3F..FJ62 |
17882-61040 |
— | ||
|
17883A
|
17883A
90460-80001
Clamp, Hose
[11.1984 - 10.1985] 3F..FJ62 |
90460-80001 |
— | ||
| replacement | |||||
|
17883A
|
17883A
90460-80006 Clamp, Hose[11.1984 - 10.1985] 3F..FJ62 |
90460-80006 |
from US $8.11 |
||
|
17883A
|
17883A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[10.1985 - 08.1987] 3F..FJ62 |
96111-10800 |
from US $2.87 |
||
|
17884
|
17884
17883-61010
Hose, Air Cleaner, No.4
[11.1984 - 10.1985] 3F..FJ62 |
17883-61010 |
— | ||
|
17884
|
17884
17883-61011 Hose, Air Cleaner, No.3[10.1985 - 08.1987] 3F..FJ62 |
17883-61011 |
US $66.16 |
||
|
17884A
|
17884A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[10.1985 - 08.1987] 3F..FJ62 AIR CLEANER SIDE |
96111-10800 |
from US $2.87 |
||
|
17884A
|
17884A
96111-10830 Clamp, Hose(For Air Connector)[11.1984 - 10.1985] 3F..FJ62 |
96111-10830 |
from US $3.23 |
||
|
17884A
|
17884A
96111-10880 Clamp(For Air Intake Rubber Seal)[10.1985 - 08.1987] 3F..FJ62 HOSE SIDE |
96111-10880 |
from US $8.57 |
||
|
9017906027
|
9017906027
90179-06027
Nut, Wing(For Air Connector)
|
90179-06027 |
— | ||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.73 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.97 |
||
|
9611110880
|
9611110880
96111-10880 Clamp(For Air Intake Rubber Seal) |
96111-10880 |
from US $8.57 |
||
