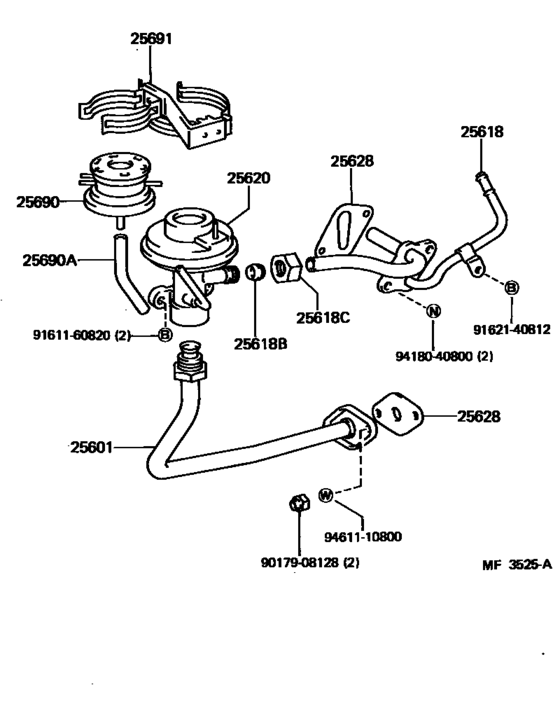

Exhaust Gas Recirculation System ([11.1984 - ] (8411- )3F) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- FJ62
- body
- WGV
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-61050
Pipe Sub-Assy, Egr, No.1
[11.1984 - 08.1987] 3F..FJ62 |
25601-61050 |
— | ||
|
25618
|
25618
25618-61020
Inlet, Egr
[11.1984 - 08.1987] 3F..FJ62 |
25618-61020 |
— | ||
|
25618B
|
25618B
90410-18002 Sleeve, Ball, Egr Pipe, No.1[08.1980 - 08.1987] 2F,3F..FJ6# |
90410-18002 |
US $7.69 |
||
|
25618C
|
25618C
90402-26074
Nut, Olive E(For Egr Inlet)
[08.1980 - 08.1987] 2F,3F..FJ6# |
90402-26074 |
— | ||
| replacement | |||||
|
25618C
|
25618C
90402-26002
Nut, Union, Egr Pipe, No.1
[08.1980 - 08.1987] 2F,3F..FJ6# |
90402-26002 |
— | ||
|
25620
|
25620
25620-61102
Valve Assy, Egr
[10.1982 - 08.1987] 2F,3F..FJ6# |
25620-61102 |
— | ||
| replacement | |||||
|
25620
|
25620
25620-61130
Valve Assy, Egr
[10.1982 - 08.1987] 2F,3F..FJ6# |
25620-61130 |
— | ||
|
25628
|
25628
25628-61020
Gasket, Egr Inlet
[08.1980 - 08.1987] 2F,3F..FJ6# EXHAUST MANIFOLD |
25628-61020 |
— | ||
| replacement | |||||
|
25628
|
25628
25628-61060 Gasket, Egr Inlet[08.1980 - 08.1987] 2F,3F..FJ6# EXHAUST MANIFOLD |
25628-61060 |
US $15.20 |
||
|
25628
|
25628
25628-61040
Gasket, Egr Inlet
[11.1984 - 08.1987] 3F..FJ62 INTAKE MANIFOLD |
25628-61040 |
— | ||
| replacement | |||||
|
25628
|
25628
25628-61050 Gasket, Egr Inlet[11.1984 - 08.1987] 3F..FJ62 INTAKE MANIFOLD |
25628-61050 |
US $18.17 |
||
|
25690
|
25690
25690-61011 Modulator Assy, Egr VacuumEGR VACUUM [08.1980 - 08.1987] 2F,3F..FJ6# |
25690-61011 |
US $90.27 |
||
|
25690A
|
25690A
90445-11014
Hose(For Egr Vacuum Modulator)
[08.1980 - 08.1987] 2F,3F..FJ6# |
90445-11014 |
— | ||
|
25691
|
25691
25691-61010
Bracket, Egr Vacuum Modulator
[08.1980 - 08.1987] 2F,3F..FJ6# |
25691-61010 |
— | ||
|
9017908128
|
9017908128
90179-08128
New Genuine Part
|
90179-08128 |
— | ||
| replacement | |||||
|
9017908128
|
9017908128
90179-08012 NUT |
90179-08012 |
from US $1.92 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.52 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.84 |
||
