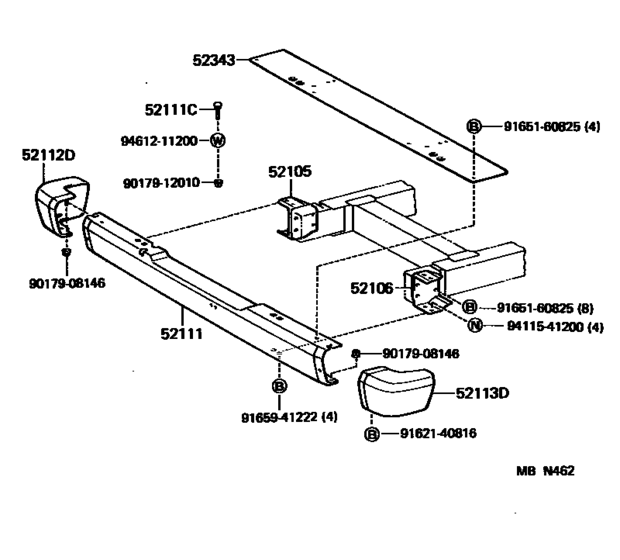

Front Bumper & Bumper Stay ([06.1985 - ] (8506- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- FJ62
- body
- WGV
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52105
|
52105
52130-60011 Stay Sub-Assy, Front Bumper, RhFRONT BUMPER, RH [11.1984 - 08.1987] BJ61,FJ62,HJ6# W/WINCH |
52130-60011 |
US $198.02 |
||
|
52105
|
52105
52141-60030
Stay Sub-Assy, Front Bumper, Rh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# W/O WINCH |
52141-60030 |
— | ||
|
52106
|
52106
52140-60011 Stay Sub-Assy, Front Bumper, LhFRONT BUMPER, LH [11.1984 - 08.1987] BJ61,FJ62,HJ6# W/WINCH |
52140-60011 |
US $198.02 |
||
|
52106
|
52106
52142-60030
Stay Sub-Assy, Front Bumper, Lh
[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# W/O WINCH |
52142-60030 |
— | ||
|
52111
|
52111
52111-60120 Bumper Assy, Front[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# CHROME,W/O WINCH |
52111-60120 |
US $966.54 |
||
|
52111
|
52111
52111-60141
Bumper Assy, Front
[11.1984 - 08.1987] BJ61,FJ62,HJ6# CHROME,W/WINCH |
52111-60141 |
— | ||
|
52111C
|
52111C
90112-12041 Bolt, Round Head Square Neck(For Front Bumper)[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# W/O WINCH |
90112-12041 |
US $5.91 |
||
|
52112D
|
52112D
52102-60010 Extension, Front Bumper, RhFRONT BUMPER, RH [08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
52102-60010 |
US $128.04 |
||
|
52113D
|
52113D
52103-60010 Extension, Front Bumper, LhFRONT BUMPER, LH [08.1980 - 08.1987] BJ6#,FJ6#,HJ6# |
52103-60010 |
US $164.80 |
||
|
52343
|
52343
52343-90A00
Step, Front Bumper, Center
[06.1985 - 04.1986] FJ62..IV4 |
52343-90A00 |
— | ||
|
52343
|
52343
52343-90A01 Step, Front Bumper, CenterFRONT BUMPER, CENTER [04.1986 - 08.1987] FJ62..IV4 |
52343-90A01 |
US $512.51 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $2.51 |
||
|
9017912010
|
9017912010
90179-12010 NUT |
90179-12010 |
US $3.40 |
||
|
9162140816
|
9162140816
91621-40816 BOLTWWASHER |
91621-40816 |
US $2.33 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $1.54 |
||
|
9165941222
|
9165941222
91659-41222 BOLT, W/WASHER |
91659-41222 |
US $4.12 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
US $1.79 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
US $1.79 |
||
