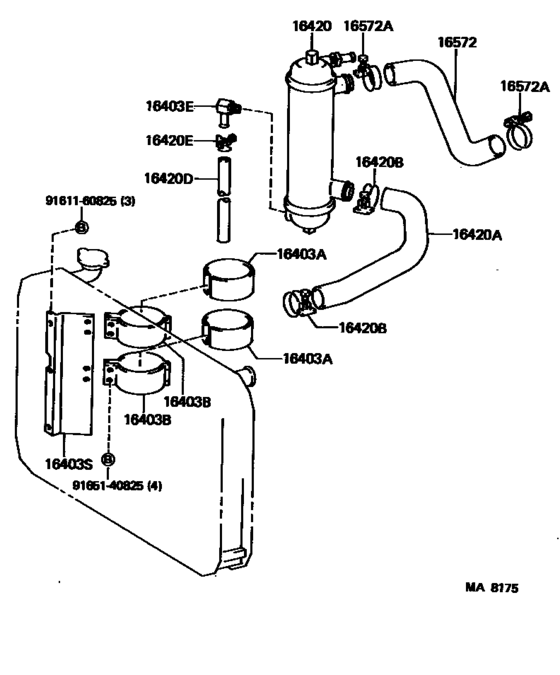

Radiator & Water Outlet ([11.1984 - ] (8411- )3F..IV4) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- FJ62
- body
- WGV
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16403A
|
16403A
16523-58010
Seat(For Sub Radiator)
[11.1984 - 08.1987] 3F..FJ62..IV4 |
16523-58010 |
— | ||
|
16403B
|
16403B
16511-58010
Bracket, Sub Radiator
[11.1984 - 08.1987] 3F..FJ62..IV4 |
16511-58010 |
— | ||
|
16403E
|
16403E
90407-14051
Elbow(For Sub Radiator)
[11.1980 - 08.1987] 2F,3F..FJ6#..IV4 |
90407-14051 |
— | ||
| replacement | |||||
|
16403E
|
16403E
90407-53007 Union(For Water By-Pass Hose)[11.1980 - 08.1987] 2F,3F..FJ6#..IV4 |
90407-53007 |
US $9.32 |
||
|
16403S
|
16403S
16533-61010
Support, Sub Radiator Bracket
[11.1984 - 08.1987] 3F..FJ62..IV4 |
16533-61010 |
— | ||
|
16420
|
16420
16510-61010 Radiator Assy, Sub[11.1984 - 08.1987] 3F..FJ62..IV4 |
16510-61010 |
US $701.79 |
||
|
16420A
|
16420A
16551-61010 Hose, Sub Radiator, Inlet[11.1984 - 08.1987] 3F..FJ62..IV4 |
16551-61010 |
US $32.47 |
||
|
16420B
|
16420B
96111-10500 Clamp, Sub Radiator Inlet Hose[11.1980 - 08.1987] 2F,3F..FJ6#..IV4 |
96111-10500 |
from US $2.15 |
||
|
16420D
|
16420D
99552-20500 Hose, Sub Radiator, No.2[11.1984 - 08.1987] 3F..FJ62..IV4 |
99552-20500 |
US $10.05 |
||
| replacement | |||||
|
16420D
|
16420D
99556-20500
Hose, Rear Heater Water Inlet, B
[11.1984 - 08.1987] 3F..FJ62..IV4 |
99556-20500 |
— | ||
|
16420E
|
16420E
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.1984 - 08.1987] 2F,3F..FJ6#..IV4 |
96112-10220 |
US $0.61 |
||
|
16572
|
16572
16552-61010 Hose, Radiator, Outlet[11.1984 - 08.1987] 3F..FJ62..IV4 |
16552-61010 |
US $26.21 |
||
|
16572
|
16572
16572-61020 Hose, Radiator, Outlet[11.1984 - 08.1987] 3F..FJ62 WATER PUMP SIDE |
16572-61020 |
US $17.74 |
||
|
16572
|
16572
16573-61040 Hose, Radiator, Outlet[11.1984 - 08.1987] 3F..FJ62 RADIATOR SIDE |
16573-61040 |
US $34.10 |
||
|
16572A
|
16572A
96111-10500 Clamp, Sub Radiator Inlet Hose[11.1984 - 08.1987] 3F..FJ62..IV4 |
96111-10500 |
from US $2.15 |
||
|
16572A
|
16572A
96111-10510 Clamp Or Clip, Sub Radiator Hose[11.1984 - 08.1987] 3F..FJ62 |
96111-10510 |
US $4.66 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $2.87 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.58 |
||
