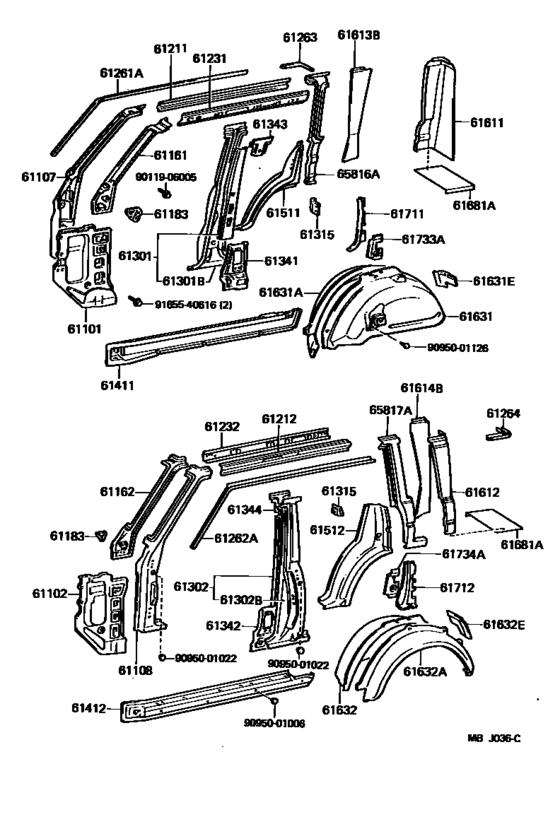

Side Member ([11.1984 - ] (8411- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- FJ62
- body
- WGV
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61101
|
61101
61101-90A08 Panel Sub-Assy, Cowl Side, Rh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61101-90A08 |
US $270.82 |
||
|
61102
|
61102
61102-90A07 Panel Sub-Assy, Cowl Side, Lh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61102-90A07 |
US $270.82 |
||
|
61107
|
61107
61027-90A04 Pillar Sub-Assy, Front Body, Outer Rh[11.1984 - 08.1987] BJ61,FJ62,HJ60..SRF |
61027-90A04 |
US $722.18 |
||
|
61108
|
61108
61028-90A04 Pillar Sub-Assy, Front Body, Outer Lh[11.1984 - 08.1987] BJ61,FJ62,HJ60..SRF |
61028-90A04 |
US $722.18 |
||
|
61161
|
61161
61161-90A00 Pillar, Front Body, Upper Inner RhFRONT BODY, UPPER INNER RH [08.1980 - 10.1985] BJ6#,FJ6#,HJ60 |
61161-90A00 |
US $368.37 |
||
| replacement | |||||
|
61161
|
61161
61161-90A03 Pillar, Front Body, Inner Rh[08.1980 - 10.1985] BJ6#,FJ6#,HJ60 |
61161-90A03 |
US $371.28 |
||
|
61161
|
61161
61161-90A02 Pillar, Front Body, Upper Inner RhFRONT BODY, UPPER INNER RH [10.1985 - 08.1987] BJ61,FJ62,HJ6# |
61161-90A02 |
US $374.19 |
||
| replacement | |||||
|
61161
|
61161
61161-90A03 Pillar, Front Body, Inner Rh[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
61161-90A03 |
US $371.28 |
||
|
61162
|
61162
61162-90A01 Pillar, Front Body, Upper Inner LhFRONT BODY, UPPER INNER LH [10.1980 - 10.1985] BJ6#,FJ6#,HJ60 |
61162-90A01 |
US $368.37 |
||
|
61162
|
61162
61162-90A02 Pillar, Front Body, Upper Inner LhFRONT BODY, UPPER INNER LH [10.1985 - 08.1987] BJ61,FJ62,HJ6# |
61162-90A02 |
US $374.19 |
||
| replacement | |||||
|
61162
|
61162
61162-90A03 Pillar, Front Body, Inner Lh[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
61162-90A03 |
US $371.28 |
||
|
61183
|
61183
61183-90A01 Bracket, Instrument Panel Side[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# RH |
61183-90A01 |
US $23.44 |
||
|
61183
|
61183
61184-90A00 Bracket, Instrument Panel Side[08.1980 - 08.1987] BJ6#,FJ6#,HJ6# LH |
61184-90A00 |
US $20.38 |
||
|
61211
|
61211
61211-90H00 Rail, Roof Side, Outer RhROOF SIDE, OUTER RH [11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61211-90H00 |
US $235.87 |
||
|
61212
|
61212
61212-90H00 Rail, Roof Side, Outer LhROOF SIDE, OUTER LH [11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61212-90H00 |
US $235.87 |
||
|
61231
|
61231
61231-90A02 Rail, Roof Side, Inner RhROOF SIDE, INNER RH [11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61231-90A02 |
US $147.06 |
||
| replacement | |||||
|
61231
|
61231
61231-90A03 Rail, Roof Side, Inner Rh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61231-90A03 |
US $65.08 |
||
|
61232
|
61232
61232-90A01 Rail, Roof Side, Inner LhROOF SIDE, INNER LH [11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61232-90A01 |
US $163.07 |
||
| replacement | |||||
|
61232
|
61232
61232-90A02 Rail, Roof Side, Inner Lh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61232-90A02 |
US $65.08 |
||
|
61261A
|
61261A
61263-90A00
Channel, Roof Drip Side, Front Rh
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61263-90A00 |
— | ||
|
61262A
|
61262A
61264-90A00
Channel, Roof Drip Side, Front Lh
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61264-90A00 |
— | ||
|
61263
|
61263
61267-90A00
Channel, Roof Drip, Rear Rh
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61267-90A00 |
— | ||
|
61264
|
61264
61268-90A00
Channel, Roof Drip, Rear Lh
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61268-90A00 |
— | ||
|
61301
|
61301
61330-90A03 Pillar Sub-Assy, Center Body, Rh[11.1984 - 08.1986] BJ61,FJ62,HJ60 |
61330-90A03 |
US $481.94 |
||
| replacement | |||||
|
61301
|
61301
61330-90A04 Pillar Sub-Assy, Center Body, Rh[11.1984 - 08.1986] BJ61,FJ62,HJ60 |
61330-90A04 |
US $481.94 |
||
|
61301B
|
61301B
61301-90A04 Pillar, Center Body, Outer RhCENTER BODY, OUTER RH [11.1984 - 08.1986] BJ61,FJ62,HJ60 |
61301-90A04 |
US $722.18 |
||
| replacement | |||||
|
61301B
|
61301B
61301-90A05 Pillar, Center Body, Outer RhCENTER BODY, OUTER RH [11.1984 - 08.1986] BJ61,FJ62,HJ60 |
61301-90A05 |
US $722.18 |
||
|
61302
|
61302
61340-90A04 Pillar Sub-Assy, Center Body, Lh[11.1984 - 08.1986] BJ61,FJ62,HJ60 |
61340-90A04 |
US $481.94 |
||
| replacement | |||||
|
61302
|
61302
61340-90A05 Pillar Sub-Assy, Center Body, Lh[11.1984 - 08.1986] BJ61,FJ62,HJ60 |
61340-90A05 |
US $481.94 |
||
|
61302B
|
61302B
61302-90A06 Pillar, Center Body, Outer LhCENTER BODY, OUTER LH [11.1984 - 08.1986] BJ61,FJ62,HJ60 |
61302-90A06 |
US $722.18 |
||
| replacement | |||||
|
61302B
|
61302B
61302-90A07 Pillar, Center Body, Outer LhCENTER BODY, OUTER LH [11.1984 - 08.1986] BJ61,FJ62,HJ60 |
61302-90A07 |
US $722.18 |
||
|
61315
|
61315
61503-90A00 Retainer, Door Lock Striker Plate[11.1984 - 08.1987] BJ61,FJ62,HJ6# RH |
61503-90A00 |
US $23.30 |
||
|
61315
|
61315
61504-90A00 Retainer, Door Lock Striker Plate[11.1984 - 08.1987] BJ61,FJ62,HJ6# LH |
61504-90A00 |
US $23.30 |
||
|
61341
|
61341
61345-90A00 Pillar, Center Body, Inner Lower Rh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61345-90A00 |
US $173.26 |
||
|
61342
|
61342
61346-90A00 Pillar, Center Body, Inner Lower Lh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61346-90A00 |
US $173.26 |
||
|
61343
|
61343
61341-90A00 Pillar, Center Body, Inner Upper Rh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61341-90A00 |
US $100.46 |
||
|
61344
|
61344
61342-90A00 Pillar, Center Body, Inner Upper Lh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61342-90A00 |
US $100.46 |
||
|
61411
|
61411
61401-90A06
Panel, Rocker, Outer Rh
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61401-90A06 |
— | ||
|
61412
|
61412
61402-90A06
Panel, Rocker, Outer Lh
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61402-90A06 |
— | ||
|
61511
|
61511
61511-90A01 Pillar, Quarter Lock, Rh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61511-90A01 |
US $253.34 |
||
|
61512
|
61512
61512-90A01
Pillar, Quarter Lock, Lh
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61512-90A01 |
— | ||
|
61611
|
61611
61601-90G11 Panel, Quarter, Rh[11.1984 - 08.1987] FJ62..IV4 |
61601-90G11 |
US $1,083.26 |
||
|
61612
|
61612
61602-90A58 Panel, Quarter, Lh[11.1984 - 08.1987] FJ62..IV4 |
61602-90A58 |
US $1,083.26 |
||
|
61613B
|
61613B
61613-90A00
Panel, Quarter, Inner Front Rh
[11.1984 - 08.1987] FJ62..IV4 |
61613-90A00 |
— | ||
|
61614B
|
61614B
61614-90A00
Panel, Quarter, Inner Front Lh
[11.1984 - 08.1987] FJ62..IV4 |
61614-90A00 |
— | ||
|
61631
|
61631
61607-90A04
Panel, Quarter Wheel House, Rh
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61607-90A04 |
— | ||
|
61631E
|
61631E
61645-90A00 Gusset, Quarter Wheel House, Rear Rh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61645-90A00 |
US $45.72 |
||
|
61632
|
61632
61608-90A00
Panel, Quarter Wheel House, Lh
[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61608-90A00 |
— | ||
|
61632E
|
61632E
61646-90A00 Gusset, Quarter Wheel House, Rear Lh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61646-90A00 |
US $45.72 |
||
|
61681A
|
61681A
61681-90A03 Step, Quarter Panel, No.1[04.1986 - 08.1987] FJ62..IV4 |
61681-90A03 |
US $47.61 |
||
|
61711
|
61711
61711-90A01 Panel, Roof Side, Outer Rh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61711-90A01 |
US $218.40 |
||
|
61712
|
61712
61712-90A01 Panel, Roof Side, Outer Lh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61712-90A01 |
US $218.40 |
||
|
61733A
|
61733A
61733-90A02 Panel, Roof Side, Inner Front Rh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61733-90A02 |
US $52.71 |
||
| replacement | |||||
|
61733A
|
61733A
61733-90A05 Panel, Roof Side, Inner Front Rh[11.1984 - 08.1987] BJ61,FJ62,HJ6# |
61733-90A05 |
US $52.12 |
||
|
61734A
|
61734A
61734-90A00 Panel, Roof Side, Inner Front LhROOF SIDE, INNER FRONT LH [11.1984 - 10.1985] BJ61,FJ62,HJ60 |
61734-90A00 |
US $53.29 |
||
| replacements | |||||
|
61734A
|
61734A
61734-90A05 Panel, Roof Side, Inner Front Lh[11.1984 - 10.1985] BJ61,FJ62,HJ60 |
61734-90A05 |
US $52.12 |
||
|
61734A
|
61734A
90480-45002 New Genuine Part[11.1984 - 10.1985] BJ61,FJ62,HJ60 |
90480-45002 |
US $5.24 |
||
|
61734A
|
61734A
61734-90A03 Panel, Roof Side, Inner Front Lh[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
61734-90A03 |
US $52.71 |
||
| replacement | |||||
|
61734A
|
61734A
61734-90A05 Panel, Roof Side, Inner Front Lh[10.1985 - 08.1987] BJ61,FJ62,HJ6# |
61734-90A05 |
US $52.12 |
||
|
65816A
|
65816A
65816-90A00 Panel, Rear Body Side, Rh[04.1986 - 08.1987] FJ62..IV4 |
65816-90A00 |
US $352.35 |
||
|
65817A
|
65817A
65817-90A00 Panel, Rear Body Side, Lh[04.1986 - 08.1987] FJ62..IV4 |
65817-90A00 |
US $352.35 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
US $4.66 |
||
|
9095001022
|
9095001022
90950-01022
Plug, Hole, No.1(For Dash Panel)
|
90950-01022 |
— | ||
| replacement | |||||
|
9095001022
|
9095001022
90950-01882 Cover, Hole |
90950-01882 |
from US $2.51 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $6.45 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.25 |
||
