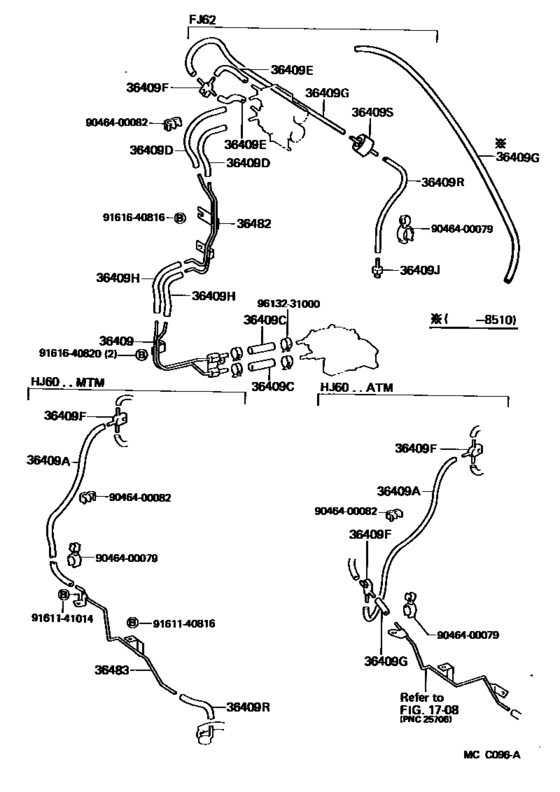

Transfer Vacuum Piping ([11.1984 - ] (8411- )FJ62,HJ60) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- FJ62
- body
- WGV
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36409J
|
36409J
90404-51093 Union, Vacuum Hose[11.1984 - 08.1987] FJ62 |
90404-51093 |
US $2.45 |
||
|
9046400079
|
9046400079
90464-00079 Clamp, Vacuum Tube |
90464-00079 |
US $5.59 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
US $2.51 |
||
|
9161141014
|
9161141014
91611-41014
New Genuine Part
|
91611-41014 |
— | ||
| replacement | |||||
|
9161141014
|
9161141014
91612-B1014 BOLT WWASHER |
91612-B1014 |
US $0.61 |
||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
US $2.51 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.93 |
||
|
9613231000
|
9613231000
96132-31000
Clip(For Ventilation Tube)
|
96132-31000 |
— | ||
| replacement | |||||
|
9613231000
|
9613231000
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
US $1.61 |
||
