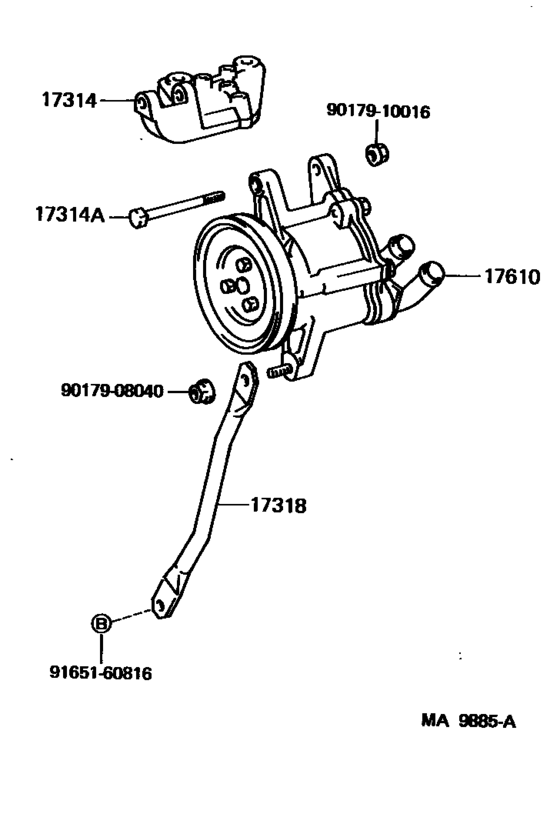

Air Pump ([08.1988 - ] (8808- )3FE) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17314
|
17314
17314-61040
Bracket, Air Pump
[08.1988 - 01.1990] 3FE..FJ62 |
17314-61040 |
— | ||
|
17314A
|
17314A
90105-10221 Bolt, Hexagon(For Air Pump Bracket Setting)[08.1988 - 01.1990] 3FE..FJ62 |
90105-10221 |
from US $3.10 |
||
|
17318
|
17318
17318-61060
Bar, Air Pump Adjusting, No.2
[08.1988 - 01.1990] 3FE..FJ62 |
17318-61060 |
— | ||
|
17610
|
17610
17610-61040 Pump Assy, Air[08.1988 - 01.1990] 3FE..FJ62 |
17610-61040 |
US $726.54 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.91 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
