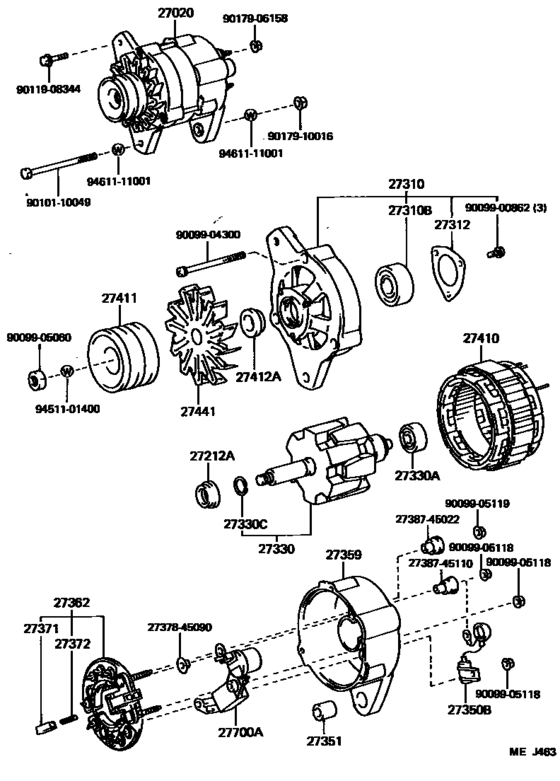

Alternator ([08.1988 - ] 12V 80A (8808- )3FE) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-61090 Alternator Assy[08.1988 - 01.1990] 3FE..FJ62 １２Ｖ ８０Ａ |
27060-61090 |
US $1,820 |
||
|
27212A
|
27212A
27212-39050
Ring, Space(For Alternator Rotor)
[08.1988 - 01.1990] 3FE..FJ62 |
27212-39050 |
— | ||
|
27310
|
27310
27310-72070
Frame Assy, Drive End, Alternator
[08.1988 - 01.1990] 3FE..FJ62 |
27310-72070 |
— | ||
|
27310B
|
27310B
90099-10110
Bearing(For Alternator Drive End Frame)
[08.1988 - 01.1990] 3FE..FJ62 |
90099-10110 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10142 Bearing(For Alternator Drive End Frame)[08.1988 - 01.1990] 3FE..FJ62 |
90099-10142 |
US $16.95 |
||
|
27312
|
27312
27312-45010
Plate, Bearing Retainer, Alternator
[08.1988 - 01.1990] 3FE..FJ62 |
27312-45010 |
— | ||
|
27330
|
27330
27330-72070
Rotor Assy, Alternator
[08.1988 - 01.1990] 3FE..FJ62 |
27330-72070 |
— | ||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[08.1988 - 01.1990] 3F#..FJ62 |
90099-10116 |
— | ||
|
27330C
|
27330C
90099-07048
Ring, Snap(For Alternator Rotor)
[08.1988 - 01.1990] 3FE..FJ62 |
90099-07048 |
— | ||
|
27350B
|
27350B
90099-52065 Condenser, Alternator[08.1987 - 01.1990] 3F#..FJ62 |
90099-52065 |
US $3.31 |
||
| replacement | |||||
|
27350B
|
27350B
90099-52034
Condenser, Alternator
[08.1987 - 01.1990] 3F#..FJ62 |
90099-52034 |
— | ||
|
27351
|
27351
27351-38051
Bush(For Alternator Rectifier End Frame)
[08.1987 - 01.1990] 3F#..FJ62 |
27351-38051 |
— | ||
|
27359
|
27359
27359-61190
Frame, Alternator Rectifier End
[08.1988 - 01.1990] 3FE..FJ62 |
27359-61190 |
— | ||
|
27362
|
27362
27362-72070
Rectifier Assy, W/brush
[08.1988 - 01.1990] 3FE..FJ62 |
27362-72070 |
— | ||
|
27371
|
27371
27371-31011 Brush, Alternator[08.1987 - 01.1990] 3F#..FJ62 |
27371-31011 |
from US $2.45 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[08.1987 - 01.1990] 3F#..FJ62 |
27372-31011 |
— | ||
|
27410
|
27410
27410-72070
Stator Assy, Alternator
[08.1988 - 01.1990] 3FE..FJ62 |
27410-72070 |
— | ||
|
27411
|
27411
27411-61210
Pulley, Alternator
[08.1988 - 01.1990] 3FE..FJ62 |
27411-61210 |
— | ||
|
27412A
|
27412A
27412-45012
Collar Or Nut(For Alternator Drive End Frame)
[08.1988 - 01.1990] 3FE..FJ62 |
27412-45012 |
— | ||
|
27441
|
27441
27441-45050
Fan, Alternator
[08.1988 - 01.1990] 3FE..FJ62 |
27441-45050 |
— | ||
|
27700A
|
27700A
27700-63030
Regulator Assy, Generator
[08.1988 - 01.1990] 3FE..FJ62 |
27700-63030 |
— | ||
|
2737845090
|
2737845090
27378-45090
Insulator, Alternator, No.1
|
27378-45090 |
— | ||
|
2738745022
|
2738745022
27387-45022
Insulator, Terminal
|
27387-45022 |
— | ||
|
2738745110
|
2738745110
27387-45110
Insulator, Terminal
|
27387-45110 |
— | ||
|
9009900862
|
9009900862
90099-00862
New Genuine Part
|
90099-00862 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9010110049
|
9010110049
90101-10049
Bolt, Hexagon(For Air Pump Bracket Setting)
|
90101-10049 |
— | ||
| replacement | |||||
|
9010110049
|
9010110049
90105-10221 Bolt, Hexagon(For Air Pump Bracket Setting) |
90105-10221 |
from US $3.10 |
||
|
9011908344
|
9011908344
90119-08344 New Genuine Part |
90119-08344 |
US $1.40 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.91 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.43 |
||
