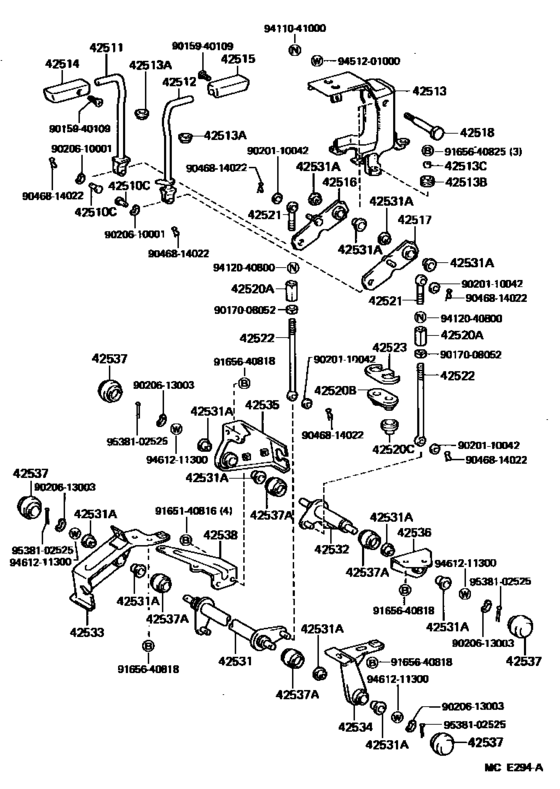

Differential Lock Control ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42510C
|
42510C
90240-10148 Pin, W/hole (For Differential Lock Lever)[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
90240-10148 |
US $2.48 |
||
|
42511
|
42511
42511-60010
Lever, Differential Lock, Front
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42511-60010 |
— | ||
|
42512
|
42512
42512-60010
Lever, Differential Lock, Rear
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42512-60010 |
— | ||
|
42513
|
42513
42513-60010 Bracket, Differential Lock[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42513-60010 |
US $49.21 |
||
|
42513A
|
42513A
90480-17019 Grommet (For Differential Lock Lever)[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
90480-17019 |
US $2.48 |
||
|
42513B
|
42513B
90480-13012 Grommet (For Shift Lever Plate)[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
90480-13012 |
US $2.75 |
||
|
42513C
|
42513C
90387-09011
Collar (For Floor Shift Setting)
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
90387-09011 |
— | ||
|
42514
|
42514
42514-60010
Knob, Differential Lock, Front
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42514-60010 |
— | ||
|
42515
|
42515
42515-60010
Knob, Differential Lock, Rear
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42515-60010 |
— | ||
|
42516
|
42516
42516-60010
Link, Differential Lock, Front
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42516-60010 |
— | ||
|
42517
|
42517
42517-60010
Link, Differential Lock, Rear
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42517-60010 |
— | ||
|
42518
|
42518
42518-60010
Shaft, Differential Lock Link
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42518-60010 |
— | ||
|
42520A
|
42520A
90587-08001
Turnbuckle(For Over Center Adjusting Rod)
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
90587-08001 |
— | ||
|
42520B
|
42520B
90480-01336
Grommet (For Differential Lock Rod)
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
90480-01336 |
— | ||
|
42520C
|
42520C
90480-20016
Grommet (For Differential Lock Rod)
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
90480-20016 |
— | ||
|
42521
|
42521
42521-60010
Rod, Differential Lock, No.1
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42521-60010 |
— | ||
|
42522
|
42522
42522-60010
Rod, Differential Lock, No.2
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42522-60010 |
— | ||
|
42523
|
42523
42523-60010
Cover, Differential Lock Grommet
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42523-60010 |
— | ||
|
42531
|
42531
42531-60010 Shaft, Differential Lock Control, Front[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42531-60010 |
US $52.27 |
||
|
42531A
|
42531A
90386-13014
Bush (For Differential Lock Lever)
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU ｱﾘ(ﾃﾞﾌｱﾚﾝｼﾔﾙ ﾛﾂｸ) |
90386-13014 |
— | ||
|
42532
|
42532
42532-60010 Shaft, Differential Lock Control, Rear[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42532-60010 |
US $37.71 |
||
|
42533
|
42533
42533-60010
Bracket, Differential Lock Control, Front No.1
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42533-60010 |
— | ||
|
42534
|
42534
42534-60010 Bracket, Differential Lock Control, Front No.2[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42534-60010 |
US $21.99 |
||
|
42535
|
42535
42535-60010
Bracket, Differential Lock Control, Rear No.1
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42535-60010 |
— | ||
|
42536
|
42536
42536-60010 Bracket, Differential Lock Control, Rear No.2[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42536-60010 |
US $22.86 |
||
|
42537
|
42537
42537-60010
Cover, Control Shaft Dust, No.1
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42537-60010 |
— | ||
|
42537A
|
42537A
33789-36010
Cover, Cross Shaft Dust, No.1 (For Floor Shift)
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
33789-36010 |
— | ||
| replacement | |||||
|
42537A
|
42537A
33789-36020 Cover, Cross Shaft Dust(For Column Shift)[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
33789-36020 |
US $6.46 |
||
|
42538
|
42538
42538-60010
Stay, Control Shaft Bracket
[08.1987 - 01.1990] HJ60..MTM;FJ62,HJ61..CBU |
42538-60010 |
— | ||
|
9015940109
|
9015940109
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting) |
90159-40109 |
US $1.43 |
||
|
9017008052
|
9017008052
90170-08052 Nut, Hexagon (For Column Shift Selecting Or Shifting Rod) |
90170-08052 |
US $0.87 |
||
|
9020110042
|
9020110042
90201-10042 Washer, Plate (For Transfer Control Cable) |
90201-10042 |
US $1.61 |
||
|
9020610001
|
9020610001
90206-10001 New Genuine Part |
90206-10001 |
US $2.18 |
||
|
9020613003
|
9020613003
90206-13003 Washer, Wave (For Power Take-Off Shift Lever) |
90206-13003 |
US $1.79 |
||
|
9046814022
|
9046814022
90468-14022 CLIP |
90468-14022 |
US $1.25 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9165640825
|
9165640825
91656-40825
New Genuine Part
|
91656-40825 |
— | ||
| replacement | |||||
|
9165640825
|
9165640825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9461211300
|
9461211300
94612-11300 Washer(For Outer Lever Oil Setting) |
94612-11300 |
from US $0.68 |
||
|
9538102525
|
9538102525
95381-02525 PINCOTTER |
95381-02525 |
from US $0.76 |
||
