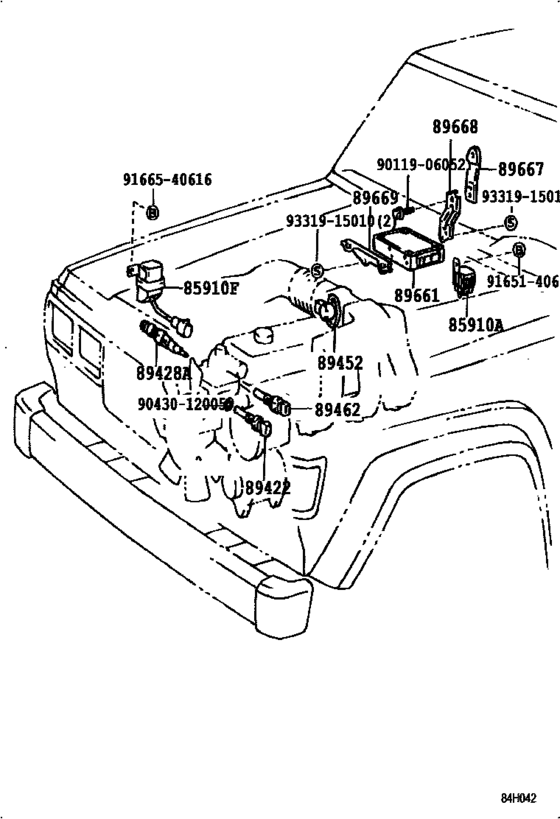

Electronic Fuel Injection System ([08.1988 - ] (8808- )EFI) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-14020
Relay Assy, Circuit Opening (For Efi)
[08.1988 - 01.1990] FJ62..EFI |
85910-14020 |
— | ||
|
85910F
|
85910F
85915-60010
Relay, Computer (For Efi)
[08.1988 - 01.1990] FJ62..EFI |
85915-60010 |
— | ||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1988 - 01.1990] FJ62..EFI |
89422-20010 |
from US $40.66 |
||
|
89428A
|
89428A
89428-14070
Switch, Water Temperature (For E.f.i)
[08.1988 - 01.1990] FJ62..EFI |
89428-14070 |
— | ||
|
89452
|
89452
89452-14050 Sensor, Throttle Position (For E.f.i.)[03.1989 - 01.1990] FJ62..EFI |
89452-14050 |
US $214.40 |
||
|
89452
|
89452
89452-28030
Sensor, Throttle Position (For E.f.i.)
[08.1988 - 03.1989] FJ62..EFI |
89452-28030 |
— | ||
| replacement | |||||
|
89452
|
89452
89452-20050 Sensor, Throttle Position (For E.f.i.)[08.1988 - 03.1989] FJ62..EFI |
89452-20050 |
US $178.21 |
||
|
89462
|
89462
89462-20040 Switch, Start Injector Time[08.1988 - 01.1990] FJ62..EFI |
89462-20040 |
from US $130.26 |
||
|
89661
|
89661
89661-60030 Computer, Engine ControlENGINE CONTROL [08.1988 - 01.1990] FJ62..EFI |
89661-60030 |
US $1,499.68 |
||
|
89667
|
89667
89667-60020
Bracket, Engine Control Computer
[08.1988 - 01.1990] FJ62..EFI |
89667-60020 |
— | ||
|
89668
|
89668
89668-60020
Bracket, Engine Control Computer, No.2
[08.1988 - 01.1990] FJ62..EFI |
89668-60020 |
— | ||
|
89669
|
89669
89669-60020
Bracket, Engine Control Computer, No.3
[08.1988 - 01.1990] FJ62..EFI |
89669-60020 |
— | ||
|
9011906052
|
9011906052
90119-06052 New Genuine Part |
90119-06052 |
US $2.15 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.67 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.25 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
