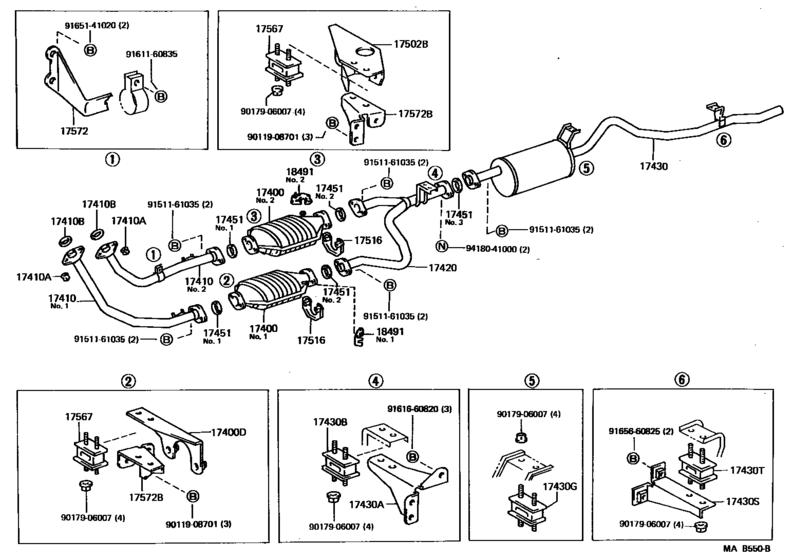

Exhaust Pipe ([08.1988 - ] (8808- )3FE) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-61020 Converter Assy, W/catalyst[08.1988 - 01.1990] 3FE..FJ62 NO.2 |
18450-61020 |
US $1,659.84 |
||
|
17400
|
17400
18450-61030 Converter Assy, W/catalyst[08.1988 - 01.1990] 3FE..FJ62 NO.1 |
18450-61030 |
US $1,776.32 |
||
|
17400D
|
17400D
17573-61051
Bracket, Catalytic Converter Support
[08.1988 - 01.1990] 3FE..FJ62 |
17573-61051 |
— | ||
|
17410
|
17410
17401-61210
Pipe Assy, Exhaust, Front
[08.1988 - 01.1990] 3FE..FJ62 ＮＯ．１ |
17401-61210 |
— | ||
|
17410
|
17410
17402-61010
Pipe Assy, Exhaust, Front
[08.1988 - 01.1990] 3FE..FJ62 ＮＯ．２ |
17402-61010 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1988 - 01.1990] 3FE..FJ62 |
90179-10070 |
from US $1.31 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1988 - 01.1990] 3FE..FJ62 |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[08.1987 - 01.1990] 3F#..FJ62 |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[08.1987 - 01.1990] 3F#..FJ62 |
90917-06039 |
from US $2.20 |
||
|
17420
|
17420
17403-61110
Pipe Assy, Exhaust, Center
[08.1988 - 01.1990] 3FE..FJ62 |
17403-61110 |
— | ||
|
17430
|
17430
17405-61240 Pipe Assy, Exhaust, Tail[08.1988 - 01.1990] 3FE..FJ62 |
17405-61240 |
US $473.49 |
||
|
17430A
|
17430A
17574-61071
Bracket, Exhaust Tail Pipe(For Front)
[08.1987 - 01.1990] 12HT,3F#,2H..FJ62,HJ6# |
17574-61071 |
— | ||
|
17430B
|
17430B
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1987 - 01.1990] 12HT,3F#,2H..FJ62,HJ6# |
17567-61030 |
from US $14.29 |
||
|
17430G
|
17430G
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1987 - 01.1990] 12HT,3F#,2H..FJ62,HJ6# |
17567-61030 |
from US $14.29 |
||
|
17430S
|
17430S
17574-61060
Bracket, Exhaust Tail Pipe (For Rear)
[08.1987 - 01.1990] 12HT,3F#,2H..FJ62,HJ6# |
17574-61060 |
— | ||
|
17430T
|
17430T
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1987 - 01.1990] 12HT,3F#,2H..FJ62,HJ6# |
17567-61030 |
from US $14.29 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[08.1988 - 01.1990] 3FE..FJ62 NO.1 |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1988 - 01.1990] 3FE..FJ62 NO.1 |
90917-06045 |
from US $1.56 |
||
|
17451
|
17451
90917-06023
Gasket, Exhaust Pipe
[08.1988 - 01.1990] 3FE..FJ62 NO.2 |
90917-06023 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06041 Gasket, Exhaust Pipe[08.1988 - 01.1990] 3FE..FJ62 NO.2 |
90917-06041 |
from US $5.76 |
||
|
17451
|
17451
90917-06024
Gasket, Exhaust Pipe, Center
[08.1987 - 01.1990] 12HT,3F#,2H..FJ62,HJ6# NO.3 |
90917-06024 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06073 Gasket, Exhaust Pipe, Center[08.1987 - 01.1990] 12HT,3F#,2H..FJ62,HJ6# NO.3 |
90917-06073 |
from US $8.06 |
||
|
17502B
|
17502B
17502-61021 Bracket Sub-Assy, Catalytic Converter, Front[08.1988 - 01.1990] 3FE..FJ62 |
17502-61021 |
US $32.61 |
||
|
17516
|
17516
18495-38020 Retainer, Exhaust Pipe[08.1988 - 01.1990] 3FE..FJ62 |
18495-38020 |
US $14.33 |
||
|
17567
|
17567
17567-61030 Cushion, Exhaust Pipe Front (For Rear)[08.1988 - 01.1990] 3FE..FJ62 |
17567-61030 |
from US $14.29 |
||
|
17572
|
17572
17571-61160 Bracket, Exhaust Pipe No.1 Support[08.1988 - 01.1990] 3FE..FJ62 |
17571-61160 |
US $19.07 |
||
|
17572B
|
17572B
17572-61051 Bracket, Exhaust Pipe Support, No.2[08.1988 - 01.1990] 3FE..FJ62 |
17572-61051 |
US $14.56 |
||
|
18491
|
18491
18491-28010 Flange, Thermosenser Inlet[08.1988 - 01.1990] 3FE..FJ62 ＮＯ．１ |
18491-28010 |
US $17.56 |
||
|
18491
|
18491
18491-63010 Flange, Thermosenser Inlet[08.1988 - 01.1990] 3FE..FJ62 ＮＯ．２ |
18491-63010 |
US $13.08 |
||
|
9011908701
|
9011908701
90119-08701 BOLT |
90119-08701 |
from US $0.97 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.95 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161660820
|
9161660820
91616-60820
Bolt(For Clutch Release Cylinder Setting)
|
91616-60820 |
— | ||
| replacement | |||||
|
9161660820
|
9161660820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9165141020
|
9165141020
91651-41020 BOLTWWASHER |
91651-41020 |
from US $1.52 |
||
|
9165660825
|
9165660825
91656-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91656-60825 |
— | ||
| replacement | |||||
|
9165660825
|
9165660825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.27 |
||
