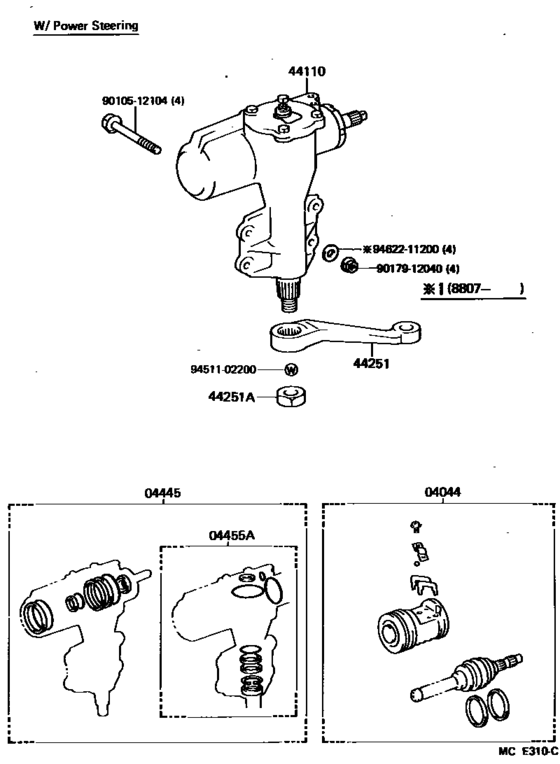

Front Steering Gear & Link ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44110
|
44110
44110-60150
Gear Assy, Power Steering
[08.1987 - 01.1990] FJ62,HJ6#..CBU |
44110-60150 |
— | ||
|
44251
|
44251
45411-60090
Arm, Pitman
[08.1987 - 01.1990] FJ62,HJ6#..CBU |
45411-60090 |
— | ||
|
44251A
|
44251A
90170-22058 Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)[08.1987 - 01.1990] FJ62,HJ6#..CBU |
90170-22058 |
from US $2.07 |
||
|
9010512104
|
9010512104
90105-12104 BOLT |
90105-12104 |
US $6.99 |
||
|
9017912040
|
9017912040
90179-12040 New Genuine Part |
90179-12040 |
US $3.35 |
||
|
9451102200
|
9451102200
94511-02200 WASHER |
94511-02200 |
US $1.97 |
||
|
9462211200
|
9462211200
94622-11200 WASHER |
94622-11200 |
US $3.58 |
