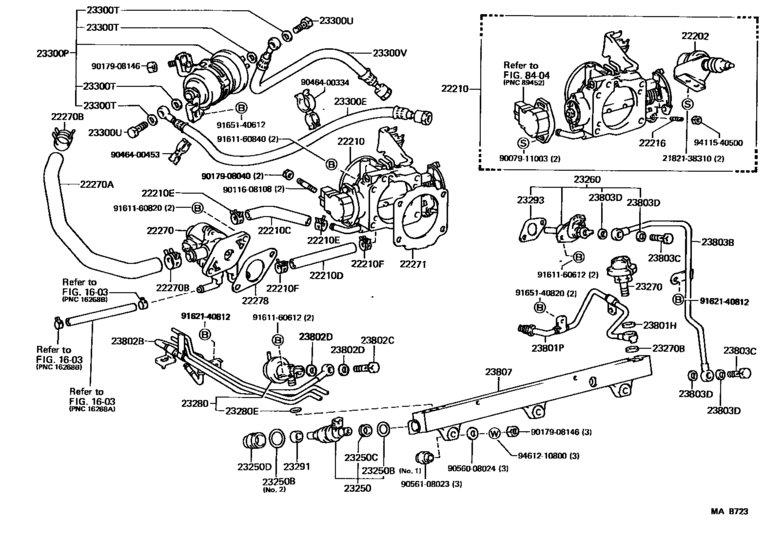

Fuel Injection System ([08.1988 - ] (8808- )3FE) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22202
|
22202
22202-61011
Dash Pot Sub-Assy
[08.1988 - 01.1990] 3FE..FJ62 |
22202-61011 |
— | ||
|
22210
|
22210
22210-61020 Body Assy, Throttle[08.1988 - 01.1990] 3FE..FJ62 |
22210-61020 |
US $679.95 |
||
|
22210C
|
22210C
99555-10125
Hose(For Water By-Pass Pipe)
[08.1988 - 01.1990] 3FE..FJ62 ＊Ｈ，Ｌ＝１２５ |
99555-10125 |
— | ||
| replacement | |||||
|
22210C
|
22210C
99555-10200 Hose, Water By-Pass[08.1988 - 01.1990] 3FE..FJ62 ＊Ｈ，Ｌ＝１２５ |
99555-10200 |
from US $5 |
||
|
22210D
|
22210D
99555-10125
Hose(For Water By-Pass Pipe)
[08.1988 - 01.1990] 3FE..FJ62 ＊Ｈ，Ｌ＝１２５ |
99555-10125 |
— | ||
| replacement | |||||
|
22210D
|
22210D
99555-10200 Hose, Water By-Pass[08.1988 - 01.1990] 3FE..FJ62 ＊Ｈ，Ｌ＝１２５ |
99555-10200 |
from US $5 |
||
|
22210E
|
22210E
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-13001 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1988 - 01.1990] 3FE..FJ62 |
96135-51300 |
from US $1.86 |
||
|
22210F
|
22210F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-13001 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[08.1988 - 01.1990] 3FE..FJ62 |
96135-51300 |
from US $1.86 |
||
|
22216
|
22216
22216-74010
Screw, Dash Pot Adjusting
[08.1988 - 01.1990] 3FE..FJ62 |
22216-74010 |
— | ||
|
22270
|
22270
22270-61010
Valve Assy, Idle Speed Control(For Thlottle Body)
[08.1988 - 01.1990] 3FE..FJ62 |
22270-61010 |
— | ||
|
22270A
|
22270A
22233-61010
Hose, Air, No.1(For Idle Speed Control Valve)
[08.1988 - 01.1990] 3FE..FJ62 |
22233-61010 |
— | ||
|
22270B
|
22270B
90467-22003
Clip(For Ventilation Hose No.2)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-22003 |
— | ||
| replacement | |||||
|
22270B
|
22270B
90467-21010 Clip(For Ventilation Hose No.2)[08.1988 - 01.1990] 3FE..FJ62 |
90467-21010 |
from US $2.43 |
||
|
22271
|
22271
22271-61010
Gasket, Throttle Body
[08.1988 - 01.1990] 3FE..FJ62 |
22271-61010 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-61020
Gasket, Throttle Body
[08.1988 - 01.1990] 3FE..FJ62 |
22271-61020 |
— | ||
|
22278
|
22278
22278-43011
Gasket, Idle Speed Control Valve
[08.1988 - 01.1990] 3FE..FJ62 |
22278-43011 |
— | ||
| replacement | |||||
|
22278
|
22278
22278-42010 Gasket, Idle Speed Control Valve[08.1988 - 01.1990] 3FE..FJ62 |
22278-42010 |
US $6.27 |
||
|
23250
|
23250
23209-61010
Injector Assy, Fuel
[08.1988 - 01.1990] 3FE..FJ62 |
23209-61010 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1988 - 01.1990] 3FE..FJ62 ＮＯ．１ |
90301-07001 |
from US $2.77 |
||
|
23250B
|
23250B
90301-19006 Ring, O(For Fuel Injector)[08.1988 - 01.1990] 3FE..FJ62 ＮＯ．２ |
90301-19006 |
from US $1.62 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1988 - 01.1990] 3FE..FJ62 |
90480-13005 |
from US $2.36 |
||
|
23250D
|
23250D
90561-10004 Spacer(For Fuel Injector)[08.1988 - 01.1990] 3FE..FJ62 |
90561-10004 |
US $4.30 |
||
|
23260
|
23260
23260-69025
Injector Assy, Cold Start Fuel
[08.1988 - 01.1990] 3FE..FJ62 |
23260-69025 |
— | ||
| replacement | |||||
|
23260
|
23260
23260-69026
Injector Assy, Cold Start Fuel
[08.1988 - 01.1990] 3FE..FJ62 |
23260-69026 |
— | ||
|
23270
|
23270
23207-74010 Damper Assy, Fuel Pressure Pulsation[08.1988 - 01.1990] 3FE..FJ62 |
23207-74010 |
US $90.27 |
||
| replacement | |||||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[08.1988 - 01.1990] 3FE..FJ62 |
23207-46010 |
— | ||
|
23270B
|
23270B
23232-28010
Gasket(For Fuel Pump Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
23232-28010 |
— | ||
| replacement | |||||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[08.1988 - 01.1990] 3FE..FJ62 |
23232-41081 |
from US $1.40 |
||
|
23280
|
23280
23280-61010
Regulator Assy, Fuel Pressure
[08.1988 - 01.1990] 3FE..FJ62 |
23280-61010 |
— | ||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[08.1988 - 01.1990] 3FE..FJ62 |
90301-07001 |
from US $2.77 |
||
|
23291
|
23291
23291-73010 Insulator, Injector Vibration[08.1988 - 01.1990] 3FE..FJ62 |
23291-73010 |
from US $3.19 |
||
|
23293
|
23293
23293-74010
Gasket, Cold Start Injector
[08.1988 - 01.1990] 3FE..FJ62 |
23293-74010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-42010 Gasket, Cold Start Injector[08.1988 - 01.1990] 3FE..FJ62 |
23293-42010 |
US $6.27 |
||
|
23300E
|
23300E
90923-01349
Hose, Fuel
[08.1988 - 01.1990] 3FE..FJ62 |
90923-01349 |
— | ||
|
23300P
|
23300P
23300-69025 Filter, Fuel(For Efi)[08.1988 - 01.1990] 3FE..FJ62 |
23300-69025 |
US $107.74 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[08.1988 - 01.1990] 3FE..FJ62 |
90430-12005 |
from US $0.67 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1988 - 01.1990] 3FE..FJ62 |
90401-12097 |
from US $2.87 |
||
|
23300V
|
23300V
90923-01350 Hose, Fuel(For Fuel Inlet)[08.1988 - 01.1990] 3FE..FJ62 |
90923-01350 |
US $141.23 |
||
|
23801H
|
23801H
90430-12005 Gasket(For Water Hole)[08.1988 - 01.1990] 3FE..FJ62 |
90430-12005 |
from US $0.67 |
||
|
23801P
|
23801P
23801-61030
Pipe Sub-Assy, Fuel, No.1
[08.1988 - 01.1990] 3FE..FJ62 |
23801-61030 |
— | ||
|
23802B
|
23802B
23802-61040 Pipe Sub-Assy, Fuel, No.2[08.1988 - 01.1990] 3FE..FJ62 |
23802-61040 |
US $41.79 |
||
|
23802C
|
23802C
90401-08004 Bolt Union(For Oil Jet)[08.1988 - 01.1990] 3FE..FJ62 |
90401-08004 |
US $3.14 |
||
|
23802D
|
23802D
90430-08011 Gasket[08.1988 - 01.1990] 3FE..FJ62 |
90430-08011 |
US $2.15 |
||
|
23803B
|
23803B
23803-61010
Pipe Sub-Assy, Fuel, No.3
[08.1988 - 01.1990] 3FE..FJ62 |
23803-61010 |
— | ||
|
23803C
|
23803C
90401-08004 Bolt Union(For Oil Jet)[08.1988 - 01.1990] 3FE..FJ62 |
90401-08004 |
US $3.14 |
||
|
23803D
|
23803D
90430-08011 Gasket[08.1988 - 01.1990] 3FE..FJ62 |
90430-08011 |
US $2.15 |
||
|
23807
|
23807
23807-61010
Pipe Sub-Assy, Fuel Delivery
[08.1988 - 01.1990] 3FE..FJ62 |
23807-61010 |
— | ||
|
2182138310
|
2182138310
21821-38310 Screw, 2Nd Throttle Valve Set |
21821-38310 |
from US $1.41 |
||
|
9007911003
|
9007911003
90079-11003 New Genuine Part |
90079-11003 |
from US $1.41 |
||
|
9011608108
|
9011608108
90116-08108
New Genuine Part
|
90116-08108 |
— | ||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046400334
|
9046400334
90464-00334
New Genuine Part
|
90464-00334 |
— | ||
|
9046400453
|
9046400453
90464-00453 Clamp, Throttle Cable, No.2 |
90464-00453 |
US $3.06 |
||
|
9056008024
|
9056008024
90560-08024 Spacer, No.2(For Delivery Pipe) |
90560-08024 |
US $4.51 |
||
|
9056108023
|
9056108023
90561-08023 Spacer, No.1(For Delivery Pipe) |
90561-08023 |
from US $1.90 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.97 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
