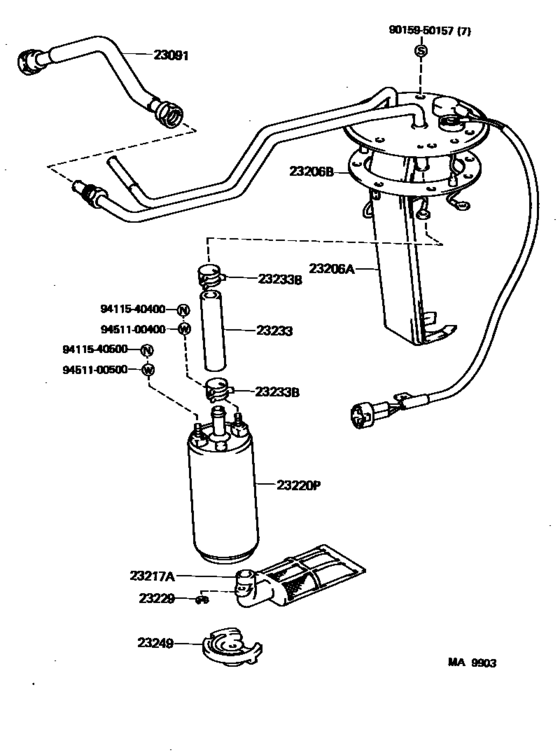

Fuel Injection System ([08.1988 - ] (8808- )3FE) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23091
|
23091
23091-61010
Tube Sub-Assy, Fuel Pump
[08.1988 - 01.1990] 3FE..FJ62 |
23091-61010 |
— | ||
|
23206A
|
23206A
23206-61010
Bracket, Fuel Pump
[08.1988 - 01.1990] 3FE..FJ62 |
23206-61010 |
— | ||
|
23206B
|
23206B
77169-14010 Gasket, Fuel Pump Bracket[08.1988 - 01.1990] 3FE..FJ62 |
77169-14010 |
from US $3.76 |
||
| replacement | |||||
|
23206B
|
23206B
77169140101
Gasket, Fuel Pump Bracket
[08.1988 - 01.1990] 3FE..FJ62 |
77169140101 |
— | ||
|
23217A
|
23217A
23217-35040
Filter, Fuel Pump
[08.1988 - 01.1990] 3FE..FJ62 ＤＥＮＳＯ |
23217-35040 |
— | ||
| replacement | |||||
|
23217A
|
23217A
23217-61010
Filter, Fuel Pump
[08.1988 - 01.1990] 3FE..FJ62 ＤＥＮＳＯ |
23217-61010 |
— | ||
|
23217A
|
23217A
23217-35081 Filter, Fuel Pump[08.1988 - 09.1989] 3FE..FJ62 ＡＩＳＡＮ |
23217-35081 |
US $15 |
||
| replacement | |||||
|
23217A
|
23217A
23217-61010
Filter, Fuel Pump
[08.1988 - 09.1989] 3FE..FJ62 ＡＩＳＡＮ |
23217-61010 |
— | ||
|
23220P
|
23220P
23220-16083 Pump Assy, Fuel[08.1988 - 01.1990] 3FE..FJ62 AISAN |
23220-16083 |
US $567.84 |
||
| replacement | |||||
|
23220P
|
23220P
23220-16430 Pump Assy, FuelFUEL [08.1988 - 01.1990] 3FE..FJ62 AISAN |
23220-16430 |
US $487.10 |
||
|
23220P
|
23220P
23220-16190 Pump Assy, Fuel[08.1988 - 01.1990] 3FE..FJ62 DENSO |
23220-16190 |
from US $432.35 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[08.1988 - 01.1990] 3FE..FJ62 |
23229-16010 |
from US $0.80 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[08.1988 - 01.1990] 3FE..FJ62 |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-16010 Hose, Fuel Pump[08.1988 - 01.1990] 3FE..FJ62 |
23239-16010 |
from US $1.50 |
||
|
23233B
|
23233B
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-13001 |
— | ||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[08.1988 - 01.1990] 3FE..FJ62 |
96135-51300 |
from US $1.86 |
||
|
23249
|
23249
23249-74150 Rubber, Cushion(For Fuel Pump)[08.1988 - 01.1990] 3FE..FJ62 |
23249-74150 |
US $19.49 |
||
|
9015950157
|
9015950157
90159-50157 SCREW WWASHER |
90159-50157 |
from US $2.15 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.33 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.97 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
