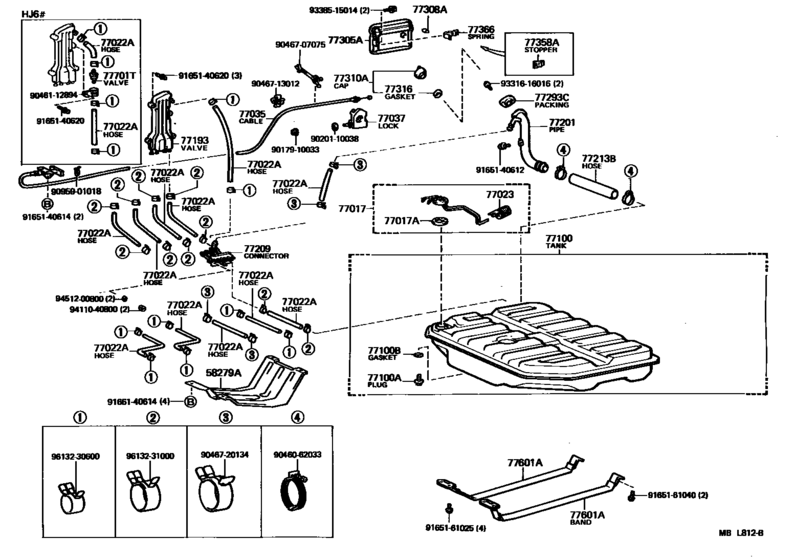

Fuel Tank & Tube ([08.1987 - ] (8708- )CBU) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58279A
|
58279A
58279-90A00
Protector, Fuel Hose
[08.1987 - 01.1990] FJ62,HJ6#..CBU |
58279-90A00 |
— | ||
|
77022A
|
77022A
77249-60040
Hose, Fuel(For Fuel Evaporative Separator)
[08.1987 - 01.1990] FJ62,HJ6#..CBU ２５０Ｘ３１２Ｘ９２ |
77249-60040 |
— | ||
|
77022A
|
77022A
77249-60050
Hose, Fuel(For Fuel Evaporative Separator)
[08.1987 - 01.1990] FJ62,HJ6#..CBU ２６５Ｘ２８５Ｘ７０ |
77249-60050 |
— | ||
|
77022A
|
77022A
90445-22015 Hose, Fuel(For Fuel Evaporative Separator)[08.1987 - 01.1990] FJ62,HJ6#..CBU 長さ＝１５０ |
90445-22015 |
US $6.41 |
||
| replacement | |||||
|
77022A
|
77022A
90445-22002
Hose, Fuel, No.1(For Fuel Tank)
[08.1987 - 01.1990] FJ62,HJ6#..CBU 長さ＝１５０ |
90445-22002 |
— | ||
|
77022A
|
77022A
90445-22904
Hose, Fuel(For Fuel Evaporative Separator)
[08.1987 - 01.1990] FJ62,HJ6#..CBU 長さ＝３００ |
90445-22904 |
— | ||
|
77022A
|
77022A
95332-10024 Hose, Fuel(For Fuel Evaporative Separator)[08.1987 - 01.1990] FJ62,HJ6#..CBU ＊Ｈ，Ｌ＝２４０ |
95332-10024 |
US $9.32 |
||
| replacement | |||||
|
77022A
|
77022A
95332-10030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1987 - 01.1990] FJ62,HJ6#..CBU ＊Ｈ，Ｌ＝２４０ |
95332-10030 |
US $17.30 |
||
|
77022A
|
77022A
95332-10036 Hose, Fuel(For Fuel Evaporative Separator)[08.1987 - 01.1990] FJ62,HJ6#..CBU ＊Ｈ，Ｌ＝３６０ |
95332-10036 |
US $15.58 |
||
| replacement | |||||
|
77022A
|
77022A
95332-10040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1987 - 01.1990] FJ62,HJ6#..CBU ＊Ｈ，Ｌ＝３６０ |
95332-10040 |
US $19.49 |
||
|
77022A
|
77022A
95333-06040 Hose[08.1987 - 01.1990] HJ6# ＊Ｈ，Ｌ＝４００; FJ62..CBU ＊Ｈ，Ｌ＝４００ |
95333-06040 |
from US $13.08 |
||
|
77022A
|
77022A
95333-06060 Hose, Fuel[08.1987 - 01.1990] FJ62..CBU ＊Ｈ，Ｌ＝６００ |
95333-06060 |
from US $17.08 |
||
|
77035
|
77035
77030-90A00
Cable Sub-Assy, Fuel Lid Lock Control
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX |
77030-90A00 |
— | ||
|
77037
|
77037
77037-90K00 Lock Sub-Assy, Fuel Tank Cap[08.1987 - 01.1990] FJ62,HJ6#..GX,VX |
77037-90K00 |
from US $14.97 |
||
|
77100
|
77100
77001-60220
Tank Assy, Fuel
[08.1988 - 01.1990] FJ62..EFI |
77001-60220 |
— | ||
| replacement | |||||
|
77100
|
77100
77001-60221
Tank Assy, Fuel
[08.1988 - 01.1990] FJ62..EFI |
77001-60221 |
— | ||
|
77100A
|
77100A
90105-12018 Plug(For Fuel Tank)[08.1987 - 01.1990] FJ62,HJ6# |
90105-12018 |
US $6.81 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[08.1987 - 01.1990] FJ62,HJ6# |
90430-12245 |
from US $0.86 |
||
|
77193
|
77193
77193-60031
Valve, Fuel Liquid Vapor Separator
[08.1987 - 01.1990] FJ62,HJ6#..CBU |
77193-60031 |
— | ||
|
77201
|
77201
77201-60130
Pipe Sub-Assy, Fuel Tank Inlet
[08.1987 - 01.1990] FJ62,HJ6#..CBU |
77201-60130 |
— | ||
|
77209
|
77209
77209-60041
Connector Sub-Assy, Fuel Tube
[08.1987 - 01.1990] FJ62,HJ6#..CBU |
77209-60041 |
— | ||
|
77213B
|
77213B
77213-60030 Hose, Fuel Tank Sub Inlet[08.1987 - 01.1990] FJ62,HJ6#..CBU |
77213-60030 |
from US $34.50 |
||
|
77293C
|
77293C
77293-60030 Shield, Fuel Tank, Inlet, No.1[08.1987 - 01.1990] FJ62,HJ6#..CBU |
77293-60030 |
from US $5.66 |
||
|
77305A
|
77305A
77305-90A01 Lid Sub-Assy, Fuel Filler Opening[08.1987 - 01.1990] FJ62,HJ6#..CBU |
77305-90A01 |
US $99.01 |
||
|
77308A
|
77308A
90541-08003 Cushion(For Inspection Opening)[08.1987 - 01.1990] FJ62,HJ6#..CBU |
90541-08003 |
from US $1.61 |
||
|
77310A
|
77310A
77310-12100 Cap Assy, Fuel Tank[08.1987 - 01.1990] FJ62..CBU |
77310-12100 |
from US $29.93 |
||
|
77316
|
77316
77316-12050 Gasket (For Fuel Tank Cap)[08.1987 - 01.1990] FJ62,HJ6#..CBU |
77316-12050 |
from US $4.07 |
||
|
77358A
|
77358A
77358-12020 Stopper, Fuel Filler Opening Lid[08.1987 - 01.1990] FJ62,HJ6#..CBU |
77358-12020 |
US $2.62 |
||
|
77366
|
77366
77366-12010 Spring, Fuel Filler Opening Lid Hinge[08.1987 - 01.1990] FJ62,HJ6#..GX,VX |
77366-12010 |
from US $2.19 |
||
|
77601A
|
77601A
77601-60060
Band Sub-Assy, Fuel Tank, No.1
[08.1987 - 01.1990] FJ62,HJ6#..CBU 右側 |
77601-60060 |
— | ||
|
77601A
|
77601A
77602-60040
Band Sub-Assy, Fuel Tank, No.1
[08.1987 - 01.1990] FJ62,HJ6#..CBU 左側 |
77602-60040 |
— | ||
|
9017910033
|
9017910033
90179-10033 Nut (For Front Wiper Arm Setting) |
90179-10033 |
US $1.65 |
||
|
9020110038
|
9020110038
90201-10038 Washer |
90201-10038 |
US $3.05 |
||
|
9046062033
|
9046062033
90460-62033
Clamp(For Air Cleaner Hose, No.1)
|
90460-62033 |
— | ||
| replacement | |||||
|
9046062033
|
9046062033
96111-10620 Clamp, Hose(For Air Connector) |
96111-10620 |
from US $3.94 |
||
|
9046112894
|
9046112894
90461-12894 New Genuine Part |
90461-12894 |
US $12.52 |
||
|
9046707075
|
9046707075
90467-07075
New Genuine Part
|
90467-07075 |
— | ||
|
9046713012
|
9046713012
90467-13012 New Genuine Part |
90467-13012 |
US $2.33 |
||
|
9046720134
|
9046720134
90467-20134 Clip(For Ventilation Hose No.2) |
90467-20134 |
from US $1.58 |
||
|
9095901018
|
9095901018
90959-01018 New Genuine Part |
90959-01018 |
US $1.31 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
from US $0.84 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.48 |
||
|
9165161040
|
9165161040
91651-61040 Bolt (For Transfer Case) |
91651-61040 |
US $2.15 |
||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.97 |
||
|
9331616016
|
9331616016
93316-16016
New Genuine Part
|
93316-16016 |
— | ||
| replacement | |||||
|
9331616016
|
9331616016
90159-60286 SCREW |
90159-60286 |
from US $0.95 |
||
|
9338515014
|
9338515014
93385-15014 Screw(For Steering Tilt Lever) |
93385-15014 |
US $1.97 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613231000
|
9613231000
96132-31000
Clip(For Ventilation Tube)
|
96132-31000 |
— | ||
| replacement | |||||
|
9613231000
|
9613231000
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
from US $1.44 |
||
