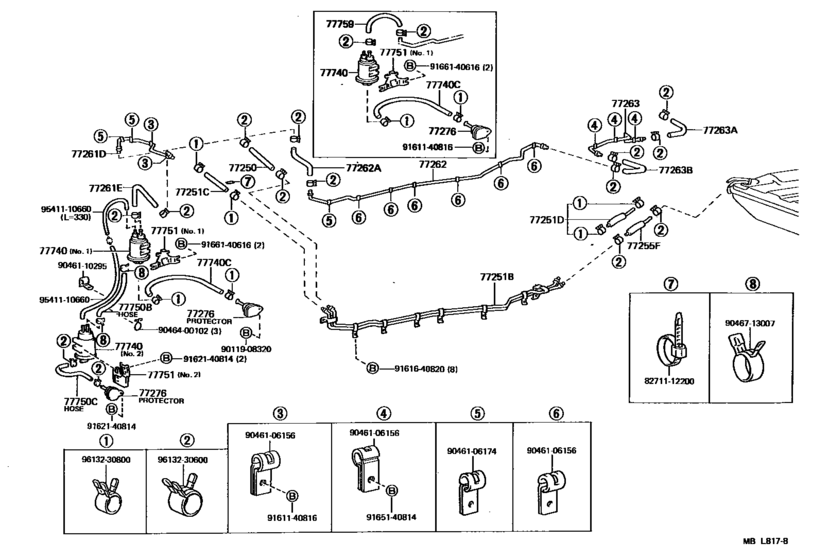

Fuel Tank & Tube ([08.1987 - ] (8708- )FJ62..CBU) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77250
|
77250
77250-60081 Hose Assy, Fuel Return[08.1988 - 01.1990] FJ62..EFI |
77250-60081 |
US $48.63 |
||
|
77251B
|
77251B
77205-60140
Tube, Fuel Main
[08.1988 - 01.1990] FJ62..EFI |
77205-60140 |
— | ||
|
77255F
|
77255F
77250-60090 Hose, Fuel, No.2 (For Fuel Return Tube)[08.1988 - 01.1990] FJ62..EFI |
77250-60090 |
US $19.80 |
||
|
77261D
|
77261D
77263-60070 Tube, Fuel Tank To Canister[08.1987 - 01.1990] FJ62 |
77263-60070 |
US $26.64 |
||
|
77261E
|
77261E
95333-06030
Hose, Fuel
[08.1987 - 01.1990] FJ62 ＊Ｈ，Ｌ＝３００ |
95333-06030 |
— | ||
| replacement | |||||
|
77261E
|
77261E
95338-06030 HOSE, FUEL[08.1987 - 01.1990] FJ62 ＊Ｈ，Ｌ＝３００ |
95338-06030 |
from US $10.39 |
||
|
77262
|
77262
77261-60080
Tube, Fuel Emission, No.2
[08.1987 - 01.1990] FJ62 |
77261-60080 |
— | ||
|
77262A
|
77262A
90447-12058 Hose, Fuel[08.1988 - 01.1990] FJ62..EFI |
90447-12058 |
US $11.50 |
||
|
77263
|
77263
77244-60120 Tube, Fuel Emission, No.3[08.1987 - 01.1990] FJ62..CBU |
77244-60120 |
US $12.81 |
||
|
77263A
|
77263A
95333-06030
Hose, Fuel
[08.1987 - 01.1990] FJ62..CBU |
95333-06030 |
— | ||
| replacement | |||||
|
77263A
|
77263A
95338-06030 HOSE, FUEL[08.1987 - 01.1990] FJ62..CBU |
95338-06030 |
from US $10.39 |
||
|
77263B
|
77263B
95333-06030
Hose, Fuel
[08.1987 - 01.1990] FJ62..CBU |
95333-06030 |
— | ||
| replacement | |||||
|
77263B
|
77263B
95338-06030 HOSE, FUEL[08.1987 - 01.1990] FJ62..CBU |
95338-06030 |
from US $10.39 |
||
|
77276
|
77276
77276-60020
Protector, Fuel Hose
[08.1987 - 01.1990] FJ62 |
77276-60020 |
— | ||
|
77740
|
77740
77704-60050
Canister Assy, Charcoal
[08.1987 - 01.1990] FJ62 ＮＯ．１ |
77704-60050 |
— | ||
|
77740C
|
77740C
95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)[08.1987 - 01.1990] FJ62 ＊Ｈ，Ｌ＝３００ |
95333-08030 |
US $11.83 |
||
|
77751
|
77751
77751-32010
Bracket, Charcoal Canister Base
[08.1987 - 01.1990] FJ62 ＮＯ．１ |
77751-32010 |
— | ||
|
77759
|
77759
95333-06010 Hose, Fuel[08.1988 - 01.1990] FJ62..EFI ＊Ｈ，Ｌ＝４０ |
95333-06010 |
US $5.38 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9011908320
|
9011908320
90119-08320 Screw Or Bolt(for Valve Rocker Shaft Lock) |
90119-08320 |
US $1.89 |
||
| replacement | |||||
|
9011908320
|
9011908320
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9046106156
|
9046106156
90461-06156 New Genuine Part |
90461-06156 |
US $2.18 |
||
|
9046106174
|
9046106174
90461-06174 New Genuine Part |
90461-06174 |
US $1.31 |
||
|
9046110295
|
9046110295
90461-10295 New Genuine Part |
90461-10295 |
US $7.72 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.93 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $1.61 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.43 |
||
|
9541110660
|
9541110660
95411-10660 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10660 |
US $12.23 |
||
| replacement | |||||
|
9541110660
|
9541110660
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
