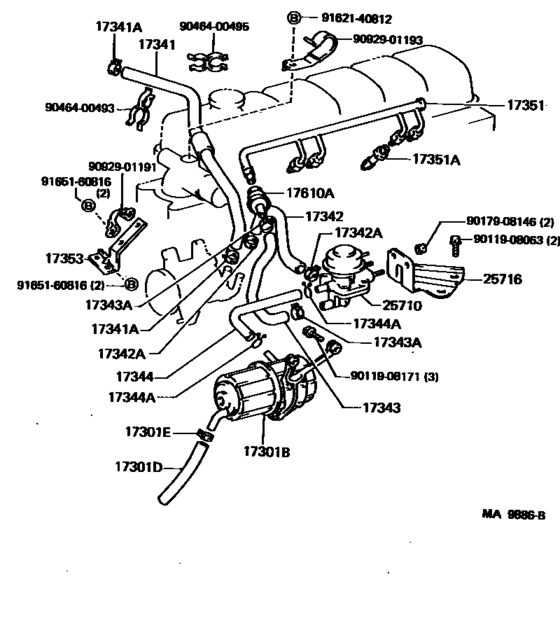

Manifold Air Injection System ([08.1988 - ] (8808- )3FE) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17301B
|
17301B
17301-61010 Silencer Sub-Assy, Air Suction[08.1988 - 01.1990] 3FE..FJ62 |
17301-61010 |
US $152.88 |
||
|
17301D
|
17301D
90445-31018 Hose(For Air Suction Silencer)[08.1988 - 01.1990] 3FE..FJ62 |
90445-31018 |
US $26.94 |
||
|
17301E
|
17301E
90467-28003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-28003 |
— | ||
| replacement | |||||
|
17301E
|
17301E
90467-28007 Clip Or Clamp(For Ventilation Hose)[08.1988 - 01.1990] 3FE..FJ62 |
90467-28007 |
from US $2.98 |
||
|
17341
|
17341
17341-61030
Hose, No.1(For Air Injection System)
[08.1988 - 01.1990] 3FE..FJ62 |
17341-61030 |
— | ||
|
17341A
|
17341A
90467-28003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-28003 |
— | ||
| replacement | |||||
|
17341A
|
17341A
90467-28007 Clip Or Clamp(For Ventilation Hose)[08.1988 - 01.1990] 3FE..FJ62 |
90467-28007 |
from US $2.98 |
||
|
17342
|
17342
17342-61040
Hose, No.2(For Air Injection System)
[08.1988 - 01.1990] 3FE..FJ62 |
17342-61040 |
— | ||
|
17342A
|
17342A
90467-28003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-28003 |
— | ||
| replacement | |||||
|
17342A
|
17342A
90467-28007 Clip Or Clamp(For Ventilation Hose)[08.1988 - 01.1990] 3FE..FJ62 |
90467-28007 |
from US $2.98 |
||
|
17343
|
17343
17343-61030
Hose, No.3(For Air Injection System)
[08.1988 - 01.1990] 3FE..FJ62 |
17343-61030 |
— | ||
|
17343A
|
17343A
90467-28003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-28003 |
— | ||
| replacement | |||||
|
17343A
|
17343A
90467-28007 Clip Or Clamp(For Ventilation Hose)[08.1988 - 01.1990] 3FE..FJ62 |
90467-28007 |
from US $2.98 |
||
|
17344
|
17344
17344-61020 Hose, No.4(For Air Injection System)[08.1988 - 01.1990] 3FE..FJ62 |
17344-61020 |
US $80.08 |
||
|
17344A
|
17344A
90467-23001
Clip Or Clamp(For Ventilation Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-23001 |
— | ||
| replacement | |||||
|
17344A
|
17344A
96134-52100 Clip(For Ventilation Hose)[08.1988 - 01.1990] 3FE..FJ62 |
96134-52100 |
from US $3.31 |
||
|
17351
|
17351
17306-61030
Manifold, Air Injection
[08.1988 - 01.1990] 3FE..FJ62 |
17306-61030 |
— | ||
|
17351A
|
17351A
90404-14012
Union, Air Injection
[08.1988 - 01.1990] 3FE..FJ62 |
90404-14012 |
— | ||
|
17353
|
17353
17353-61010 Support, Air Injection Manifold[08.1988 - 01.1990] 3FE..FJ62 |
17353-61010 |
US $16.31 |
||
|
17610A
|
17610A
90917-10076
Valve, Check(For Air Injection System)
[08.1988 - 01.1990] 3FE..FJ62 |
90917-10076 |
— | ||
|
25710
|
25710
25710-61030 Valve Assy, Air Switching[08.1988 - 01.1990] 3FE..FJ62 |
25710-61030 |
US $294.11 |
||
|
25716
|
25716
25716-61020 Bracket, Air Switching Valve[08.1988 - 01.1990] 3FE..FJ62 |
25716-61020 |
US $5.39 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.51 |
||
|
9011908171
|
9011908171
90119-08171
New Genuine Part
|
90119-08171 |
— | ||
| replacement | |||||
|
9011908171
|
9011908171
90119-08806 BOLT WWASHER |
90119-08806 |
US $3.58 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046400493
|
9046400493
90464-00493
New Genuine Part
|
90464-00493 |
— | ||
| replacement | |||||
|
9046400493
|
9046400493
90464-00587
New Genuine Part
|
90464-00587 |
— | ||
|
9046400495
|
9046400495
90464-00495
New Genuine Part
|
90464-00495 |
— | ||
|
9092901191
|
9092901191
90929-01191 New Genuine Part |
90929-01191 |
US $4.37 |
||
|
9092901193
|
9092901193
90929-01193
New Genuine Part
|
90929-01193 |
— | ||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
