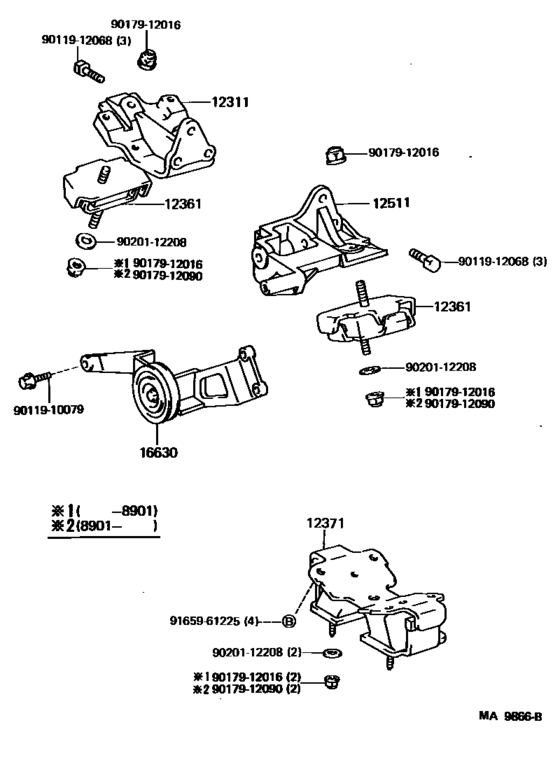

Mounting ([08.1988 - ] (8808- )3FE) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-61071
Bracket, Engine Mounting, Front No.1 Rh
[08.1987 - 01.1990] 3F#..FJ62 |
12311-61071 |
— | ||
|
12361
|
12361
12361-61030
Insulator, Engine Mounting, Front
[08.1987 - 09.1988] 3F#..FJ62 |
12361-61030 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-61031 Insulator, Engine Mounting, Front[08.1987 - 09.1988] 3F#..FJ62 |
12361-61031 |
from US $89.76 |
||
|
12361
|
12361
12361-61031 Insulator, Engine Mounting, Front[09.1988 - 01.1990] 3F#..FJ62 |
12361-61031 |
from US $89.76 |
||
|
12371
|
12371
12371-61040
Insulator, Engine Mounting, Rear No.1
[08.1988 - 09.1988] 3FE..FJ62 |
12371-61040 |
— | ||
| replacement | |||||
|
12371
|
12371
12371-61041
Insulator, Engine Mounting, Rear No.1
[08.1988 - 09.1988] 3FE..FJ62 |
12371-61041 |
— | ||
|
12371
|
12371
12371-61041
Insulator, Engine Mounting, Rear No.1
[09.1988 - 01.1990] 3FE..FJ62 |
12371-61041 |
— | ||
|
12511
|
12511
12511-61060 Bracket, Alternator, No.1[08.1988 - 09.1989] 3FE..FJ62 |
12511-61060 |
US $132.50 |
||
| replacement | |||||
|
12511
|
12511
12511-61061 Bracket, Alternator, No.1[08.1988 - 09.1989] 3FE..FJ62 |
12511-61061 |
US $131.04 |
||
|
12511
|
12511
12511-61061 Bracket, Alternator, No.1[09.1989 - 01.1990] 3FE..FJ62 |
12511-61061 |
US $131.04 |
||
|
16630
|
16630
16630-61020
Pulley Assy, Idler
[08.1988 - 01.1990] 3FE..FJ62 |
16630-61020 |
— | ||
|
9011910079
|
9011910079
90119-10079 Bolt(For Front Suspension Lower Arm No.1 Rh) |
90119-10079 |
US $4.30 |
||
|
9011912068
|
9011912068
90119-12068
Bolt, Hexagon(For Front Disc Brake Caliper)
|
90119-12068 |
— | ||
|
9017912016
|
9017912016
90179-12016 NUT |
90179-12016 |
US $2.51 |
||
|
9017912090
|
9017912090
90179-12090 NUT |
90179-12090 |
from US $1.37 |
||
|
9020112208
|
9020112208
90201-12208 WASHER |
90201-12208 |
from US $1.25 |
||
|
9165961225
|
9165961225
91659-61225 BOLT |
91659-61225 |
US $3.76 |
||
