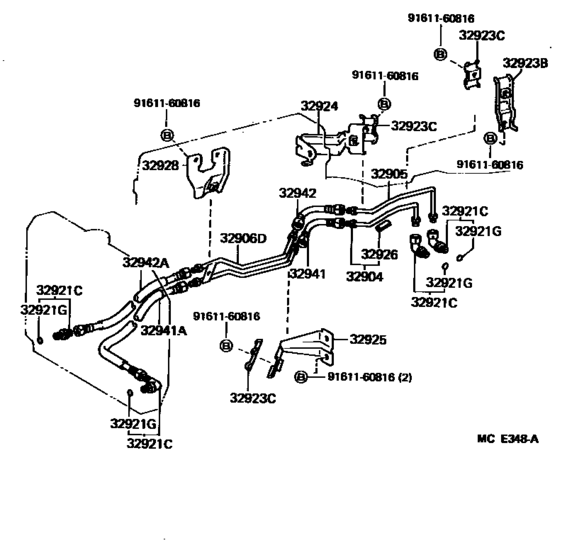

Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )EFI) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32904
|
32904
32904-60012 Tube Sub-Assy, Oil Cooler Inlet, No.1[08.1988 - 01.1990] FJ62..EFI |
32904-60012 |
US $133.95 |
||
| replacements | |||||
|
32904
|
32904
32921-60012
Tube, Oil Cooler Inlet, No.1
[08.1988 - 01.1990] FJ62..EFI |
32921-60012 |
— | ||
|
32904
|
32904
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1988 - 01.1990] FJ62..EFI |
32926-30020 |
US $3.05 |
||
|
32904
|
32904
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1988 - 01.1990] FJ62..EFI |
32943-60010 |
— | ||
|
32905
|
32905
32905-60012 Tube Sub-Assy, Oil Cooler Outlet, No.1[08.1988 - 01.1990] FJ62..EFI |
32905-60012 |
US $133.95 |
||
| replacements | |||||
|
32905
|
32905
32922-60012
Tube, Oil Cooler Outlet, No.1
[08.1988 - 01.1990] FJ62..EFI |
32922-60012 |
— | ||
|
32905
|
32905
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1988 - 01.1990] FJ62..EFI |
32926-30020 |
US $3.05 |
||
|
32905
|
32905
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1988 - 01.1990] FJ62..EFI |
32943-60010 |
— | ||
|
32906D
|
32906D
32906-60012 Tube Sub-Assy, Oil Cooler, No.2[08.1988 - 01.1990] FJ62..EFI |
32906-60012 |
US $218.40 |
||
| replacements | |||||
|
32906D
|
32906D
32907-60011
Tube Sub-assy, Oil Cooler Outlet, No.2
[08.1988 - 01.1990] FJ62..EFI |
32907-60011 |
— | ||
|
32906D
|
32906D
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1988 - 01.1990] FJ62..EFI |
32926-30020 |
US $3.05 |
||
|
32906D
|
32906D
32942-60010
Hose(For Oil Cooler Outlet)
[08.1988 - 01.1990] FJ62..EFI |
32942-60010 |
— | ||
|
32906D
|
32906D
32942-60030
Hose, Oil Cooler Inlet, No.2
[08.1988 - 01.1990] FJ62..EFI |
32942-60030 |
— | ||
|
32921C
|
32921C
90407-14005
Union(For Oil Cooler Tube)
[08.1987 - 01.1990] FJ62,HJ6#..ATM RADIATOR SIDE OUTLET |
90407-14005 |
— | ||
|
32921C
|
32921C
90407-16006
Union(For Oil Cooler Tube)
[08.1987 - 01.1990] FJ62,HJ6#..ATM TRANSMISSION SIDE |
90407-16006 |
— | ||
|
32921C
|
32921C
90407-16013 Union(For Oil Cooler Tube)[08.1988 - 01.1990] FJ62..EFI RADIATOR SIDE INLET |
90407-16013 |
US $8.15 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90301-11006 |
from US $2.43 |
||
|
32923B
|
32923B
32923-36010 Clamp, Automatic Transmission Oil Cooler Tube, No.1[08.1987 - 01.1990] FJ62,HJ6#..ATM |
32923-36010 |
US $8.74 |
||
|
32923C
|
32923C
90462-12038
Clamp, Automatic Transmission Oil Cooler Tube, No.4
[08.1987 - 01.1990] FJ62,HJ61..ATM |
90462-12038 |
— | ||
|
32924
|
32924
32924-60011 Clamp, Oil Cooler Tube, No.2[08.1988 - 01.1990] FJ62..EFI |
32924-60011 |
US $32.61 |
||
|
32925
|
32925
32925-60030 Clamp, Oil Cooler Tube, No.3[08.1988 - 01.1990] FJ62..EFI |
32925-60030 |
US $32.61 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1988 - 01.1990] FJ62..EFI 長さ＝３５，内径＝１０ |
32926-30020 |
US $3.05 |
||
|
32928
|
32928
32928-60011 Clamp, Flexible Hose, No.1[08.1988 - 01.1990] FJ62..EFI |
32928-60011 |
US $27.96 |
||
|
32941
|
32941
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1987 - 01.1990] FJ62,HJ60..ATM |
32943-60010 |
— | ||
|
32941A
|
32941A
32942-60030
Hose, Oil Cooler Inlet, No.2
[08.1988 - 01.1990] FJ62..EFI |
32942-60030 |
— | ||
|
32942
|
32942
32943-60010
Hose, Oil Cooler Inlet, No.1
[08.1987 - 01.1990] FJ62,HJ60..ATM |
32943-60010 |
— | ||
|
32942A
|
32942A
32942-60010
Hose(For Oil Cooler Outlet)
[08.1988 - 01.1990] FJ62..EFI |
32942-60010 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
