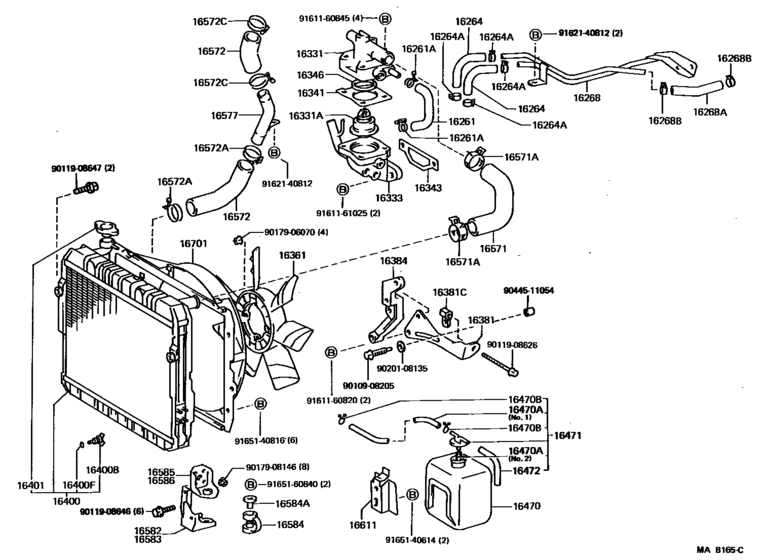

Radiator & Water Outlet ([08.1988 - ] (8808- )3FE) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-61020 Hose, Water By-Pass[08.1987 - 01.1990] 3F#..FJ62 |
16261-61020 |
from US $10.93 |
||
|
16261A
|
16261A
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)[08.1987 - 01.1990] 3F#..FJ62 |
96112-10250 |
from US $2.22 |
||
|
16264
|
16264
16264-61010 Hose, Water By-Pass, No.2[08.1988 - 01.1990] 3FE..FJ62 |
16264-61010 |
US $9.86 |
||
|
16264A
|
16264A
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-13001 |
— | ||
| replacement | |||||
|
16264A
|
16264A
96135-51300 Clamp, Hose[08.1988 - 01.1990] 3FE..FJ62 |
96135-51300 |
from US $1.86 |
||
|
16268
|
16268
16268-61010
Pipe, Water By-Pass, No.1
[08.1988 - 01.1990] 3FE..FJ62 |
16268-61010 |
— | ||
|
16268A
|
16268A
99555-10125
Hose(For Water By-Pass Pipe)
[08.1988 - 01.1990] 3FE..FJ62 ＊Ｈ，Ｌ＝１２５ |
99555-10125 |
— | ||
| replacement | |||||
|
16268A
|
16268A
99555-10200 Hose, Water By-Pass[08.1988 - 01.1990] 3FE..FJ62 ＊Ｈ，Ｌ＝１２５ |
99555-10200 |
from US $5 |
||
|
16268B
|
16268B
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-13001 |
— | ||
| replacement | |||||
|
16268B
|
16268B
96135-51300 Clamp, Hose[08.1988 - 01.1990] 3FE..FJ62 |
96135-51300 |
from US $1.86 |
||
|
16331
|
16331
16303-61020
Outlet, Water
[08.1988 - 01.1990] 3FE..FJ62 |
16303-61020 |
— | ||
|
16331A
|
16331A
90916-03052 Thermostat[05.1988 - 01.1990] 3F#..FJ62 ＊ＷＡＸ ８８−１００ |
90916-03052 |
from US $40.45 |
||
|
16333
|
16333
16304-61030
Housing, Water Outlet
[08.1988 - 01.1990] 3FE..FJ62 |
16304-61030 |
— | ||
|
16341
|
16341
16341-61020
Gasket, Water Outlet
[08.1987 - 01.1990] 3F#..FJ62 |
16341-61020 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-61030 Gasket, Water Outlet[08.1987 - 01.1990] 3F#..FJ62 |
16341-61030 |
from US $4.31 |
||
|
16343
|
16343
16343-61010
Gasket, Water Outlet Housing
[08.1987 - 01.1990] 3F#..FJ62 |
16343-61010 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-61020 Gasket, Water Outlet Housing[08.1987 - 01.1990] 3F#..FJ62 |
16343-61020 |
from US $3.08 |
||
|
16346
|
16346
90430-43002 Gasket, Thermostat[08.1987 - 01.1990] 3F#..FJ62 |
90430-43002 |
US $5.91 |
||
|
16361
|
16361
16361-61020 Fan[08.1987 - 01.1990] 3F#..FJ62 |
16361-61020 |
from US $116.85 |
||
|
16381
|
16381
16381-61050
Bar, Fan Belt Adjusting
[08.1988 - 01.1990] 3FE..FJ62 |
16381-61050 |
— | ||
|
16381C
|
16381C
17317-61020
Bar, Fan Belt Adjusting, No.2
[08.1988 - 01.1990] 3FE..FJ62 |
17317-61020 |
— | ||
|
16384
|
16384
16384-61010 Bracket, Fan Belt Adjusting Bar[08.1988 - 01.1990] 3FE..FJ62 |
16384-61010 |
US $81.54 |
||
|
16400
|
16400
16400-61140
Radiator Assy
[08.1988 - 01.1990] 3FE..FJ62 |
16400-61140 |
— | ||
|
16400B
|
16400B
16417-24200 Plug, Radiator Drain Cock[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
16417-24200 |
from US $3.50 |
||
|
16400F
|
16400F
16418-24200 Packing(For Radiator Drain Cock)[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
16418-24200 |
from US $1.24 |
||
|
16401
|
16401
16401-71010
Cap Sub-Assy(For Water Outlet)
[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
16401-71010 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-54750 Radiator Cap[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
16401-54750 |
from US $16.13 |
||
|
16470
|
16470
16480-90A00 Tank Assy, Radiator Reserve[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
16480-90A00 |
from US $58.46 |
||
|
16470A
|
16470A
90099-33534 Hose Or Pipe(For Radiator Reserve Tank)[08.1988 - 01.1990] 3FE..FJ62 ＊Ｈ，Ｌ＝７６０,ＮＯ．１ |
90099-33534 |
US $5.42 |
||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[08.1988 - 01.1990] 3FE..FJ62 ＊Ｈ，Ｌ＝１５０,ＮＯ．２ |
90445-12078 |
from US $6.57 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
90467-11085 |
from US $0.70 |
||
|
16471
|
16471
16405-61030
Cap Sub-Assy, Reserve Tank
[08.1988 - 01.1990] 3FE..FJ62 |
16405-61030 |
— | ||
|
16472
|
16472
85338-22020 Hose, Breather[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
85338-22020 |
US $2.45 |
||
|
16571
|
16571
16571-61110 Hose, Radiator, Inlet[08.1987 - 01.1990] 3F#..FJ62 |
16571-61110 |
from US $23.92 |
||
|
16571A
|
16571A
90467-42001
Clamp Or Clip, Hose(For Radiator Inlet)
[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
90467-42001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
90466-41008 |
from US $4.07 |
||
|
16572
|
16572
16572-61020 Hose, Radiator, Outlet[08.1987 - 01.1990] 3F#..FJ62..CBU WATER PUMP SIDE |
16572-61020 |
from US $10.03 |
||
|
16572
|
16572
16573-61040 Hose, Radiator, Outlet[08.1987 - 01.1990] 3F#..FJ62..CBU ラジエータ側 |
16573-61040 |
from US $14.67 |
||
|
16572A
|
16572A
96111-10500 Clamp, Sub Radiator Inlet Hose[03.1988 - 01.1990] 3F#..FJ62..CBU |
96111-10500 |
from US $2.15 |
||
|
16572C
|
16572C
96111-10500 Clamp, Sub Radiator Inlet Hose[03.1988 - 01.1990] 3F#..FJ62..CBU |
96111-10500 |
from US $2.15 |
||
|
16577
|
16577
16577-61130 Pipe, Radiator, No.7[08.1987 - 01.1990] 3F#..FJ62..CBU |
16577-61130 |
from US $59.81 |
||
|
16582
|
16582
16582-61010 Bracket, Radiator, No.1[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
16582-61010 |
US $37.13 |
||
|
16583
|
16583
16583-61010 Bracket, Radiator, No.2[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
16583-61010 |
US $37.13 |
||
|
16584
|
16584
16584-61010
Insulator, Radiator Mounting
[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
16584-61010 |
— | ||
|
16584A
|
16584A
90561-09005
Spacer, Radiator Mounting Insulator
[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
90561-09005 |
— | ||
|
16585
|
16585
16585-61010 Bracket, Radiator, No.3[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
16585-61010 |
US $30.87 |
||
|
16586
|
16586
16586-61010 Bracket, Radiator, No.4[08.1987 - 01.1990] 3F#..FJ62; 12HT,2H..HJ6# |
16586-61010 |
US $30.87 |
||
|
16611
|
16611
16611-61020 Bracket(For Radiator Reserve Tank)[08.1987 - 01.1990] 3F#..FJ62..CBU |
16611-61020 |
US $21.50 |
||
|
16701
|
16701
16711-61241
Shroud Sub-Assy, Fan
[08.1988 - 01.1990] 3F#..FJ62 |
16711-61241 |
— | ||
|
9010908205
|
9010908205
90109-08205
New Genuine Part
|
90109-08205 |
— | ||
|
9011908626
|
9011908626
90119-08626
New Genuine Part
|
90119-08626 |
— | ||
| replacement | |||||
|
9011908626
|
9011908626
90119-08888 New Genuine Part |
90119-08888 |
US $4.66 |
||
|
9011908646
|
9011908646
90119-08646
New Genuine Part
|
90119-08646 |
— | ||
| replacement | |||||
|
9011908646
|
9011908646
90119-08813 BOLT W-WASHER |
90119-08813 |
from US $2.87 |
||
|
9011908647
|
9011908647
90119-08647
New Genuine Part
|
90119-08647 |
— | ||
| replacement | |||||
|
9011908647
|
9011908647
91651-G0830
New Genuine Part
|
91651-G0830 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9020108135
|
9020108135
90201-08135 Washer, Plate (For Control Shaft Lower Bracket) |
90201-08135 |
US $2.53 |
||
|
9044511054
|
9044511054
90445-11054
New Genuine Part
|
90445-11054 |
— | ||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161160845
|
9161160845
91611-60845
Bolt(for Clutch Release Cylinder Setting)
|
91611-60845 |
— | ||
| replacement | |||||
|
9161160845
|
9161160845
91611-B0845 Bolt(for Clutch Release Cylinder Setting) |
91611-B0845 |
US $3.05 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165160840
|
9165160840
91651-60840 BOLT |
91651-60840 |
US $1.61 |
||
