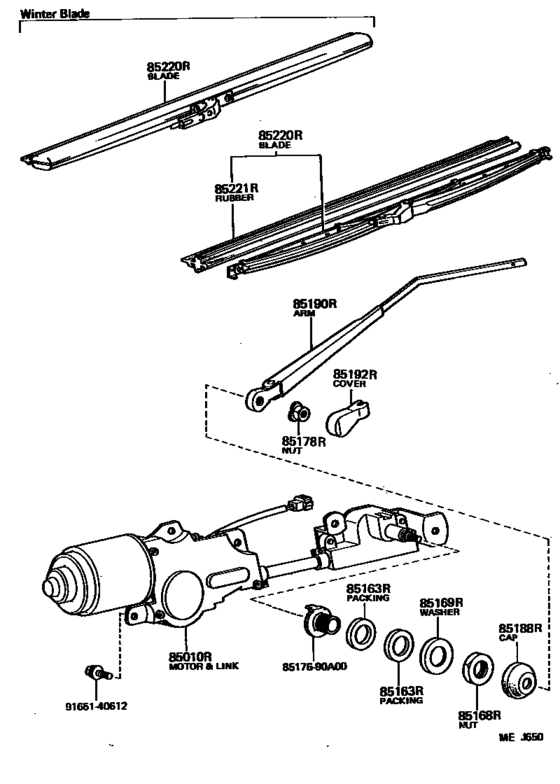

Rear Wiper ([08.1987 - ] (8708- )HRF) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85010R
|
85010R
85010-90A00 Motor & Link Assy, Rr Wiper[08.1988 - 01.1990] FJ62..EFI |
85010-90A00 |
US $556.19 |
||
|
85163R
|
85163R
85174-12320
Packing, Rear Wiper Pivot, No.1
[08.1987 - 01.1990] FJ62,HJ6#..HRF |
85174-12320 |
— | ||
|
85168R
|
85168R
90099-05141 Nut, Windshield Wiper Link Pivot[08.1987 - 01.1990] FJ62,HJ6#..HRF |
90099-05141 |
US $0.79 |
||
|
85169R
|
85169R
90099-01458
Washer, Rear Wiper Link Pivot, No.1
[08.1987 - 01.1990] FJ62,HJ6#..HRF |
90099-01458 |
— | ||
|
85178R
|
85178R
90179-06158 Nut, Rear Wiper Link Pivot, No.2[08.1987 - 01.1990] FJ62,HJ6#..HRF |
90179-06158 |
from US $0.95 |
||
|
85188R
|
85188R
85178-12320
Cap, Wiper Link
[08.1987 - 01.1990] FJ62,HJ6#..HRF |
85178-12320 |
— | ||
|
85190R
|
85190R
85190-90A06 Arm Assy, Rear Wiper[08.1987 - 01.1990] FJ62,HJ6#..HRF |
85190-90A06 |
from US $40.76 |
||
|
85192R
|
85192R
85195-95700 Cover, Windshield Wiper Arm[08.1987 - 01.1990] FJ62,HJ6#..HRF |
85195-95700 |
from US $6.67 |
||
|
85220R
|
85220R
85220-90A02 Blade Assy, Windshield Wiper[08.1987 - 01.1990] FJ62,HJ6#..HRF |
85220-90A02 |
from US $16.84 |
||
|
85220R
|
85220R
85220-91705
Blade Assy, Rear Wiper
[08.1987 - 01.1990] FJ62,HJ6#..HRF ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ |
85220-91705 |
— | ||
| replacements | |||||
|
85220R
|
85220R
85291-13070 Blade,rear Wiper, Winter[08.1987 - 01.1990] FJ62,HJ6#..HRF ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ |
85291-13070 |
US $38.44 |
||
|
85220R
|
85220R
85292-30010 Packing, Windshield Wiper Motor[08.1987 - 01.1990] FJ62,HJ6#..HRF ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ |
85292-30010 |
US $4.80 |
||
|
85221R
|
85221R
85221-90A02 Blade, Windshield Wiper[08.1987 - 01.1990] FJ62,HJ6#..HRF |
85221-90A02 |
US $13.62 |
||
|
8517690A00
|
8517690A00
85176-90A00
Bush, Rear Wiper Link Pivot
|
85176-90A00 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
