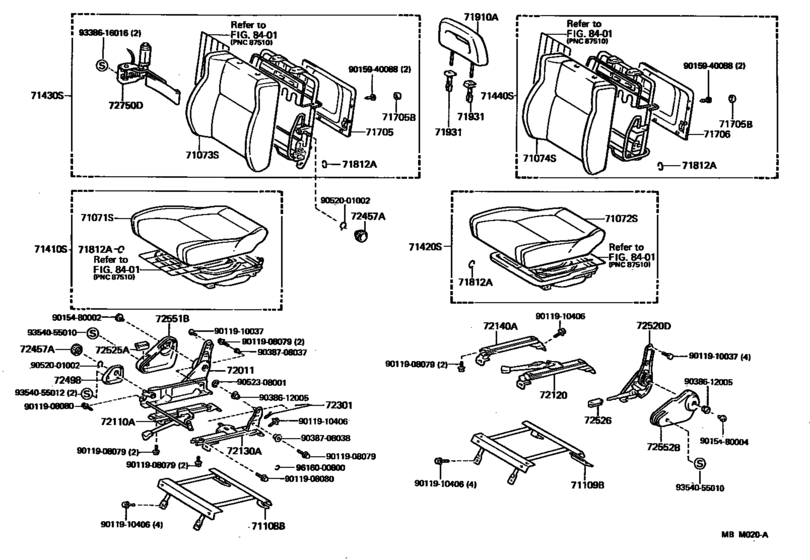

Seat & Seat Track ([08.1988 - ] (8708- )HJ61 ; (8808- )EFI) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-90A63-03 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1987 - 01.1990] FJ62,HJ61..VX SHADOW GRAY,TRIM1# |
71071-90A63-03 |
US $451.36 |
||
|
71071S
|
71071S
71071-90A63-06 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BAROWN,TRIM4# |
71071-90A63-06 |
US $451.36 |
||
|
71072S
|
71072S
71072-90A37-03 Cover, Front Seat Cushion, Lh(For Separate Type)[08.1987 - 01.1990] FJ62,HJ61..VX SHADOW GRAY,TRIM1# |
71072-90A37-03 |
US $451.36 |
||
|
71072S
|
71072S
71072-90A37-06 Cover, Front Seat Cushion, Lh(For Separate Type)[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BAROWN,TRIM4# |
71072-90A37-06 |
US $451.36 |
||
|
71073S
|
71073S
71073-90A79-03 Cover, Front Seat Back, Rh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71073-90A79-03 |
US $436.80 |
||
|
71073S
|
71073S
71073-90A79-06 Cover, Front Seat Back, Rh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71073-90A79-06 |
US $436.80 |
||
|
71074S
|
71074S
71074-90A19-03 Cover, Front Seat Back, Lh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71074-90A19-03 |
US $436.80 |
||
|
71074S
|
71074S
71074-90A19-06 Cover, Front Seat Back, Lh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71074-90A19-06 |
US $436.80 |
||
|
71108B
|
71108B
71108-90A00 Leg Sub-Assy, Front Seat, Rh[08.1987 - 01.1990] FJ62,HJ61..VX |
71108-90A00 |
US $320.32 |
||
|
71109B
|
71109B
71109-90A00 Leg Sub-Assy, Front Seat, Lh[08.1987 - 01.1990] FJ62,HJ61..VX |
71109-90A00 |
US $320.32 |
||
|
71410S
|
71410S
71410-90A54-03 Cushion Assy, Front Seat, Rh(For Separate Type)[08.1987 - 01.1990] FJ62,HJ61..VX SHADOW GRAY,TRIM1# |
71410-90A54-03 |
US $1,074.53 |
||
|
71410S
|
71410S
71410-90A54-06 Cushion Assy, Front Seat, Rh(For Separate Type)[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BAROWN,TRIM1# |
71410-90A54-06 |
US $1,074.53 |
||
|
71420S
|
71420S
71420-90A53-03 Cushion Assy, Front Seat, Lh (For Separate Type)[08.1987 - 01.1990] FJ62,HJ61..VX SHADOW GRAY,TRIM1# |
71420-90A53-03 |
US $1,074.53 |
||
|
71420S
|
71420S
71420-90A53-06 Cushion Assy, Front Seat, Lh (For Separate Type)[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BAROWN,TRIM4# |
71420-90A53-06 |
US $1,074.53 |
||
|
71430S
|
71430S
71430-90A94-03 Back Assy, Front Seat, Rh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71430-90A94-03 |
US $1,630.72 |
||
|
71430S
|
71430S
71430-90A94-06 Back Assy, Front Seat, Rh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71430-90A94-06 |
US $1,630.72 |
||
|
71440S
|
71440S
71440-90A93-03 Back Assy, Front Seat, Lh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71440-90A93-03 |
US $1,349.71 |
||
|
71440S
|
71440S
71440-90A93-06 Back Assy, Front Seat, Lh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71440-90A93-06 |
US $1,349.71 |
||
|
71705
|
71705
71705-90A00-03 Board Sub-Assy, Front Seat Back, Rh[08.1987 - 01.1990] FJ62,HJ61..VX SHADOW GRAY,TRIM1# |
71705-90A00-03 |
US $227.14 |
||
|
71705
|
71705
71705-90A00-06 Board Sub-Assy, Front Seat Back, Rh[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
71705-90A00-06 |
US $227.14 |
||
|
71705B
|
71705B
90339-10001-23
Cap(For Front Door Trim Board)
[08.1987 - 01.1990] FJ62,HJ61..VX GRAY,TRIM1# |
90339-10001-23 |
— | ||
| replacement | |||||
|
71705B
|
71705B
90339-10001-C0 Cap[08.1987 - 01.1990] FJ62,HJ61..VX GRAY,TRIM1# |
90339-10001-C0 |
US $3.05 |
||
|
71705B
|
71705B
90339-10001-26 Cap(For Front Seat Back Board)[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
90339-10001-26 |
US $2.33 |
||
| replacement | |||||
|
71705B
|
71705B
90339-10001-C0 Cap[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
90339-10001-C0 |
US $3.05 |
||
|
71706
|
71706
71705-90A00-03 Board Sub-Assy, Front Seat Back, Rh[08.1987 - 01.1990] FJ62,HJ61..VX SHADOW GRAY,TRIM1# |
71705-90A00-03 |
US $227.14 |
||
|
71706
|
71706
71705-90A00-06 Board Sub-Assy, Front Seat Back, Rh[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
71705-90A00-06 |
US $227.14 |
||
|
71812A
|
71812A
90468-18071
Clip (For Front Seat Cushion Cover)
[08.1987 - 01.1990] FJ62,HJ61..VX |
90468-18071 |
— | ||
| replacement | |||||
|
71812A
|
71812A
90468-16019 Clip (For Rear Seat Back)[08.1987 - 01.1990] FJ62,HJ61..VX |
90468-16019 |
from US $0.84 |
||
|
71910A
|
71910A
71910-90A18-03 Headrest Assy, Front Seat[08.1987 - 01.1990] FJ62,HJ61..VX SHADOW GRAY,TRIM1# |
71910-90A18-03 |
US $416.42 |
||
|
71910A
|
71910A
71910-90A18-06 Headrest Assy, Front Seat[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
71910-90A18-06 |
US $416.42 |
||
|
71931
|
71931
71956-30020-13
Support, Front Seat Headrest
[08.1987 - 01.1990] FJ62,HJ61..VX ロック無,GRAY,TRIM1# |
71956-30020-13 |
— | ||
|
71931
|
71931
71956-30020-56 Support, Front Seat Headrest[08.1987 - 01.1990] FJ62,HJ6#..STD,VX ロック無,SEPIA BROWN,TRIM4# |
71956-30020-56 |
US $11.65 |
||
| replacement | |||||
|
71931
|
71931
71956-30020-10
Support, Rear Seat Headrest
[08.1987 - 01.1990] FJ62,HJ6#..STD,VX ロック無,SEPIA BROWN,TRIM4# |
71956-30020-10 |
— | ||
|
71931
|
71931
71990-30020-13
Support, Front Seat Headrest
[08.1987 - 01.1990] FJ62,HJ61..VX ロック付,GRAY,TRIM1# |
71990-30020-13 |
— | ||
|
71931
|
71931
71990-30020-56
Support, Front Seat Headrest
[08.1987 - 01.1990] FJ62,HJ6#..STD,VX ロック付,SEPIA BROWN,TRIM4# |
71990-30020-56 |
— | ||
|
72011
|
72011
72010-90A00 Adjuster Sub-Assy, Front Seat, Outer Rh[08.1987 - 01.1990] FJ62,HJ6#..GX,VX |
72010-90A00 |
US $355.26 |
||
|
72110A
|
72110A
72110-90A09 Track Assy, Front Seat, Outer Rh[08.1987 - 01.1990] FJ62,HJ61..VX; FJ62..GX ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ); HJ60..GX ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ) |
72110-90A09 |
US $149.97 |
||
|
72120
|
72120
72120-90A06 Track Assy, Front Seat, Outer Lh[08.1987 - 01.1990] FJ62,HJ61..VX; FJ62..GX ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ); HJ60..GX ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ) |
72120-90A06 |
US $149.97 |
||
|
72130A
|
72130A
72130-90A09 Track Assy, Front Seat, Inner Rh[08.1987 - 01.1990] FJ62,HJ61..VX; FJ62..GX ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ); HJ60..GX ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ) |
72130-90A09 |
US $170.35 |
||
|
72140A
|
72140A
72130-90A07 Track Assy, Rh Seat, Inner (For Separate Seat)[08.1987 - 01.1990] FJ62,HJ61..VX; FJ62..GX ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ); HJ60..GX ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝ ｼ-ﾄ) |
72130-90A07 |
US $97.55 |
||
|
72301
|
72301
72301-90A01
Wire Sub-Assy, Seat Track Equalizing
[08.1987 - 01.1990] FJ62..GX; HJ60..GX; FJ62,HJ61..VX |
72301-90A01 |
— | ||
|
72457A
|
72457A
72457-14030-23
Knob, Seat Adjuster
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72457-14030-23 |
— | ||
| replacement | |||||
|
72457A
|
72457A
72457-14030-11
Knob, Seat Adjuster
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72457-14030-11 |
— | ||
|
72457A
|
72457A
72457-14030-36 Knob, Seat Adjuster[08.1987 - 01.1990] FJ62,HJ6#..GX,VX BROWN,TRIM4# |
72457-14030-36 |
US $16.45 |
||
| replacement | |||||
|
72457A
|
72457A
72457-14030-11
Knob, Seat Adjuster
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX BROWN,TRIM4# |
72457-14030-11 |
— | ||
|
72498
|
72498
72498-90A00-03 Cover, Vertical Adjuster Bracket[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72498-90A00-03 |
US $96.10 |
||
|
72498
|
72498
72498-90A00-16 Cover, Vertical Adjuster Bracket[08.1987 - 01.1990] FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4# |
72498-90A00-16 |
US $96.10 |
||
| replacement | |||||
|
72498
|
72498
72498-90A00-03 Cover, Vertical Adjuster Bracket[08.1987 - 01.1990] FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4# |
72498-90A00-03 |
US $96.10 |
||
|
72520D
|
72520D
72520-90A00
Adjuster Assy, Reclining Seat Back, Lh
[08.1987 - 01.1990] FJ62,HJ6# |
72520-90A00 |
— | ||
|
72525A
|
72525A
72525-90A01-03 Handle, Reclining Adjuster Release[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72525-90A01-03 |
US $17.18 |
||
| replacement | |||||
|
72525A
|
72525A
72525-90A01-13 Handle, Reclining Adjuster Release[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72525-90A01-13 |
US $15.87 |
||
|
72525A
|
72525A
72525-90A01-16 Handle, Reclining Adjuster Release[08.1987 - 01.1990] FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4# |
72525-90A01-16 |
US $17.18 |
||
| replacement | |||||
|
72525A
|
72525A
72525-90A01-13 Handle, Reclining Adjuster Release[08.1987 - 01.1990] FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4# |
72525-90A01-13 |
US $15.87 |
||
|
72526
|
72526
72526-90A01-03 Handle, Reclining Adjuster Release[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72526-90A01-03 |
US $11.36 |
||
| replacement | |||||
|
72526
|
72526
72526-90A01-13 Handle, Reclining Adjuster Release[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72526-90A01-13 |
US $10.19 |
||
|
72526
|
72526
72526-90A01-16 Handle, Reclining Adjuster Release[08.1987 - 01.1990] FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4# |
72526-90A01-16 |
US $11.36 |
||
| replacement | |||||
|
72526
|
72526
72526-90A01-13 Handle, Reclining Adjuster Release[08.1987 - 01.1990] FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4# |
72526-90A01-13 |
US $10.19 |
||
|
72551B
|
72551B
72551-90A00-03
Cover, Reclining Hinge Outer, Rh
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72551-90A00-03 |
— | ||
|
72551B
|
72551B
72551-90A00-16 Cover, Reclining Hinge Outer, Rh[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
72551-90A00-16 |
US $29.99 |
||
| replacement | |||||
|
72551B
|
72551B
72551-90A00-B0 Cover, Reclining Hinge Outer, Rh[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
72551-90A00-B0 |
US $29.99 |
||
|
72552B
|
72552B
72552-90A00-03
Cover, Reclining Hinge Outer, Lh
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX GRAY,TRIM1# |
72552-90A00-03 |
— | ||
|
72552B
|
72552B
72552-90A00-16
Cover, Reclining Hinge Outer, Lh
[08.1987 - 01.1990] FJ62,HJ6# SEPIA BROWN,TRIM4# |
72552-90A00-16 |
— | ||
|
72750D
|
72750D
72750-90A01 Adjuster Assy, Lumbar Support, Rh[08.1988 - 01.1990] FJ62..EFI |
72750-90A01 |
US $403.31 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.63 |
||
|
9011908080
|
9011908080
90119-08080 BOLT |
90119-08080 |
from US $1.61 |
||
|
9011910037
|
9011910037
90119-10037 BOLT |
90119-10037 |
US $2.09 |
||
|
9011910406
|
9011910406
90119-10406
New Genuine Part
|
90119-10406 |
— | ||
|
9015480002
|
9015480002
90154-80002 New Genuine Part |
90154-80002 |
from US $1.75 |
||
|
9015480004
|
9015480004
90154-80004 New Genuine Part |
90154-80004 |
US $2.33 |
||
|
9015940088
|
9015940088
90159-40088 New Genuine Part |
90159-40088 |
US $1.46 |
||
|
9038612005
|
9038612005
90386-12005 Bush (For Front Seat Hinge Pin) |
90386-12005 |
US $0.79 |
||
|
9038708037
|
9038708037
90387-08037 New Genuine Part |
90387-08037 |
US $13.40 |
||
|
9038708038
|
9038708038
90387-08038 New Genuine Part |
90387-08038 |
US $13.40 |
||
|
9052001002
|
9052001002
90520-01002
Ring, Shaft Snap(For Vent Window Control)
|
90520-01002 |
— | ||
| replacement | |||||
|
9052001002
|
9052001002
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $0.91 |
||
|
9052308001
|
9052308001
90523-08001 E Ring (For Tilt Motor Shaft, Lower) |
90523-08001 |
from US $1.40 |
||
|
9338616016
|
9338616016
93386-16016 New Genuine Part |
93386-16016 |
US $0.58 |
||
|
9354055010
|
9354055010
93540-55010 SCREW |
93540-55010 |
US $1.25 |
||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $1.08 |
||
|
9616000800
|
9616000800
96160-00800 Ring, E(For Counter Weight) |
96160-00800 |
from US $0.86 |
||
