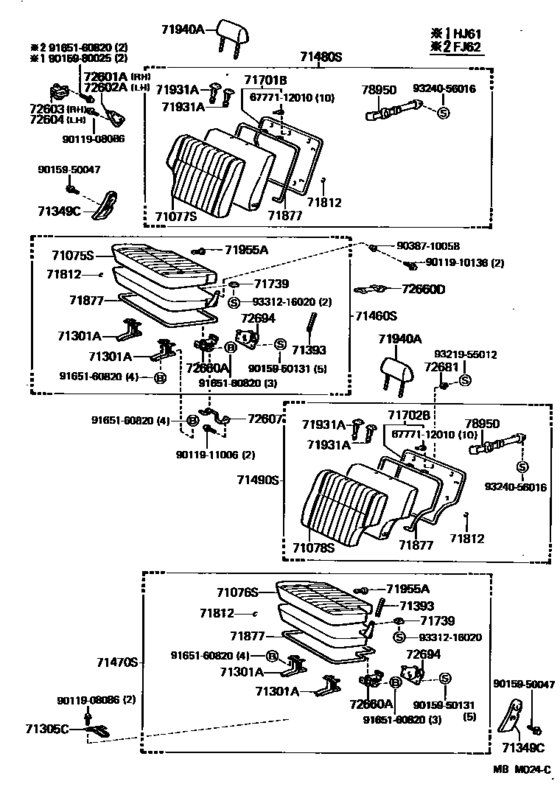

Seat & Seat Track ([08.1987 - ] (8708- )VX) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71075S
|
71075S
71065-90A36-03 Cover, Rear Seat Cushion, Rh (For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71065-90A36-03 |
US $208.21 |
||
|
71075S
|
71075S
71065-90A36-06 Cover, Rear Seat Cushion, Rh (For Separate Type)[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71065-90A36-06 |
US $208.21 |
||
|
71076S
|
71076S
71076-90A31-03 Cover, Rear Seat Cushion, Lh (For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71076-90A31-03 |
US $208.21 |
||
|
71076S
|
71076S
71076-90A31-06 Cover, Rear Seat Cushion, Lh (For Separate Type)[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71076-90A31-06 |
US $208.21 |
||
|
71077S
|
71077S
71077-90A65-03 Cover, Rear Seat Back, Rh (For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71077-90A65-03 |
US $232.96 |
||
|
71077S
|
71077S
71077-90A65-06 Cover, Rear Seat Back, Rh (For Separate Type)[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71077-90A65-06 |
US $232.96 |
||
|
71078S
|
71078S
71078-90A33-03 Cover, Rear Seat Back, Lh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71078-90A33-03 |
US $232.96 |
||
|
71078S
|
71078S
71078-90A33-06 Cover, Rear Seat Back, Lh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71078-90A33-06 |
US $232.96 |
||
|
71301A
|
71301A
71301-90A03-03 Hinge Sub-Assy, Rear Seat Cushion[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71301-90A03-03 |
US $51.54 |
||
|
71301A
|
71301A
71301-90A03-06 Hinge Sub-Assy, Rear Seat Cushion[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71301-90A03-06 |
US $51.54 |
||
| replacement | |||||
|
71301A
|
71301A
71301-90A03-03 Hinge Sub-Assy, Rear Seat Cushion[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71301-90A03-03 |
US $51.54 |
||
|
71349C
|
71349C
71349-90A01-03 Cover, Rear Seat Back Stay, Rh[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1#,RH-INNER,LH-OUTER |
71349-90A01-03 |
US $18.35 |
||
|
71349C
|
71349C
71349-90A01-16 Cover, Rear Seat Back Stay, Rh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4#,RH-INNER,LH-OUTER |
71349-90A01-16 |
US $18.35 |
||
| replacement | |||||
|
71349C
|
71349C
71349-90A01-03 Cover, Rear Seat Back Stay, Rh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4#,RH-INNER,LH-OUTER |
71349-90A01-03 |
US $18.35 |
||
|
71349C
|
71349C
71379-90A02-03 Cover, Rear Seat Back Hinge[08.1987 - 01.1990] FJ62,HJ61..VX SHADOW GRAY,TRIM1#,RH-OUTER,LH-INNER |
71379-90A02-03 |
US $18.35 |
||
|
71349C
|
71349C
71379-90A02-16 Cover, Rear Seat Back Hinge[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4#,RH-OUTER,LH-INNER |
71379-90A02-16 |
US $18.35 |
||
| replacement | |||||
|
71349C
|
71349C
71379-90A02-03 Cover, Rear Seat Back Hinge[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4#,RH-OUTER,LH-INNER |
71379-90A02-03 |
US $18.35 |
||
|
71393
|
71393
71393-90A01-03 Band, Rear Seat Cushion[08.1987 - 01.1990] FJ62,HJ61..VX GRAY,TRIM1# |
71393-90A01-03 |
US $4.51 |
||
|
71393
|
71393
71393-90A01-06 Band, Rear Seat Cushion[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
71393-90A01-06 |
US $4.51 |
||
| replacement | |||||
|
71393
|
71393
71393-90A01-03 Band, Rear Seat Cushion[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
71393-90A01-03 |
US $4.51 |
||
|
71460S
|
71460S
71460-90G26-03 Cushion Assy, Rear Seat, Rh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71460-90G26-03 |
US $733.82 |
||
|
71460S
|
71460S
71460-90G26-06 Cushion Assy, Rear Seat, Rh(For Separate Type)[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71460-90G26-06 |
US $733.82 |
||
|
71470S
|
71470S
71470-90A84-03 Cushion Assy, Rear Seat, Lh (For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71470-90A84-03 |
US $733.82 |
||
|
71470S
|
71470S
71470-90A84-06 Cushion Assy, Rear Seat, Lh (For Separate Type)[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71470-90A84-06 |
US $733.82 |
||
|
71480S
|
71480S
71480-90G38-03 Back Assy, Rear Seat, Rh (For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71480-90G38-03 |
US $832.83 |
||
|
71480S
|
71480S
71480-90G38-06 Back Assy, Rear Seat, Rh (For Separate Type)[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
71480-90G38-06 |
US $832.83 |
||
|
71490S
|
71490S
71490-90A52-03 Back Assy, Rear Seat, Lh (For Separate Type)[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
71490-90A52-03 |
US $832.83 |
||
|
71701B
|
71701B
71701-90A03-03 Board Sub-Assy, Rear Seat Back, Rh[08.1987 - 01.1990] FJ62,HJ61..VX SHADOW GRAY,TRIM1# |
71701-90A03-03 |
US $66.10 |
||
|
71701B
|
71701B
71701-90A03-06 Board Sub-Assy, Rear Seat Back, Rh[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
71701-90A03-06 |
US $66.10 |
||
|
71702B
|
71702B
71702-90A03-03 Board Sub-Assy, Rear Seat Back, Lh[08.1987 - 01.1990] FJ62,HJ61..VX SHADOW GRAY,TRIM1# |
71702-90A03-03 |
US $66.10 |
||
|
71702B
|
71702B
71702-90A03-06 Board Sub-Assy, Rear Seat Back, Lh[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
71702-90A03-06 |
US $66.10 |
||
|
71812
|
71812
90468-18071
Clip (For Front Seat Cushion Cover)
[08.1987 - 01.1990] FJ62,HJ61..VX |
90468-18071 |
— | ||
| replacement | |||||
|
71812
|
71812
90468-16019 Clip (For Rear Seat Back)[08.1987 - 01.1990] FJ62,HJ61..VX |
90468-16019 |
from US $0.84 |
||
|
71877
|
71877
74871-90A00 Ornament, Rear Seat Cushion Panel[08.1987 - 01.1990] FJ62,HJ61..VX 長さ＝１７１０ |
74871-90A00 |
US $122.30 |
||
|
71877
|
71877
74874-90A00 Ornament, Rear Seat Cushion Panel[08.1987 - 01.1990] FJ62,HJ61..VX L=900 |
74874-90A00 |
US $5.24 |
||
|
71877
|
71877
74874-90A02 Ornament, Rear Seat Cushion Panel[08.1988 - 01.1990] FJ62..EFI L=640 |
74874-90A02 |
US $4.66 |
||
|
71877
|
71877
74876-90A00 Ornament, Rear Seat Cushion Panel[08.1987 - 01.1990] FJ62,HJ61..VX 長さ＝１９０ |
74876-90A00 |
US $5.24 |
||
|
71931A
|
71931A
71930-10060-33
Support, Front Seat Headrest
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX ロック付,SHADOW GRAY,TRIM1# |
71930-10060-33 |
— | ||
|
71931A
|
71931A
71930-10060-36 Support, Rear Seat Headrest[08.1987 - 01.1990] FJ62,HJ6#..GX,VX ロック付,SEPIA BROWN,TRIM4# |
71930-10060-36 |
US $17.18 |
||
| replacement | |||||
|
71931A
|
71931A
71930-10060-50
Support, Front Seat Headrest
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX ロック付,SEPIA BROWN,TRIM4# |
71930-10060-50 |
— | ||
|
71931A
|
71931A
71931-10010-33
Support, Front Seat Headrest
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX ロック無,SHADOW GRAY,TRIM1# |
71931-10010-33 |
— | ||
|
71931A
|
71931A
71931-10010-36 Support, Rear Seat Headrest[08.1987 - 01.1990] FJ62,HJ6#..GX,VX ロック無,SEPIA BROWN,TRIM4# |
71931-10010-36 |
US $10.92 |
||
| replacement | |||||
|
71931A
|
71931A
71931-10010-B1
Support, Front Seat Headrest
[08.1987 - 01.1990] FJ62,HJ6#..GX,VX ロック無,SEPIA BROWN,TRIM4# |
71931-10010-B1 |
— | ||
|
71940A
|
71940A
71940-90A08-03 Headrest Assy, Rear Seat[08.1987 - 01.1990] FJ62,HJ61..VX SHADOW GRAY,TRIM1# |
71940-90A08-03 |
US $416.42 |
||
|
71940A
|
71940A
71940-90A08-06 Headrest Assy, Rear Seat[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
71940-90A08-06 |
US $416.42 |
||
|
71955A
|
71955A
71955-90K00-01 Support, Rear Seat Headrest[08.1987 - 01.1990] FJ62,HJ6#..GX,VX BLACK,TRIM1#,4# |
71955-90K00-01 |
US $4.08 |
||
|
72601A
|
72601A
72601-90A05 Striker Sub-Assy, Rear Seat Back Look, Rh[08.1988 - 01.1990] FJ62..EFI |
72601-90A05 |
US $30.43 |
||
|
72602A
|
72602A
72602-90A02 Striker Sub-Assy, Rear Seat Back Lock, Lh[08.1988 - 01.1990] FJ62..EFI |
72602-90A02 |
US $30.43 |
||
|
72603
|
72603
72630-90A11 Lock Sub-Assy, Rear Seat Back, Rh[08.1988 - 01.1990] FJ62..EFI |
72630-90A11 |
US $54.16 |
||
|
72604
|
72604
72640-90A11 Lock Sub-Assy, Rear Seat Back, Lh[08.1988 - 01.1990] FJ62..EFI |
72640-90A11 |
US $54.16 |
||
|
72607
|
72607
72607-90A02 Striker Sub-Assy, Rear Seat Cushion Lock[08.1987 - 01.1990] FJ62,HJ61..VX |
72607-90A02 |
US $45.72 |
||
|
72660A
|
72660A
72660-90A02-03 Lock Assy, Rear Seat Cushion[08.1987 - 01.1990] FJ62,HJ61..VX GRAY,TRIM1# |
72660-90A02-03 |
US $116.48 |
||
|
72660A
|
72660A
72660-90A02-16 Lock Assy, Rear Seat Cushion[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
72660-90A02-16 |
US $116.48 |
||
| replacement | |||||
|
72660A
|
72660A
72660-90A02-03 Lock Assy, Rear Seat Cushion[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
72660-90A02-03 |
US $116.48 |
||
|
72694
|
72694
72694-90A01-03 Cover, Rear Seat Cushion Lock[08.1987 - 01.1990] FJ62,HJ61..VX GRAY,TRIM1# |
72694-90A01-03 |
US $21.69 |
||
|
72694
|
72694
72694-90A01-16 Cover, Rear Seat Cushion Lock[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
72694-90A01-16 |
US $21.69 |
||
| replacement | |||||
|
72694
|
72694
72694-90A01-03 Cover, Rear Seat Cushion Lock[08.1987 - 01.1990] FJ62,HJ61..VX SEPIA BROWN,TRIM4# |
72694-90A01-03 |
US $21.69 |
||
|
78950
|
78950
78950-90A01-03 Band Assy, Fold Seat Stopper, No.1[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
78950-90A01-03 |
US $77.17 |
||
|
78950
|
78950
78950-90A01-06 Band Assy, Fold Seat Stopper, No.1[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
78950-90A01-06 |
US $77.17 |
||
| replacement | |||||
|
78950
|
78950
78950-90A01-03 Band Assy, Fold Seat Stopper, No.1[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
78950-90A01-03 |
US $77.17 |
||
|
6777112010
|
6777112010
67771-12010 Retainer, Door Trim |
67771-12010 |
from US $1.77 |
||
|
9011908086
|
9011908086
90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08086 |
US $6.81 |
||
|
9011910136
|
9011910136
90119-10136
New Genuine Part
|
90119-10136 |
— | ||
|
9011911006
|
9011911006
90119-11006 New Genuine Part |
90119-11006 |
US $3.49 |
||
|
9015950047
|
9015950047
90159-50047
New Genuine Part
|
90159-50047 |
— | ||
|
9015950131
|
9015950131
90159-50131 New Genuine Part |
90159-50131 |
US $1.31 |
||
|
9015980025
|
9015980025
90159-80025 New Genuine Part |
90159-80025 |
US $1.75 |
||
|
9038710058
|
9038710058
90387-10058 New Genuine Part |
90387-10058 |
US $2.62 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9321955012
|
9321955012
93219-55012 New Genuine Part |
93219-55012 |
US $0.87 |
||
|
9324056016
|
9324056016
93240-56016 SCREW |
93240-56016 |
US $1.60 |
||
|
9331216020
|
9331216020
93312-16020 New Genuine Part |
93312-16020 |
US $1.46 |
||
