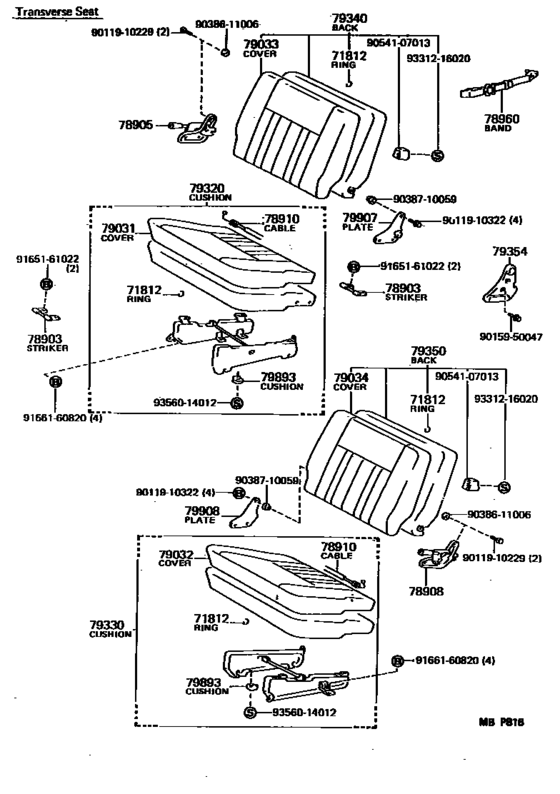

Seat & Seat Track ([08.1988 - ] (8808- )EFI) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71812
|
71812
90468-18071
Clip (For Front Seat Cushion Cover)
[08.1987 - 01.1990] FJ62,HJ61..VX |
90468-18071 |
— | ||
| replacement | |||||
|
71812
|
71812
90468-16019 Clip (For Rear Seat Back)[08.1987 - 01.1990] FJ62,HJ61..VX |
90468-16019 |
from US $0.84 |
||
|
78903
|
78903
78903-90A00 Striker Sub-Assy, Fold Seat Leg Lock[08.1988 - 01.1990] FJ62..EFI OD=8 |
78903-90A00 |
US $54.75 |
||
|
78903
|
78903
78904-90A00 Striker Sub-Assy, Fold Seat Leg Lock[08.1988 - 01.1990] FJ62..EFI OD=10 |
78904-90A00 |
US $60.72 |
||
|
78905
|
78905
78905-90A01-03 Lock Sub-Assy, Fold Rh Seat Back, Rh[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
78905-90A01-03 |
US $264.99 |
||
|
78905
|
78905
78905-90A01-16 Lock Sub-Assy, Fold Rh Seat Back, Rh[08.1988 - 01.1990] FJ62..EFI BROWN,TRIM4# |
78905-90A01-16 |
US $264.99 |
||
| replacement | |||||
|
78905
|
78905
78905-90A01-06
Lock Sub-Assy, Fold Rh Seat Back, Rh
[08.1988 - 01.1990] FJ62..EFI BROWN,TRIM4# |
78905-90A01-06 |
— | ||
|
78908
|
78908
78908-90A01-03 Lock Sub-Assy, Fold Lh Seat Back, Lh[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
78908-90A01-03 |
US $264.99 |
||
|
78908
|
78908
78908-90A01-06 Lock Sub-Assy, Fold Lh Seat Back, Lh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
78908-90A01-06 |
US $264.99 |
||
| replacement | |||||
|
78908
|
78908
78908-90A01-03 Lock Sub-Assy, Fold Lh Seat Back, Lh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
78908-90A01-03 |
US $264.99 |
||
|
78910
|
78910
78910-90A00
Cable Assy, Fold Seat Lock Control, No.1
[08.1988 - 01.1990] FJ62..EFI |
78910-90A00 |
— | ||
|
78960
|
78960
78960-90A02-03
Band Assy, Fold Seat Stopper, No.2
[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
78960-90A02-03 |
— | ||
|
78960
|
78960
78960-90A02-06 Band Assy, Fold Seat Stopper, No.2[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
78960-90A02-06 |
US $69.74 |
||
| replacement | |||||
|
78960
|
78960
78960-90A02-03
Band Assy, Fold Seat Stopper, No.2
[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
78960-90A02-03 |
— | ||
|
79031
|
79031
79031-90A29-03 Cover Sub-Assy, No.3 Seat Cushion, Rh[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
79031-90A29-03 |
US $244.61 |
||
|
79031
|
79031
79031-90A29-06 Cover Sub-Assy, No.3 Seat Cushion, Rh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79031-90A29-06 |
US $244.61 |
||
|
79032
|
79032
79032-90A29-03 Cover Sub-Assy, No.3 Seat Cushion, Lh[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
79032-90A29-03 |
US $244.61 |
||
|
79032
|
79032
79032-90A29-06 Cover Sub-Assy, No.3 Seat Cushion, Lh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79032-90A29-06 |
US $244.61 |
||
|
79033
|
79033
79033-90A27-03 Cover Sub-Assy, No.3 Seat Back, Rh[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
79033-90A27-03 |
US $244.61 |
||
|
79033
|
79033
79033-90A27-06 Cover Sub-Assy, No.3 Seat Back, Rh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79033-90A27-06 |
US $244.61 |
||
|
79034
|
79034
79034-90A27-03 Cover Sub-Assy, No.3 Seat Back, Lh[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
79034-90A27-03 |
US $244.61 |
||
|
79034
|
79034
79034-90A27-06 Cover Sub-Assy, No.3 Seat Back, Lh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79034-90A27-06 |
US $244.61 |
||
|
79320
|
79320
79320-90A29-03 Cushion Assy, No.3 Seat, Rh[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
79320-90A29-03 |
US $870.69 |
||
|
79320
|
79320
79320-90A29-06 Cushion Assy, No.3 Seat, Rh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79320-90A29-06 |
US $870.69 |
||
|
79330
|
79330
79330-90A29-03 Cushion Assy, No.3 Seat, Lh[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
79330-90A29-03 |
US $870.69 |
||
|
79330
|
79330
79330-90A29-06 Cushion Assy, No.3 Seat, Lh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79330-90A29-06 |
US $870.69 |
||
|
79340
|
79340
79340-90A27-03 Back Assy, No.3 Seat, Rh[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
79340-90A27-03 |
US $870.69 |
||
|
79340
|
79340
79340-90A27-06 Back Assy, No.3 Seat, Rh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79340-90A27-06 |
US $870.69 |
||
|
79350
|
79350
79350-90A27-03 Back Assy, No.3 Seat, Lh[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
79350-90A27-03 |
US $870.69 |
||
|
79350
|
79350
79350-90A27-06 Back Assy, No.3 Seat, Lh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79350-90A27-06 |
US $870.69 |
||
|
79354
|
79354
79354-90A00-03 Cover, No.3 Seat Back Hinge[08.1988 - 01.1990] FJ62..EFI GRAY,TRIM1#,右側 |
79354-90A00-03 |
US $32.03 |
||
|
79354
|
79354
79354-90A00-16 Cover, No.3 Seat Back Hinge[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4#,右側 |
79354-90A00-16 |
US $32.03 |
||
| replacement | |||||
|
79354
|
79354
79354-90A00-03 Cover, No.3 Seat Back Hinge[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4#,右側 |
79354-90A00-03 |
US $32.03 |
||
|
79354
|
79354
79364-90A00-03 Cover, No.3 Seat Back Hinge[08.1988 - 01.1990] FJ62..EFI GRAY,TRIM1#,左側 |
79364-90A00-03 |
US $32.03 |
||
|
79354
|
79354
79364-90A00-16 Cover, No.3 Seat Back Hinge[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4#,左側 |
79364-90A00-16 |
US $32.03 |
||
| replacement | |||||
|
79354
|
79354
79364-90A00-03 Cover, No.3 Seat Back Hinge[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4#,左側 |
79364-90A00-03 |
US $32.03 |
||
|
79893
|
79893
79893-90A00 Cushion, Fold Seat Leg[08.1988 - 01.1990] FJ62..EFI |
79893-90A00 |
US $8.74 |
||
|
79907
|
79907
79907-90A01-03 Plate Sub-Assy, Seat Hinge, Rh[08.1988 - 01.1990] FJ62..EFI GRAY,TRIM1# |
79907-90A01-03 |
US $35.53 |
||
|
79907
|
79907
79907-90A01-16 Plate Sub-Assy, Seat Hinge, Rh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79907-90A01-16 |
US $35.53 |
||
| replacement | |||||
|
79907
|
79907
79907-90A01-03 Plate Sub-Assy, Seat Hinge, Rh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79907-90A01-03 |
US $35.53 |
||
|
79908
|
79908
79908-90A01-03 Plate Sub-Assy, Seat Hinge, Lh[08.1988 - 01.1990] FJ62..EFI GRAY,TRIM1# |
79908-90A01-03 |
US $35.53 |
||
|
79908
|
79908
79908-90A01-16 Plate Sub-Assy, Seat Hinge, Lh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79908-90A01-16 |
US $35.53 |
||
| replacement | |||||
|
79908
|
79908
79908-90A01-03 Plate Sub-Assy, Seat Hinge, Lh[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
79908-90A01-03 |
US $35.53 |
||
|
9011910229
|
9011910229
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9011910322
|
9011910322
90119-10322 BOLT |
90119-10322 |
US $3.40 |
||
|
9015950047
|
9015950047
90159-50047
New Genuine Part
|
90159-50047 |
— | ||
|
9038611006
|
9038611006
90386-11006 New Genuine Part |
90386-11006 |
US $6.99 |
||
|
9038710059
|
9038710059
90387-10059 New Genuine Part |
90387-10059 |
US $4.51 |
||
|
9054107013
|
9054107013
90541-07013
New Genuine Part
|
90541-07013 |
— | ||
|
9165161022
|
9165161022
91651-61022 Bolt(For Transaxle & Engine Setting) |
91651-61022 |
US $1.10 |
||
|
9166160820
|
9166160820
91661-60820
New Genuine Part
|
91661-60820 |
— | ||
| replacement | |||||
|
9166160820
|
9166160820
91661-B0820 Bolt |
91661-B0820 |
US $2.87 |
||
|
9331216020
|
9331216020
93312-16020 New Genuine Part |
93312-16020 |
US $1.46 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.25 |
||
