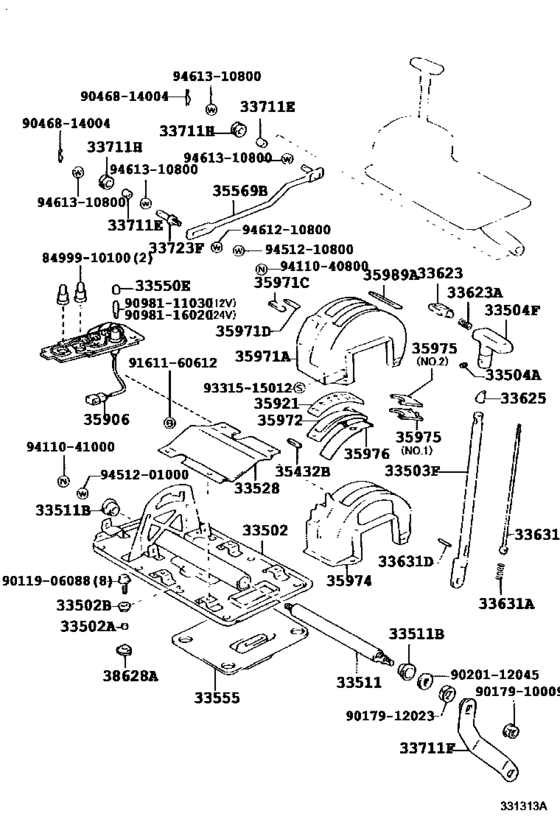

Shift Lever & Retainer ([08.1987 - ] (8708- )ATM) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33502
|
33502
33502-60030 Plate Sub-Assy, Shift Lever[08.1987 - 01.1990] FJ62,HJ6#..ATM |
33502-60030 |
US $101.92 |
||
|
33502A
|
33502A
90387-06065 Collar (For Floor Shift Setting)[08.1987 - 01.1990] FJ62,HJ6#..ATM 外径＝８．８ |
90387-06065 |
US $3.23 |
||
|
33502B
|
33502B
90480-13018 Grommet (For Shift Lever Plate)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90480-13018 |
US $0.96 |
||
|
33503F
|
33503F
33503-60020
Lever Sub-Assy, Shift(For Floor Shift)
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
33503-60020 |
— | ||
|
33504A
|
33504A
90113-05034 Bolt Or Pin (For Shift Lever Knob Setting)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90113-05034 |
US $4.66 |
||
|
33504F
|
33504F
33542-30110-01
Knob Sub-Assy, Shift Lever
[08.1987 - 01.1990] FJ62,HJ6#..ATM BLACK,TRIM1# |
33542-30110-01 |
— | ||
|
33504F
|
33504F
33542-30110-36
Knob Sub-Assy, Shift Lever
[08.1987 - 01.1990] FJ62,HJ6#..ATM SEPIA BROWN,TRIM4# |
33542-30110-36 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33542-30110-01
Knob Sub-Assy, Shift Lever
[08.1987 - 01.1990] FJ62,HJ6#..ATM SEPIA BROWN,TRIM4# |
33542-30110-01 |
— | ||
|
33511
|
33511
33511-60050
Shaft, Control (For Floor Shift)
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
33511-60050 |
— | ||
|
33511B
|
33511B
90385-16008 Bush (For Floor Shift Control Shaft)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90385-16008 |
US $10.93 |
||
|
33528
|
33528
33528-60010
Cover, Control Shaft
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
33528-60010 |
— | ||
|
33550E
|
33550E
90339-04014 Cap, Position Indicator Lamp[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90339-04014 |
US $1.79 |
||
|
33555
|
33555
33555-60040
Boot, Shift Lever
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
33555-60040 |
— | ||
|
33623
|
33623
33623-30040-56
Button, Shift Lever Knob
[08.1987 - 01.1990] FJ62,HJ6#..ATM BROWN,TRIM4# |
33623-30040-56 |
— | ||
| replacement | |||||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[08.1987 - 01.1990] FJ62,HJ6#..ATM BROWN,TRIM4# |
33623-30040-01 |
US $17.11 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-22020 Sleeve, Shift Lever Knob[08.1987 - 01.1990] FJ62,HJ6#..ATM |
33625-22020 |
US $13.98 |
||
|
33631
|
33631
33631-60020 Rod, Detent[08.1987 - 01.1990] FJ62,HJ6#..ATM |
33631-60020 |
US $17.04 |
||
|
33631A
|
33631A
90501-07005 Spring, Compression (For Detent Rod)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90501-07005 |
US $6.87 |
||
|
33631D
|
33631D
90256-04001 Pin, Slotted Spring (For Detent Rod)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90256-04001 |
US $3.19 |
||
|
33711E
|
33711E
90389-08005 Bushing(For Gear Selecting Rod)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90389-08005 |
from US $1.73 |
||
|
33711F
|
33711F
33711-60040 Lever, Control Shaft (For Floor Shift)[08.1988 - 01.1990] FJ62..EFI |
33711-60040 |
US $28.39 |
||
|
33711H
|
33711H
90480-17177 Grommet (For Transmission Control Rod)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90480-17177 |
from US $2.01 |
||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
33723-22010 |
from US $11.47 |
||
|
35432B
|
35432B
35432-60040
Plate, Position Indicator (For Floor Shift)
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35432-60040 |
— | ||
|
35569B
|
35569B
35569-60040 Rod, Transmission Control (For Floor Shift)[08.1988 - 01.1990] FJ62..EFI |
35569-60040 |
US $21.40 |
||
|
35906
|
35906
35906-60040
Wire Sub-Assy, Indicator Lamp
[08.1988 - 01.1990] FJ62..EFI |
35906-60040 |
— | ||
|
35921
|
35921
35921-60020
Plate, Control Position Indicator
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35921-60020 |
— | ||
|
35971A
|
35971A
35971-60020
Housing, Position Indicator, Upper
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35971-60020 |
— | ||
|
35971C
|
35971C
55499-60010
Lens, Parking Brake Warning Lamp
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
55499-60010 |
— | ||
|
35971D
|
35971D
58936-60010
Lens, Console End Panel Lamp
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
58936-60010 |
— | ||
|
35972
|
35972
35972-60010
Cover, Position Indicator Housing
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35972-60010 |
— | ||
|
35974
|
35974
35974-60020 Housing, Position Indicator, Lower[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35974-60020 |
US $28.25 |
||
|
35975
|
35975
35975-60020
Cover, Slide (For Position Indicator)
[08.1987 - 01.1990] FJ62,HJ6#..ATM ＮＯ．１ |
35975-60020 |
— | ||
|
35975
|
35975
35975-60030
Cover, Slide (For Position Indicator)
[08.1987 - 01.1990] FJ62,HJ6#..ATM ＮＯ．２ |
35975-60030 |
— | ||
|
35976
|
35976
35976-60010
Cover, Slide, No.2 (For Position Indicator)
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35976-60010 |
— | ||
|
35989A
|
35989A
35989-60020
Plate, Transmission Name
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35989-60020 |
— | ||
|
38628A
|
38628A
38628-60010
Gromet, Winch
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
38628-60010 |
— | ||
|
8499910100
|
8499910100
84999-10100 Bulb, Position Indicator Lamp |
84999-10100 |
US $7.17 |
||
|
9011906088
|
9011906088
90119-06088 Bolt, W/washer (For Floor Shift) |
90119-06088 |
US $1.14 |
||
|
9017910009
|
9017910009
90179-10009 NUT |
90179-10009 |
US $1.10 |
||
|
9017912023
|
9017912023
90179-12023
Nut(For Rear Suspension Arm)
|
90179-12023 |
— | ||
|
9020112045
|
9020112045
90201-12045 New Genuine Part |
90201-12045 |
US $2.48 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.65 |
||
|
9098111030
|
9098111030
90981-11030
Bulb, Position Indicator Lamp
|
90981-11030 |
— | ||
|
9098116020
|
9098116020
90981-16020 Bulb, Position Indicator Lamp |
90981-16020 |
US $6.09 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.74 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9451210800
|
9451210800
94512-10800
New Genuine Part
|
94512-10800 |
— | ||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
