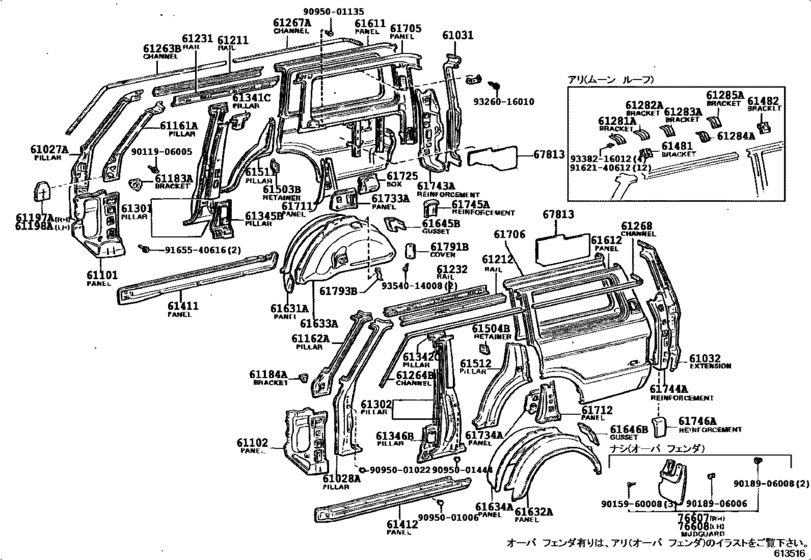

Side Member ([08.1987 - ] (8708- )CBU) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61027A
|
61027A
61027-90A10 Pillar Sub-Assy, Front Body, Outer Rh[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61027-90A10 |
US $735.28 |
||
|
61028A
|
61028A
61028-90A07 Pillar Sub-Assy, Front Body, Outer Lh[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61028-90A07 |
US $735.28 |
||
|
61031
|
61031
61031-90A02 Extension Sub-Assy, Quarter Panel, Rear Lower Rh[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61031-90A02 |
US $334.88 |
||
|
61032
|
61032
61032-90A00 Extension Sub-Assy, Quarter Panel, Rear Lower Lh[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61032-90A00 |
US $327.60 |
||
|
61101
|
61101
61101-90A08 Panel Sub-Assy, Cowl Side, Rh[08.1987 - 01.1990] FJ62,HJ6# |
61101-90A08 |
US $270.82 |
||
|
61102
|
61102
61102-90A07 Panel Sub-Assy, Cowl Side, Lh[08.1987 - 01.1990] FJ62,HJ6# |
61102-90A07 |
US $270.82 |
||
|
61161A
|
61161A
61161-90A03 Pillar, Front Body, Inner Rh[08.1987 - 12.1988] FJ62,HJ6# |
61161-90A03 |
US $371.28 |
||
|
61162A
|
61162A
61162-90A03 Pillar, Front Body, Inner Lh[08.1987 - 12.1988] FJ62,HJ6# |
61162-90A03 |
US $371.28 |
||
|
61183A
|
61183A
61183-90A01 Bracket, Instrument Panel Side[08.1987 - 01.1990] FJ62,HJ6# |
61183-90A01 |
US $23.44 |
||
|
61184A
|
61184A
61184-90A00 Bracket, Instrument Panel Side[08.1987 - 12.1988] FJ62,HJ6# |
61184-90A00 |
US $20.38 |
||
|
61197A
|
61197A
61197-90A00 Cover, Front Pillar, Rh[08.1987 - 01.1990] FJ62,HJ6#..ATM |
61197-90A00 |
US $8.30 |
||
|
61198A
|
61198A
61197-90A00 Cover, Front Pillar, Rh[08.1987 - 01.1990] FJ62,HJ6#..ATM |
61197-90A00 |
US $8.30 |
||
|
61211
|
61211
61211-90A01 Rail, Roof Side, Outer Rh[08.1987 - 01.1990] FJ62,HJ6# |
61211-90A01 |
US $219.86 |
||
|
61212
|
61212
61212-90A01 Rail, Roof Side, Outer Lh[08.1987 - 01.1990] FJ62,HJ6# |
61212-90A01 |
US $219.86 |
||
|
61231
|
61231
61231-90A03 Rail, Roof Side, Inner Rh[08.1987 - 01.1990] FJ62,HJ6# |
61231-90A03 |
US $65.08 |
||
|
61232
|
61232
61232-90A02 Rail, Roof Side, Inner Lh[08.1987 - 01.1990] FJ62,HJ6# |
61232-90A02 |
US $65.08 |
||
|
61263B
|
61263B
61263-90A01
Channel, Roof Drip Side, Front Rh
[08.1987 - 01.1990] FJ62,HJ6# |
61263-90A01 |
— | ||
|
61264B
|
61264B
61264-90A01
Channel, Roof Drip Side, Front Lh
[08.1987 - 01.1990] FJ62,HJ6# |
61264-90A01 |
— | ||
|
61267A
|
61267A
61267-90A00
Channel, Roof Drip, Rear Rh
[08.1987 - 01.1990] FJ62,HJ6# |
61267-90A00 |
— | ||
|
61268
|
61268
61268-90A00
Channel, Roof Drip, Rear Lh
[08.1987 - 01.1990] FJ62,HJ6# |
61268-90A00 |
— | ||
|
61281A
|
61281A
61281-90A00 Bracket, Sliding Roof Housing Mounting, No.1[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61281-90A00 |
US $84.45 |
||
|
61282A
|
61282A
61282-90A00 Bracket, Sliding Roof Housing Mounting, No.2[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61282-90A00 |
US $84.45 |
||
|
61283A
|
61283A
61283-90A00 Bracket, Sliding Roof Housing Mounting, No.3 Rh[08.1988 - 01.1990] FJ62..EFI |
61283-90A00 |
US $84.45 |
||
|
61284A
|
61284A
61283-90A00 Bracket, Sliding Roof Housing Mounting, No.3 Rh[08.1988 - 01.1990] FJ62..EFI |
61283-90A00 |
US $84.45 |
||
|
61285A
|
61285A
61285-90A00 Bracket, Sliding Roof Housing Side[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61285-90A00 |
US $84.45 |
||
|
61301
|
61301
61330-90A04 Pillar Sub-Assy, Center Body, Rh[08.1987 - 08.1988] HJ61;FJ62,HJ60..MTM..CBU |
61330-90A04 |
US $481.94 |
||
|
61302
|
61302
61340-90A05 Pillar Sub-Assy, Center Body, Lh[08.1987 - 08.1988] HJ61;FJ62,HJ60..MTM..CBU |
61340-90A05 |
US $481.94 |
||
|
61341C
|
61341C
61341-90A00 Pillar, Center Body, Inner Upper Rh[08.1987 - 01.1990] FJ62,HJ6# |
61341-90A00 |
US $100.46 |
||
|
61342C
|
61342C
61342-90A00 Pillar, Center Body, Inner Upper Lh[08.1987 - 01.1990] FJ62,HJ6# |
61342-90A00 |
US $100.46 |
||
|
61345B
|
61345B
61345-90A00 Pillar, Center Body, Inner Lower Rh[08.1987 - 01.1990] FJ62,HJ6# |
61345-90A00 |
US $173.26 |
||
|
61346B
|
61346B
61346-90A00 Pillar, Center Body, Inner Lower Lh[08.1987 - 01.1990] FJ62,HJ6# |
61346-90A00 |
US $173.26 |
||
|
61411
|
61411
61401-90A06
Panel, Rocker, Outer Rh
[08.1987 - 01.1990] FJ62,HJ6# |
61401-90A06 |
— | ||
|
61412
|
61412
61402-90A06
Panel, Rocker, Outer Lh
[08.1987 - 01.1990] FJ62,HJ6# |
61402-90A06 |
— | ||
|
61481
|
61481
61481-90A01 Bracket, Roof Side Rail Reinforce, No.1[08.1987 - 01.1990] FJ62,HJ61..VX クオータ パネル |
61481-90A01 |
US $113.57 |
||
|
61482
|
61482
61482-90A00 Bracket, Roof Side Rail Reinforce, No.2[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61482-90A00 |
US $113.57 |
||
|
61503B
|
61503B
61503-90A00 Retainer, Door Lock Striker Plate[08.1987 - 01.1990] FJ62,HJ6#..CBU |
61503-90A00 |
US $23.30 |
||
|
61504B
|
61504B
61504-90A00 Retainer, Door Lock Striker Plate[08.1987 - 01.1990] FJ62,HJ6#..CBU |
61504-90A00 |
US $23.30 |
||
|
61511
|
61511
61511-90A01 Pillar, Quarter Lock, Rh[08.1987 - 01.1990] FJ62,HJ6#..CBU |
61511-90A01 |
US $253.34 |
||
|
61512
|
61512
61512-90A01
Pillar, Quarter Lock, Lh
[08.1987 - 01.1990] FJ62,HJ6#..CBU |
61512-90A01 |
— | ||
|
61611
|
61611
61611-90A18
Panel, Quarter, Rh
[08.1987 - 01.1990] FJ62,HJ61..VX |
61611-90A18 |
— | ||
|
61612
|
61612
61612-90A15
Panel, Quarter, Lh
[08.1987 - 01.1990] FJ62,HJ61..VX |
61612-90A15 |
— | ||
|
61631A
|
61631A
61631-90A05
Panel, Quarter Wheel House, Outer Rh
[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61631-90A05 |
— | ||
|
61632A
|
61632A
61632-90A05
Panel, Quarter Wheel House, Outer Lh
[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61632-90A05 |
— | ||
|
61633A
|
61633A
61607-90A15 Panel, Quarter Wheel House, Inner Rh[08.1988 - 01.1990] FJ62..EFI |
61607-90A15 |
US $426.61 |
||
|
61634A
|
61634A
61608-90A13 Panel, Quarter Wheel House, Inner Lh[08.1988 - 01.1990] FJ62..EFI |
61608-90A13 |
US $426.61 |
||
|
61645B
|
61645B
61645-90A00 Gusset, Quarter Wheel House, Rear Rh[08.1987 - 01.1990] FJ62,HJ6#..CBU |
61645-90A00 |
US $45.72 |
||
|
61646B
|
61646B
61646-90A00 Gusset, Quarter Wheel House, Rear Lh[08.1987 - 01.1990] FJ62,HJ6#..CBU |
61646-90A00 |
US $45.72 |
||
|
61705
|
61705
61705-90A34 Panel Sub-Assy, Roof Side, Inner Rh[08.1988 - 01.1990] FJ62..EFI |
61705-90A34 |
US $698.88 |
||
| replacement | |||||
|
61705
|
61705
61705-90A35 Panel Sub-Assy, Roof Side, Inner Rh[08.1988 - 01.1990] FJ62..EFI |
61705-90A35 |
US $698.88 |
||
|
61706
|
61706
61706-90A69 Panel Sub-Assy, Roof Side, Inner Lh[08.1988 - 01.1990] FJ62..EFI |
61706-90A69 |
US $698.88 |
||
|
61711
|
61711
61711-90A01 Panel, Roof Side, Outer Rh[08.1987 - 01.1990] FJ62,HJ6# |
61711-90A01 |
US $218.40 |
||
|
61712
|
61712
61712-90A01 Panel, Roof Side, Outer Lh[08.1987 - 01.1990] FJ62,HJ6# |
61712-90A01 |
US $218.40 |
||
|
61725
|
61725
61709-90A02 Box, Fuel Inlet[08.1987 - 01.1990] FJ62,HJ6#..GX,VX |
61709-90A02 |
US $109.20 |
||
|
61733A
|
61733A
61733-90A05 Panel, Roof Side, Inner Front Rh[12.1987 - 01.1990] FJ62,HJ6#..CBU |
61733-90A05 |
US $52.12 |
||
|
61734A
|
61734A
61734-90A05 Panel, Roof Side, Inner Front Lh[12.1987 - 01.1990] FJ62,HJ6# |
61734-90A05 |
US $52.12 |
||
|
61743A
|
61743A
61743-90A02 Reinforcement, Back Door Opening, Inner Rh[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61743-90A02 |
US $238.78 |
||
| replacement | |||||
|
61743A
|
61743A
61743-90A01 Reinforcement, Back Door Opening, Inner Rh[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61743-90A01 |
US $273.73 |
||
|
61744A
|
61744A
61034-90A00 Reinforcement, Back Door Opening, Inner Lh[08.1987 - 01.1990] FJ62,HJ6#..HRF |
61034-90A00 |
US $234.42 |
||
|
61745A
|
61745A
61745-90A01 Reinforcement, Back Door Opening, Lower Rh[08.1987 - 01.1990] FJ62,HJ6#..CBU |
61745-90A01 |
US $62.32 |
||
|
61746A
|
61746A
61746-90A01 Reinforcement, Back Door Opening, Lower Lh[08.1987 - 01.1990] FJ62,HJ6#..CBU |
61746-90A01 |
US $62.32 |
||
|
61791B
|
61791B
61791-90B01 Cover, Roof Side Inner Service Hole[08.1987 - 01.1990] FJ62,HJ6#..CBU |
61791-90B01 |
US $5.24 |
||
|
61793B
|
61793B
61793-90A00 Bracket, Cooler Condenser, No.1[08.1987 - 01.1990] FJ62,HJ61..VX |
61793-90A00 |
US $4.08 |
||
|
67813
|
67813
67813-90A00 Pad, Quarter Panel Silencer[08.1987 - 01.1990] FJ62,HJ6#..CBU 右側 |
67813-90A00 |
US $22.42 |
||
|
67813
|
67813
67814-90A00 Pad, Quarter Panel Silencer[08.1987 - 01.1990] FJ62,HJ6#..CBU 左側 |
67814-90A00 |
US $31.30 |
||
|
76607
|
76607
76607-90A02
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1987 - 01.1990] FJ62,HJ61..VX |
76607-90A02 |
— | ||
|
76608
|
76608
76608-90A02
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[08.1987 - 01.1990] FJ62,HJ61..VX |
76608-90A02 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.25 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.95 |
||
|
9018906008
|
9018906008
90189-06008 Clip |
90189-06008 |
US $2.20 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.07 |
||
|
9095001022
|
9095001022
90950-01022
Plug, Hole, No.1(For Dash Panel)
|
90950-01022 |
— | ||
| replacement | |||||
|
9095001022
|
9095001022
90950-01882 Cover, Hole |
90950-01882 |
from US $1.96 |
||
|
9095001135
|
9095001135
90950-01135
New Genuine Part
|
90950-01135 |
— | ||
|
9095001444
|
9095001444
90950-01444 PLUG |
90950-01444 |
US $5.02 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.89 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9326016010
|
9326016010
93260-16010
New Genuine Part
|
93260-16010 |
— | ||
| replacement | |||||
|
9326016010
|
9326016010
93260-56010 SCREW |
93260-56010 |
US $1.25 |
||
|
9338216012
|
9338216012
93382-16012 New Genuine Part |
93382-16012 |
US $0.52 |
||
|
9354014008
|
9354014008
93540-14008 New Genuine Part |
93540-14008 |
US $1.61 |
||
