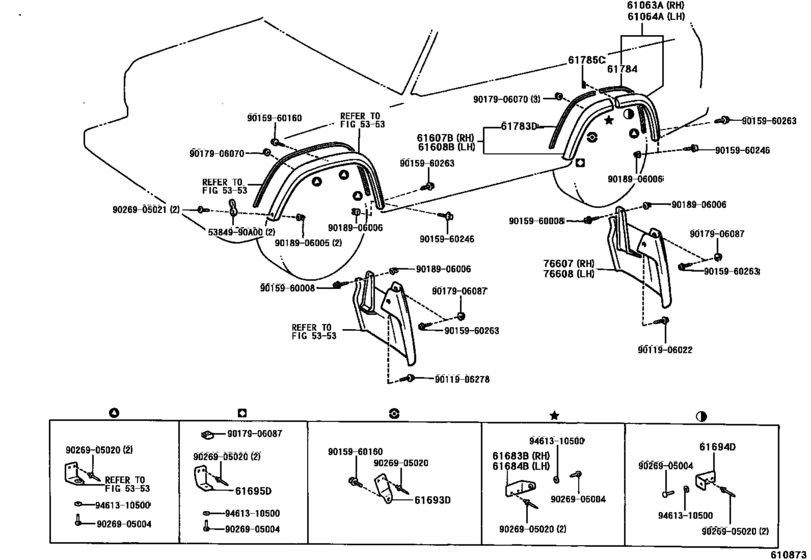

Side Member ([08.1987 - ] ｱﾘ(ｵｰﾊﾞ ﾌｪﾝﾀﾞ) (8708- )FJ62,HJ61) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61063A
|
61063A
61063-60900 Extension Sub-Assy, Rear Wheel Opening, No.2 Rh[08.1987 - 01.1990] FJ62,HJ61..VX |
61063-60900 |
US $361.09 |
||
|
61064A
|
61064A
61064-60900 Extension Sub-Assy, Rear Wheel Opening, No.2 Lh[08.1987 - 01.1990] FJ62,HJ61..VX |
61064-60900 |
US $361.09 |
||
|
61607B
|
61607B
61607-60900 Extension Sub-Assy, Rear Wheel Opening, Rh[08.1987 - 01.1990] FJ62,HJ61..VX |
61607-60900 |
US $243.15 |
||
|
61608B
|
61608B
61608-60900 Extension Sub-Assy, Rear Wheel Opening, Lh[08.1987 - 01.1990] FJ62,HJ61..VX |
61608-60900 |
US $283.92 |
||
|
61683B
|
61683B
61683-90A01
Bracket, Rear Wheel Opening, No.1 Rh
[08.1987 - 01.1990] FJ62,HJ61..VX |
61683-90A01 |
— | ||
|
61684B
|
61684B
61684-90A01
Bracket, Rear Wheel Opening, No.1 Lh
[08.1987 - 01.1990] FJ62,HJ61..VX |
61684-90A01 |
— | ||
|
61693D
|
61693D
61693-90A00
Bracket, Rear Wheel Opening, No.1
[08.1987 - 01.1990] FJ62,HJ61..VX |
61693-90A00 |
— | ||
|
61694D
|
61694D
61694-90A00
Bracket, Rear Wheel Opening, No.2
[08.1987 - 01.1990] FJ62,HJ61..VX |
61694-90A00 |
— | ||
|
61695D
|
61695D
61695-90A00
Bracket, Rear Wheel Opening, No.3
[08.1987 - 01.1990] FJ62,HJ61..VX |
61695-90A00 |
— | ||
|
61783D
|
61783D
61783-90A00
Pad, Rear Wheel Opening Extension, No.1
[08.1987 - 01.1990] FJ62,HJ61..VX |
61783-90A00 |
— | ||
| replacement | |||||
|
61783D
|
61783D
53851-90A00 Pad, Front Wheel Opening Extension, No.1 (Black)[08.1987 - 01.1990] FJ62,HJ61..VX |
53851-90A00 |
from US $11.25 |
||
|
61784
|
61784
61784-90A00
Pad, Rear Wheel Opening Extension, No.2
[08.1987 - 01.1990] FJ62,HJ61..VX |
61784-90A00 |
— | ||
| replacement | |||||
|
61784
|
61784
53851-90A00 Pad, Front Wheel Opening Extension, No.1 (Black)[08.1987 - 01.1990] FJ62,HJ61..VX |
53851-90A00 |
from US $11.25 |
||
|
61785C
|
61785C
61785-90A00 Pad, Rear Wheel Opening Extension, No.3[08.1987 - 01.1990] FJ62,HJ61..VX |
61785-90A00 |
US $3.49 |
||
|
76607
|
76607
76607-90A02
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1987 - 01.1990] FJ62,HJ61..VX |
76607-90A02 |
— | ||
|
76608
|
76608
76608-90A02
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[08.1987 - 01.1990] FJ62,HJ61..VX |
76608-90A02 |
— | ||
|
5384990A00
|
5384990A00
53849-90A00 Plate, Mudguard Rubber Set, Rear |
53849-90A00 |
US $3.05 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.33 |
||
|
9011906278
|
9011906278
90119-06278 BOLT |
90119-06278 |
from US $0.89 |
||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.25 |
||
|
9015960160
|
9015960160
90159-60160
New Genuine Part
|
90159-60160 |
— | ||
|
9015960246
|
9015960246
90159-60246
New Genuine Part
|
90159-60246 |
— | ||
|
9015960263
|
9015960263
90159-60263
New Genuine Part
|
90159-60263 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017906087
|
9017906087
90179-06087
New Genuine Part
|
90179-06087 |
— | ||
|
9018906005
|
9018906005
90189-06005 CLIP |
90189-06005 |
US $2.33 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.95 |
||
|
9026905004
|
9026905004
90269-05004 New Genuine Part |
90269-05004 |
US $7.88 |
||
|
9026905020
|
9026905020
90269-05020 PIN |
90269-05020 |
from US $1.08 |
||
|
9026905021
|
9026905021
90269-05021 New Genuine Part |
90269-05021 |
US $4.22 |
||
|
9461310500
|
9461310500
94613-10500 New Genuine Part |
94613-10500 |
US $3.05 |
||
