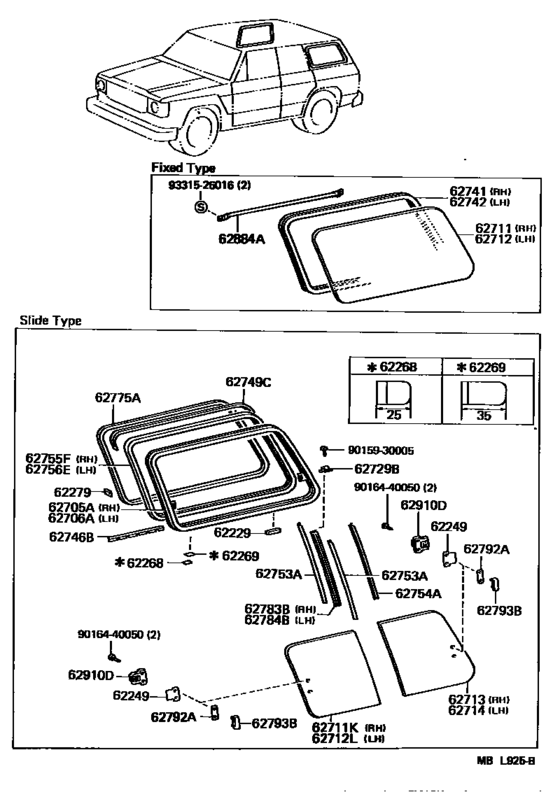

Side Window ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62229
|
62229
62229-95J00 Packing, Side Window[08.1988 - 01.1990] FJ62..EFI |
62229-95J00 |
US $2.15 |
||
|
62249
|
62249
62249-95700 Plate, Side Window, Rh[08.1988 - 01.1990] FJ62..EFI |
62249-95700 |
from US $1.46 |
||
|
62268
|
62268
62268-90A00 Film, Side Window Frame, B[08.1988 - 01.1990] FJ62..EFI |
62268-90A00 |
US $2.97 |
||
|
62269
|
62269
62269-90A00 Film, Side Window Frame, Rh[08.1988 - 01.1990] FJ62..EFI |
62269-90A00 |
US $2.34 |
||
|
62279
|
62279
62279-90K00 Spacer, Side Window Frame, Upper[08.1988 - 01.1990] FJ62..EFI |
62279-90K00 |
from US $1.12 |
||
|
62705A
|
62705A
62705-90A01
Frame Sub-Assy, Quarter Window, Rh
[08.1988 - 01.1990] FJ62..EFI |
62705-90A01 |
— | ||
|
62706A
|
62706A
62706-90A01
Frame Sub-Assy, Quarter Window, Lh
[08.1988 - 01.1990] FJ62..EFI |
62706-90A01 |
— | ||
|
62711K
|
62711K
62711-90A11 Glass, Quarter Window, Front Rh[08.1988 - 01.1990] FJ62..EFI ＊ＴＥＭ，厚さ＝４．０，ブロンズ |
62711-90A11 |
US $219.86 |
||
|
62712L
|
62712L
62712-90A10 Glass, Quarter Window, Front Lh[08.1988 - 01.1990] FJ62..EFI ＊ＴＥＭ，厚さ＝４．０，ブロンズ |
62712-90A10 |
US $219.86 |
||
|
62713
|
62713
62713-90A06 Glass, Quarter Window, Rear Rh[08.1988 - 01.1990] FJ62..EFI ＊ＴＥＭ，厚さ＝４．０，ブロンズ |
62713-90A06 |
US $224.22 |
||
|
62714
|
62714
62714-90A06 Glass, Quarter Window, Rear Lh[08.1988 - 01.1990] FJ62..EFI ＊ＴＥＭ，厚さ＝４．０，ブロンズ |
62714-90A06 |
US $224.22 |
||
|
62729B
|
62729B
62729-90K01 Pad, Window Center Sash[08.1988 - 01.1990] FJ62..EFI |
62729-90K01 |
US $3.58 |
||
|
62746B
|
62746B
62746-90K00 Weatherstrip, Side Window Glass, Rh[08.1988 - 01.1990] FJ62..EFI |
62746-90K00 |
US $5.50 |
||
|
62749C
|
62749C
62749-90A00
Seal, Quarter Window, Upper
[08.1988 - 01.1989] FJ62..EFI |
62749-90A00 |
— | ||
| replacement | |||||
|
62749C
|
62749C
62749-90A01
Seal, Quarter Window, Upper
[08.1988 - 01.1989] FJ62..EFI |
62749-90A01 |
— | ||
|
62749C
|
62749C
62749-90A01
Seal, Quarter Window, Upper
[01.1989 - 01.1990] FJ62..EFI |
62749-90A01 |
— | ||
|
62753A
|
62753A
62753-90A01
Weatherstrip, Quarter Window, Center
[08.1988 - 01.1990] FJ62..EFI |
62753-90A01 |
— | ||
|
62754A
|
62754A
62754-90A00
Weatherstrip, Quarter Window, Center No.2
[08.1988 - 01.1990] FJ62..EFI |
62754-90A00 |
— | ||
|
62755F
|
62755F
62755-90A01
Run, Quarter Window, Rh
[08.1988 - 01.1990] FJ62..EFI |
62755-90A01 |
— | ||
|
62756E
|
62756E
62756-90A01
Run, Quarter Window, Lh
[08.1988 - 01.1990] FJ62..EFI |
62756-90A01 |
— | ||
|
62775A
|
62775A
62775-90A00-13 Clip, Quarter Window[08.1988 - 01.1990] FJ62..EFI SHADOW GRAY,TRIM1# |
62775-90A00-13 |
US $68.14 |
||
|
62775A
|
62775A
62775-90A00-16
Clip, Quarter Window
[08.1988 - 01.1990] FJ62..EFI SEPIA BROWN,TRIM4# |
62775-90A00-16 |
— | ||
|
62783B
|
62783B
62783-90A00
Sash, Quarter Window, Center Rh
[08.1988 - 01.1990] FJ62..EFI |
62783-90A00 |
— | ||
|
62784B
|
62784B
62784-90A00
Sash, Quarter Window, Center Lh
[08.1988 - 01.1990] FJ62..EFI |
62784-90A00 |
— | ||
|
62792A
|
62792A
62792-95A00 Packing, Side Rear Window, Rh[08.1988 - 01.1990] FJ62..EFI |
62792-95A00 |
from US $1.54 |
||
|
62793B
|
62793B
62793-95704 Retainer, Side Window Lock, No.1[08.1988 - 01.1990] FJ62..EFI |
62793-95704 |
from US $6.10 |
||
|
62910D
|
62910D
62910-95703 Lock, Side Window, No.1 Glass (For Slide Type)[08.1988 - 01.1990] FJ62..EFI |
62910-95703 |
from US $11.19 |
||
|
9015930005
|
9015930005
90159-30005 SCREW |
90159-30005 |
US $1.61 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
from US $0.78 |
||
|
9331526016
|
9331526016
93315-26016
New Genuine Part
|
93315-26016 |
— | ||
