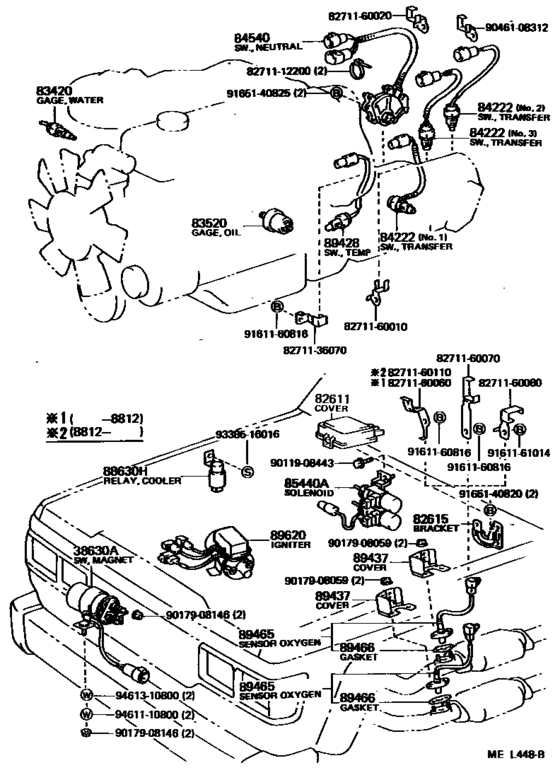

Switch & Relay & Computer ([08.1987 - ] (8708- )EFI) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38630A
|
38630A
38630-60040 Switch Assy, Magnet[08.1987 - 01.1990] FJ62..CBU |
38630-60040 |
US $238.78 |
||
|
82611
|
82611
82611-90K00 Cover, Fuse Block[08.1987 - 01.1990] FJ62..CBU |
82611-90K00 |
from US $9.98 |
||
|
82615
|
82615
82615-90A03 Bracket, Fuse[08.1987 - 01.1990] FJ62,HJ6#..DSL,EFI,TD |
82615-90A03 |
US $15.29 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1987 - 01.1990] FJ62,HJ6# |
83420-20020 |
from US $28.46 |
||
|
83520
|
83520
83520-60010
Gage Assy,oil Pressure Sender
[08.1987 - 01.1990] FJ62 |
83520-60010 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-60011 Gage Assy,oil Pressure Sender[08.1987 - 01.1990] FJ62 |
83520-60011 |
from US $62.50 |
||
|
84222
|
84222
84222-60021 Switch, Transfer Indicator, No.1[08.1987 - 01.1990] FJ62,HJ6# ＮＯ．１ |
84222-60021 |
from US $68.32 |
||
|
84222
|
84222
84222-60030 Switch, Transfer Indicator, No.1[08.1987 - 01.1990] FJ62,HJ6# ＮＯ．２ |
84222-60030 |
US $73.92 |
||
|
84222
|
84222
84222-60040
Switch, Transfer Indicator, No.1
[08.1987 - 01.1990] FJ62,HJ6#..CBU ＮＯ．３ |
84222-60040 |
— | ||
| replacement | |||||
|
84222
|
84222
84222-60041 Switch, Transfer Indicator, No.3[08.1987 - 01.1990] FJ62,HJ6#..CBU ＮＯ．３ |
84222-60041 |
from US $43.51 |
||
|
84222
|
84222
84222-60071 Switch, Transfer Indicator, No.1[08.1987 - 01.1990] FJ62..EFI ＮＯ．４; FJ62,HJ6#..CBU..(CBR,DSL,TD) ＮＯ．４ |
84222-60071 |
US $58.82 |
||
|
84540
|
84540
84540-60020
Switch Assy, Neutral Start
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
84540-60020 |
— | ||
|
85440A
|
85440A
85440-60120
Solenoid Assy, Front Drive
[08.1987 - 01.1990] FJ62..CBU |
85440-60120 |
— | ||
|
88630H
|
88630H
88630-90A01
Relay Assy, Cooler
[08.1988 - 01.1990] FJ62..EFI |
88630-90A01 |
— | ||
|
89428
|
89428
89428-36010
Switch, Temperature Detect, No.2
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
89428-36010 |
— | ||
|
89437
|
89437
89437-60010 Cover, Sensor[08.1988 - 01.1990] FJ62..EFI OYXGEN SENSOR |
89437-60010 |
US $19.36 |
||
|
89437
|
89437
89437-90A00 Cover, Sensor[08.1987 - 01.1990] FJ62,HJ61..VX AMBIENT TEMP.SENSOR; FJ62,HJ60..GX AMBIENT TEMP.SENSOR |
89437-90A00 |
US $8.59 |
||
|
89465
|
89465
89465-69015 Sensor, Oxygen[08.1988 - 01.1990] FJ62..EFI |
89465-69015 |
US $145.60 |
||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[10.1988 - 01.1990] FJ62..EFI |
89466-20020 |
from US $12.45 |
||
|
89466
|
89466
89466-30010
Gasket(For Exhaust Manifold Plate)
[08.1988 - 10.1988] FJ62..EFI |
89466-30010 |
— | ||
| replacement | |||||
|
89466
|
89466
89466-20020 Gasket(For Exhaust Manifold Plate)[08.1988 - 10.1988] FJ62..EFI |
89466-20020 |
from US $12.45 |
||
|
89620
|
89620
89620-14410 Igniter Assy[08.1988 - 01.1990] FJ62..EFI |
89620-14410 |
US $441.17 |
||
| replacement | |||||
|
89620
|
89620
89620-22420
Igniter Assy
[08.1988 - 01.1990] FJ62..EFI |
89620-22420 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8271136070
|
8271136070
82711-36070 Wire, Fuse To Fuse(for Combustion Heater) |
82711-36070 |
US $8.30 |
||
|
8271160010
|
8271160010
82711-60010
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60010 |
— | ||
|
8271160020
|
8271160020
82711-60020
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60020 |
— | ||
|
8271160060
|
8271160060
82711-60060 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60060 |
US $9.61 |
||
|
8271160070
|
8271160070
82711-60070 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60070 |
US $9.90 |
||
|
8271160080
|
8271160080
82711-60080 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60080 |
US $9.90 |
||
|
8271160110
|
8271160110
82711-60110 Wire, Fuse To Fuse(for Combustion Heater) |
82711-60110 |
US $4.08 |
||
|
9011908443
|
9011908443
90119-08443
New Genuine Part
|
90119-08443 |
— | ||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.78 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046108312
|
9046108312
90461-08312 New Genuine Part |
90461-08312 |
US $4.89 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161161014
|
9161161014
91611-61014
New Genuine Part
|
91611-61014 |
— | ||
| replacement | |||||
|
9161161014
|
9161161014
91612-B1014 BOLT WWASHER |
91612-B1014 |
US $0.61 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
from US $1.67 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.84 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
