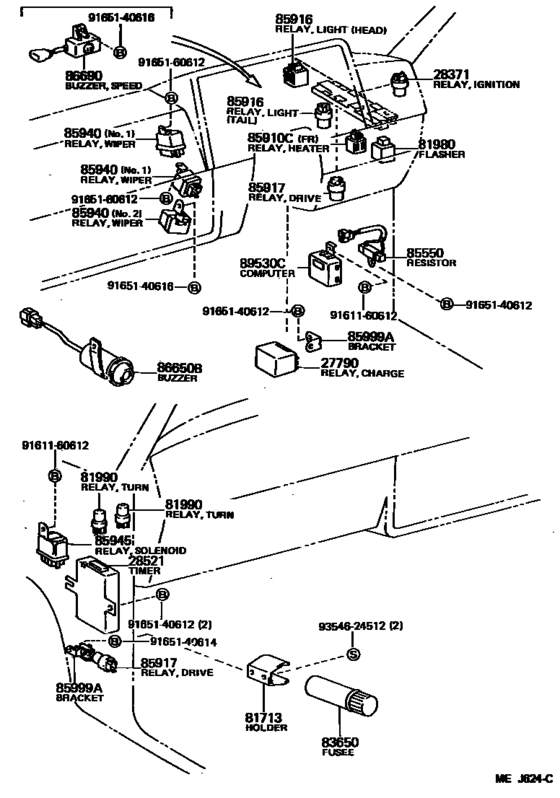

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27790
|
27790
27790-13010
Relay Assy, Charge Lamp
[08.1988 - 01.1990] 3FE..FJ62 |
27790-13010 |
— | ||
|
28371
|
28371
90987-02004 Relay Assy, Starter[08.1987 - 01.1990] 3F#..FJ62 |
90987-02004 |
from US $27.38 |
||
| replacement | |||||
|
28371
|
28371
909870200483 [08.1987 - 01.1990] 3F#..FJ62 |
909870200483 |
US $53.75 |
||
|
81713
|
81713
81713-90500 Holder, Fusee[08.1987 - 01.1990] FJ62,HJ6# |
81713-90500 |
US $4.51 |
||
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[08.1987 - 01.1990] FJ62 |
81980-16010 |
US $134.48 |
||
|
83650
|
83650
90986-01003
Fusee
[08.1987 - 01.1990] FJ62,HJ6# |
90986-01003 |
— | ||
|
85910C
|
85910C
88630-14010 Relay Assy (For Heater Blower Motor)[08.1987 - 01.1990] FJ62..CBU REAR |
88630-14010 |
US $29 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[03.1988 - 01.1990] FJ62 FRONT |
90987-04002 |
from US $23.67 |
||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[08.1987 - 01.1990] FJ62 TAIL |
90987-01003 |
from US $34.73 |
||
|
85916
|
85916
90987-02006 Relay[08.1987 - 01.1990] FJ62 HEAD |
90987-02006 |
from US $26.07 |
||
|
85917
|
85917
90987-03001 Relay[08.1987 - 01.1990] FJ62..CBU |
90987-03001 |
from US $31.77 |
||
|
85940
|
85940
85940-90A08 Relay Assy, Windshield Wiper[08.1987 - 01.1990] FJ62..CBU NO.2,ｶﾝｹﾂ ﾖｳ |
85940-90A08 |
US $160.16 |
||
|
85940
|
85940
85940-90A10
Relay Assy, Windshield Wiper
[08.1988 - 01.1990] FJ62..EFI NO.3,ﾘﾔ ﾖｳ |
85940-90A10 |
— | ||
|
85999A
|
85999A
85999-12050
Bracket, Main Relay
[08.1987 - 01.1990] FJ62,HJ6# FRONT DRIVE RELAY |
85999-12050 |
— | ||
|
85999A
|
85999A
85999-55010
Bracket, Relay, No.2
[08.1988 - 01.1990] FJ62..EFI CCO SENSOR CONECTOR |
85999-55010 |
— | ||
|
85999A
|
85999A
85999-89101 Bracket Sub-Assy, Flasher[08.1987 - 01.1990] FJ62..EFI CHAGE LAMP RELAY |
85999-89101 |
US $2.77 |
||
|
86690
|
86690
86650-90K01 Buzzer Assy, Speed Indicator[08.1988 - 01.1990] FJ62..EFI |
86650-90K01 |
US $43.24 |
||
|
89530C
|
89530C
89530-60020
Computer Assy, Transmission Control
[08.1988 - 01.1990] FJ62..EFI |
89530-60020 |
— | ||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
|
9354624512
|
9354624512
93546-24512 New Genuine Part |
93546-24512 |
US $1.31 |
||
