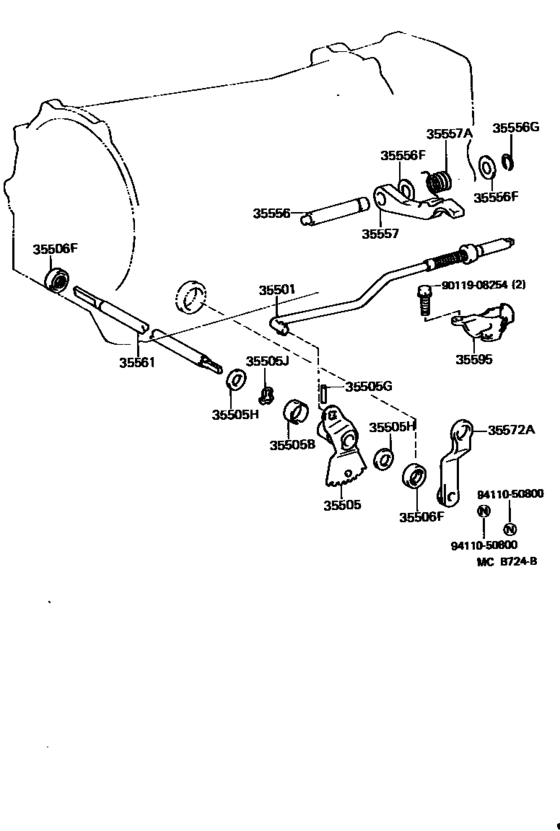

Throttle Link & Valve Lever (Atm) ([08.1987 - ] (8708- )ATM) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35501
|
35501
35501-36010 Rod Sub-Assy, Parking Lock[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35501-36010 |
US $48.78 |
||
|
35505
|
35505
35505-36020 Lever Sub-Assy, Manual Valve[09.1987 - 01.1990] FJ62,HJ6#..ATM |
35505-36020 |
US $38.29 |
||
|
35505B
|
35505B
90560-20008 Spacer (For Manual Valve Lever)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90560-20008 |
US $0.79 |
||
|
35505G
|
35505G
90254-04012 Pin, Slotted Spring (For Manual Valve Lever)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90254-04012 |
US $1.14 |
||
|
35505H
|
35505H
90201-12042 Washer, Plate (For Manual Valve Lever)[08.1987 - 09.1989] FJ62,HJ6#..ATM |
90201-12042 |
US $1.89 |
||
|
35505J
|
35505J
90206-12001 Washer, Wave (For Manual Valve Lever)[08.1987 - 09.1989] FJ62,HJ6#..ATM |
90206-12001 |
US $3.20 |
||
|
35506F
|
35506F
90311-12002 Oil Seal, Type T[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90311-12002 |
from US $3.93 |
||
|
35556
|
35556
35556-60010 Shaft, Parking Lock Pawl[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35556-60010 |
US $25.04 |
||
|
35556F
|
35556F
90201-16012 Washer, Plate (For Parking Lock Pawl Shaft)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90201-16012 |
US $0.87 |
||
|
35556G
|
35556G
96150-01600 Ring, Snap (For Shift & Select Lever Shaft)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
96150-01600 |
US $3.67 |
||
|
35557
|
35557
35557-36010 Pawl, Parking Lock[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35557-36010 |
US $56.78 |
||
|
35557A
|
35557A
90508-30004 Spring, Torsion (For Parking Lock Pawl)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90508-30004 |
US $3.93 |
||
|
35561
|
35561
35561-60010 Shaft, Manual Valve Lever[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35561-60010 |
US $27.81 |
||
|
35572A
|
35572A
35572-60020 Lever, Transmission Control Shaft[08.1988 - 01.1990] FJ62..EFI |
35572-60020 |
US $27.23 |
||
|
35595
|
35595
35595-36010 Bracket, Parking Lock Pawl[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35595-36010 |
US $11.79 |
||
|
9011908254
|
9011908254
90119-08254 New Genuine Part |
90119-08254 |
US $1.89 |
||
| replacement | |||||
|
9011908254
|
9011908254
90119-08A43 New Genuine Part |
90119-08A43 |
US $1.43 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
