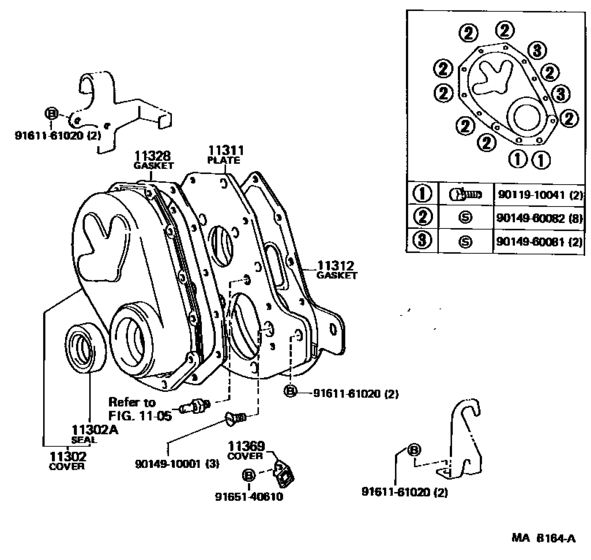

Timing Gear Cover & Rear End Plate ([08.1988 - ] (8808- )3FE) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11302-61031
Cover Sub-Assy, Timing Chain Or Belt
[08.1987 - 01.1990] 3F#..FJ62 |
11302-61031 |
— | ||
|
11302A
|
11302A
90311-45008 Seal, Oil(For Timing Chain Or Belt Cover)[08.1987 - 01.1990] 3F#..FJ62 |
90311-45008 |
from US $9.68 |
||
|
11311
|
11311
11311-61020
Plate, Front End
[08.1987 - 01.1990] 3F#..FJ62 |
11311-61020 |
— | ||
|
11312
|
11312
11312-61020
Gasket, Front End Plate
[08.1987 - 01.1990] 3F#..FJ62 |
11312-61020 |
— | ||
| replacement | |||||
|
11312
|
11312
11312-61021 Gasket, Front End Plate[08.1987 - 01.1990] 3F#..FJ62 |
11312-61021 |
US $19.49 |
||
|
11312
|
11312
11312-61021 Gasket, Front End Plate[01.1990 - 01.1990] 3F#..FJ62 |
11312-61021 |
US $19.49 |
||
|
11328
|
11328
11328-61010 Gasket, Timing Gear Or Chain Cover[08.1987 - 01.1990] 3F#..FJ62 |
11328-61010 |
from US $9.32 |
||
|
11369
|
11369
11369-60011
Cover, Flywheel Housing Front
[08.1987 - 01.1990] 3F#..FJ62 |
11369-60011 |
— | ||
|
9011910041
|
9011910041
90119-10041 New Genuine Part |
90119-10041 |
US $2.75 |
||
|
9014910001
|
9014910001
90149-10001 New Genuine Part |
90149-10001 |
US $2.18 |
||
|
9014960081
|
9014960081
90149-60081
New Genuine Part
|
90149-60081 |
— | ||
|
9014960082
|
9014960082
90149-60082
SCREW
|
90149-60082 |
— | ||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.68 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.05 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
