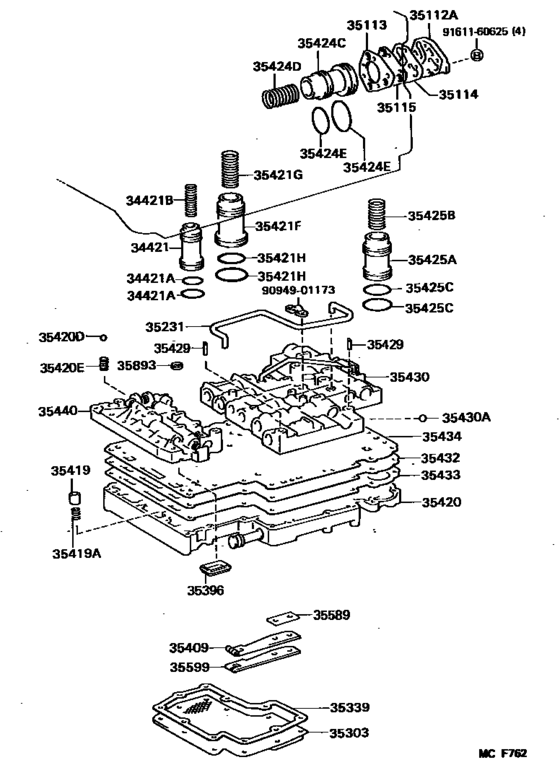

Valve Body & Oil Strainer (Atm) ([08.1987 - ] A440F (8708- )ATM) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34421
|
34421
34421-36010
Piston, Overdrive Brake Accumulator
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
34421-36010 |
— | ||
| replacement | |||||
|
34421
|
34421
34421-37010 Piston, Overdrive Brake Accumulator[08.1987 - 01.1990] FJ62,HJ6#..ATM |
34421-37010 |
US $11.36 |
||
|
34421A
|
34421A
90301-26003 Ring, O (For Overdrive Brake Accumulator Piston)[08.1987 - 01.1990] FJ62,HJ6#..ATM 上側 |
90301-26003 |
from US $2.97 |
||
|
34421A
|
34421A
90301-29003 Ring, O (For Overdrive Brake Accumulator Piston)[08.1987 - 01.1990] FJ62,HJ6#..ATM 下側 |
90301-29003 |
from US $2.87 |
||
|
34421B
|
34421B
90501-33004
Spring (For Overdrive Brake Accumulator Piston)
[08.1988 - 01.1990] FJ62..EFI |
90501-33004 |
— | ||
|
35112A
|
35112A
35112-36010 Cover, Front Clutch Accumulator[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35112-36010 |
US $32.61 |
||
|
35113
|
35113
35113-36010 Gasket, Front Clutch Accumlator, No.2[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35113-36010 |
US $5.39 |
||
| replacement | |||||
|
35113
|
35113
35113-60010 Gasket, Front Clutch Accumlator, No.2[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35113-60010 |
US $5.42 |
||
|
35114
|
35114
35114-36010 Gasket, Front Clutch Accumlator, No.1[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35114-36010 |
US $5.39 |
||
| replacement | |||||
|
35114
|
35114
35114-60010 Gasket, Front Clutch Accumlator, No.1[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35114-60010 |
US $5.42 |
||
|
35115
|
35115
35115-36010 Plate, Front Clutch Accumulator[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35115-36010 |
US $10.34 |
||
|
35231
|
35231
35231-36010 Tube, Lock Up Signal Valve Apply[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35231-36010 |
US $10.77 |
||
|
35303
|
35303
35303-60010 Strainer Sub-Assy, Oil[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35303-60010 |
US $101.68 |
||
|
35339
|
35339
35339-36010
Gasket, Oil Strainer
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35339-36010 |
— | ||
| replacement | |||||
|
35339
|
35339
35339-60020 Gasket, Oil Strainer[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35339-60020 |
US $4.12 |
||
|
35396
|
35396
35396-36010
Strainer, Throttle Oil
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35396-36010 |
— | ||
|
35409
|
35409
35409-36010 Spring Sub-Assy, Manual Detent[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35409-36010 |
US $8.01 |
||
|
35419
|
35419
35419-36010 Valve, Check, No.1[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35419-36010 |
US $4.51 |
||
|
35419A
|
35419A
90501-10098 Spring, Compression (For Check Valve)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90501-10098 |
US $1.89 |
||
|
35420
|
35420
35420-60030 Body Assy, Lower Valve[08.1988 - 01.1990] FJ62..EFI |
35420-60030 |
US $626.08 |
||
| replacements | |||||
|
35420
|
35420
35420-60031 Body Assy, Lower Valve[08.1988 - 01.1990] FJ62..EFI |
35420-60031 |
US $624.62 |
||
|
35420
|
35420
90105-05017 New Genuine Part[08.1988 - 01.1990] FJ62..EFI |
90105-05017 |
US $0.87 |
||
|
35420D
|
35420D
90360-06004 Ball, Detent(For Gear Shift Head No.4)[08.1987 - 01.1990] FJ62,HJ6#..ATM 外径＝６．３５，ＳＴＥＥＬ |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
35420D
|
35420D
90080-36191
Ball, Check Valve
[08.1987 - 01.1990] FJ62,HJ6#..ATM 外径＝６．３５，ＳＴＥＥＬ |
90080-36191 |
— | ||
|
35420D
|
35420D
90360-09001 Ball (For Manual Transmission Oil Pump)[08.1987 - 01.1990] FJ62,HJ6#..ATM 外径＝８．７３ |
90360-09001 |
US $1.18 |
||
|
35420E
|
35420E
90503-04003 Spring (For Lower Valve Body)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90503-04003 |
US $1.89 |
||
|
35421F
|
35421F
35423-36010 Piston, Accumulator, No.2[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35423-36010 |
US $24.75 |
||
|
35421G
|
35421G
90501-40008 Spring, Compression (For Accumulator Piston No.2)[08.1987 - 01.1990] FJ62,HJ60..ATM |
90501-40008 |
US $5.39 |
||
|
35421H
|
35421H
90301-29003 Ring, O (For Overdrive Brake Accumulator Piston)[08.1987 - 01.1990] FJ62,HJ6#..ATM 上側 |
90301-29003 |
from US $2.87 |
||
|
35421H
|
35421H
90301-37004 Ring (For Accumulator Piston No.2)[08.1987 - 01.1990] FJ62,HJ6#..ATM 下側 |
90301-37004 |
US $3.76 |
||
|
35424C
|
35424C
35424-36010 Piston, C-1 Accumulator[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35424-36010 |
US $24.75 |
||
|
35424D
|
35424D
90501-27008 Spring, Compression (For C-1 Accumulator Piston)[08.1987 - 01.1990] FJ62,HJ6#..ATM |
90501-27008 |
US $1.89 |
||
|
35424E
|
35424E
90301-22003 Ring, O (For C-1 Accumulator Piston)[08.1987 - 01.1990] FJ62,HJ6#..ATM フロント |
90301-22003 |
from US $2.59 |
||
|
35424E
|
35424E
90301-24002 Ring, O (For C-1 Accumulator Piston)[08.1987 - 01.1990] FJ62,HJ6#..ATM リヤ |
90301-24002 |
US $4.54 |
||
|
35425A
|
35425A
35425-36010 Piston, C-2 Accumulator[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35425-36010 |
US $17.18 |
||
|
35425B
|
35425B
90501-30014 Spring, Compression (For C-2 Accumulator Piston)[08.1988 - 09.1988] FJ62..EFI |
90501-30014 |
US $5.53 |
||
|
35425B
|
35425B
90501-35009 Spring, Compression (For C-2 Accumulator Piston)[09.1988 - 01.1990] FJ62,HJ6#..ATM |
90501-35009 |
US $6.70 |
||
|
35425C
|
35425C
90301-28003 Ring, O (For C-1 Accumulator Piston)[08.1987 - 01.1990] FJ62,HJ6#..ATM 上側 |
90301-28003 |
from US $2.61 |
||
|
35425C
|
35425C
90301-33006 Ring, O (For C-2 Accumulator Piston)[08.1987 - 01.1990] FJ62,HJ6#..ATM 下側 |
90301-33006 |
US $1.40 |
||
|
35429
|
35429
35429-36010 Tube, Line Pressure[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35429-36010 |
US $4.30 |
||
|
35430
|
35430
35430-60070 Body Assy, Rear Upper Valve[08.1988 - 01.1990] FJ62..EFI |
35430-60070 |
US $423.70 |
||
|
35430A
|
35430A
90360-06004 Ball, Detent(For Gear Shift Head No.4)[08.1987 - 01.1990] FJ62,HJ6#..ATM 外径＝６．３５，ＳＴＥＥＬ |
90360-06004 |
from US $0.82 |
||
| replacement | |||||
|
35430A
|
35430A
90080-36191
Ball, Check Valve
[08.1987 - 01.1990] FJ62,HJ6#..ATM 外径＝６．３５，ＳＴＥＥＬ |
90080-36191 |
— | ||
|
35432
|
35432
35432-60011 Plate, Valve Body, No.1[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35432-60011 |
US $64.06 |
||
|
35433
|
35433
35433-36010
Gasket, Valve Body, No.1
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35433-36010 |
— | ||
|
35434
|
35434
35434-36010
Gasket, Valve Body, No.2
[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35434-36010 |
— | ||
|
35440
|
35440
35440-60011 Body Assy, Front Upper Valve[08.1988 - 01.1990] FJ62..EFI |
35440-60011 |
US $257.71 |
||
|
35589
|
35589
35589-36010 Spacer, Manual Detent Spring[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35589-36010 |
US $2.77 |
||
|
35599
|
35599
35599-36010 Cover, Manual Detent Spring[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35599-36010 |
US $4.37 |
||
|
35893
|
35893
35893-36010 Gasket, Center Support Apply[08.1987 - 01.1990] FJ62,HJ6#..ATM |
35893-36010 |
US $3.40 |
||
|
9094901173
|
9094901173
90949-01173 New Genuine Part |
90949-01173 |
US $1.89 |
||
|
9161160625
|
9161160625
91611-60625
Bolt, W/washer (For Parking Cove & Case)
|
91611-60625 |
— | ||
| replacement | |||||
|
9161160625
|
9161160625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
