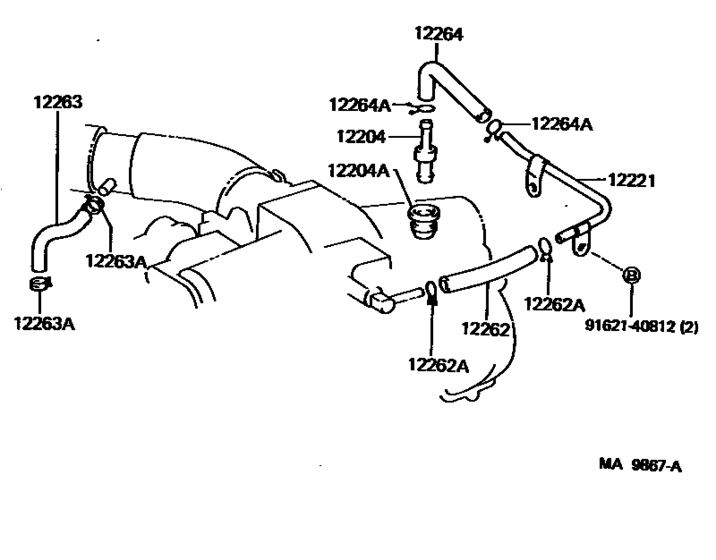

Ventilation Hose ([08.1988 - ] (8808- )3FE) Diagram Toyota LAND CRUISER
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- FJ62G
- grade
- VX
- Roof
- HRF
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 60
- From
- 08.1988
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-35040 Valve Sub-Assy, Ventilation[08.1988 - 01.1990] 3FE..FJ62 |
12204-35040 |
from US $14.02 |
||
|
12204A
|
12204A
90480-18001 Grommet(For Ventilation System)[08.1987 - 01.1990] 3F#..FJ62 |
90480-18001 |
from US $3.71 |
||
|
12221
|
12221
12221-61010
Tube, Ventilation No.1
[08.1988 - 01.1990] 3FE..FJ62 |
12221-61010 |
— | ||
|
12262
|
12262
12261-61060 Hose, Ventilation, No.2[08.1988 - 01.1990] 3FE..FJ62 |
12261-61060 |
from US $12.23 |
||
|
12262A
|
12262A
90467-15120 Clip Or Clamp(For Ventilation Hose)[08.1987 - 01.1990] 3F#..FJ62 |
90467-15120 |
from US $0.93 |
||
|
12263
|
12263
12262-61020
Hose, Ventilation, No.3
[08.1988 - 01.1990] 3FE..FJ62 |
12262-61020 |
— | ||
|
12263A
|
12263A
90467-18002
Clip(For Ventilation Hose)
[08.1988 - 01.1990] 3FE..FJ62 |
90467-18002 |
— | ||
| replacement | |||||
|
12263A
|
12263A
90467-18008 Clip(For Water By-Pass Hose No.2)[08.1988 - 01.1990] 3FE..FJ62 |
90467-18008 |
from US $1.08 |
||
|
12264
|
12264
90445-16038
Hose, Ventilation, No.4
[08.1988 - 01.1990] 3FE..FJ62 |
90445-16038 |
— | ||
|
12264A
|
12264A
90467-15120 Clip Or Clamp(For Ventilation Hose)[08.1988 - 01.1990] 3FE..FJ62 |
90467-15120 |
from US $0.93 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
