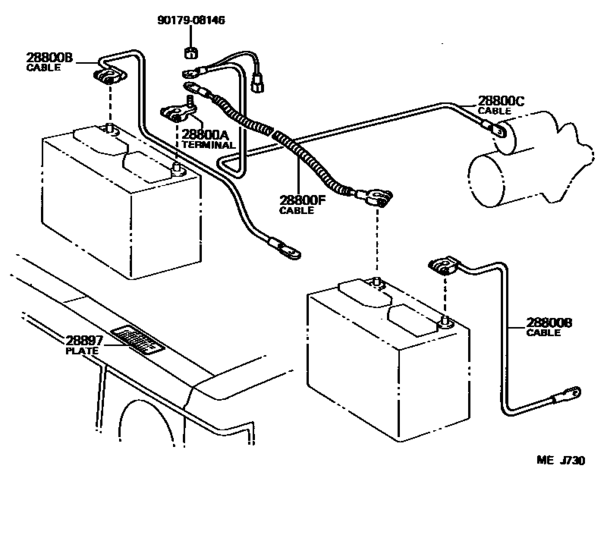

Battery & Battery Cable ([08.1987 - ] (8708- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800A
|
28800A
90982-05030 Terminal, Battery Positive[08.1987 - 01.1990] 3F..FJ62..CBU; 3F..FJ62..IV4;12HT,3FE,2H..FJ62,HJ6# |
90982-05030 |
from US $12.81 |
||
|
28800B
|
28800B
90982-02207
Cable, Battery To Ground
[08.1987 - 01.1990] 3F..FJ62..IV4 |
90982-02207 |
— | ||
|
28800C
|
28800C
90982-01354
Cable, Battery To Starter(For Battery To Main Switch)
[08.1987 - 01.1990] 3F..FJ62..IV4; 3F..FJ62..CBU ｱﾘ(ｳｲﾝﾁ) |
90982-01354 |
— | ||
|
28800F
|
28800F
90982-03020 Cable, Battery To Battery[08.1987 - 01.1990] 3F..FJ62..IV4 |
90982-03020 |
US $61.01 |
||
|
28897
|
28897
28897-54030 Plate, Battery Caution[08.1987 - 01.1990] 3F..FJ62..IV4 |
28897-54030 |
from US $0.89 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
