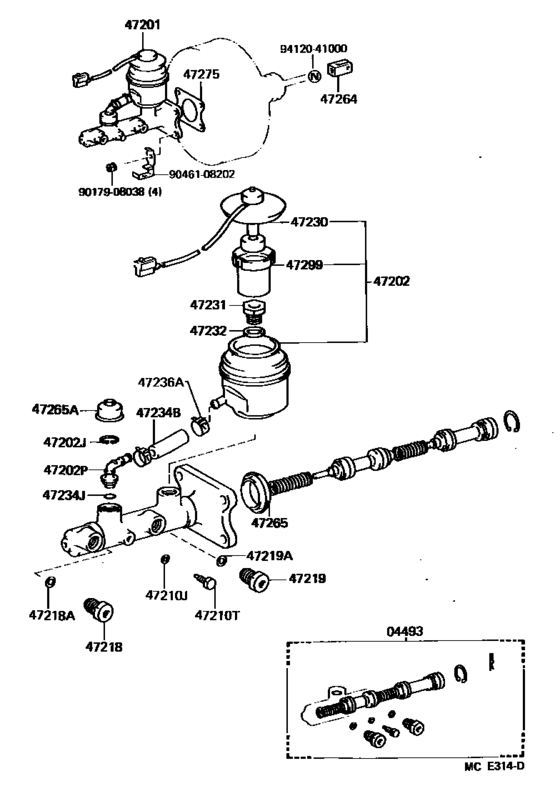

Brake Master Cylinder ([08.1987 - ] (8708- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-60090 Cylinder Kit, Brake Master[08.1987 - 01.1990] FJ62..IV4 |
04493-60090 |
US $104.83 |
||
| replacement | |||||
|
04493
|
04493
04493-60170 Cylinder Kit, Brake MasterBRAKE MASTER [08.1987 - 01.1990] FJ62..IV4 |
04493-60170 |
US $113.16 |
||
|
47201
|
47201
47201-60210
Cylinder Sub-Assy, Brake Master
[08.1987 - 01.1990] FJ62..IV4 |
47201-60210 |
— | ||
|
47202
|
47202
47202-60030
Reservoir Sub-Assy, Brake Master Cylinder
[08.1987 - 01.1990] FJ62..IV4 |
47202-60030 |
— | ||
|
47202J
|
47202J
96151-02000 Ring, Snap (For Low Coast Shift Control Valve)[08.1987 - 01.1990] FJ62..IV4 |
96151-02000 |
US $1.27 |
||
|
47202P
|
47202P
90407-10003
Union, Reservoir(For Brake Master Cylinder Side)
[08.1987 - 01.1990] FJ62..IV4 |
90407-10003 |
— | ||
| replacement | |||||
|
47202P
|
47202P
90407-10004
Union, Reservoir(For Brake Master Cylinder Side)
[08.1987 - 01.1990] FJ62..IV4 |
90407-10004 |
— | ||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[08.1987 - 01.1990] FJ62,HJ6# |
90430-06104 |
from US $1.79 |
||
|
47210T
|
47210T
90109-06008 Bolt(For Brake Master Cylinder)[08.1987 - 01.1990] FJ62..IV4 |
90109-06008 |
US $0.44 |
||
|
47218
|
47218
47218-12040
Plug, Master Cylinder Fluid Outlet
[08.1987 - 01.1990] FJ62..IV4 |
47218-12040 |
— | ||
|
47218A
|
47218A
90430-09253
Gasket(For Clutch Master Cylinder Accumulator)
[08.1987 - 01.1990] FJ62..IV4 |
90430-09253 |
— | ||
|
47219
|
47219
47218-12040
Plug, Master Cylinder Fluid Outlet
[08.1987 - 01.1990] FJ62..IV4 |
47218-12040 |
— | ||
|
47219A
|
47219A
90430-09253
Gasket(For Clutch Master Cylinder Accumulator)
[08.1987 - 01.1990] FJ62..IV4 |
90430-09253 |
— | ||
|
47230
|
47230
84460-12070 Cap Assy, Brake Master Cylinder Reservoir Filler[08.1987 - 01.1990] FJ62,HJ6# |
84460-12070 |
US $64.82 |
||
|
47231
|
47231
47231-30010 Bolt, Clutch Master Cylinder Reservoir Set[08.1987 - 01.1990] FJ62..IV4 |
47231-30010 |
US $5.02 |
||
|
47232
|
47232
47232-30010 Washer, Reservoir Set Bolt[08.1987 - 01.1990] FJ62..IV4 |
47232-30010 |
US $3.94 |
||
|
47234B
|
47234B
47234-14010 Tube, Reservoir, No.1[08.1987 - 01.1990] FJ62..IV4 |
47234-14010 |
US $9.09 |
||
|
47234J
|
47234J
90301-14001 Ring, O(For Clutch Master Cylinder Union)[08.1987 - 01.1990] FJ62..IV4 |
90301-14001 |
US $3.67 |
||
|
47236A
|
47236A
90467-16001
Clamp, Oil Cooler Hose
[08.1987 - 01.1990] FJ62..IV4 |
90467-16001 |
— | ||
| replacement | |||||
|
47236A
|
47236A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[08.1987 - 01.1990] FJ62..IV4 |
96133-41500 |
from US $2.26 |
||
|
47264
|
47264
47264-30040 Clevis, Master Cylinder Push Rod[08.1987 - 01.1990] FJ62,HJ6# |
47264-30040 |
US $5.53 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[08.1987 - 01.1990] FJ62,HJ6# |
47265-20050 |
from US $4.52 |
||
|
47265A
|
47265A
47265-20060
Boot, Reservoir, No.1(For Brake Master Cylinder Side)
[08.1987 - 01.1990] FJ62..IV4 |
47265-20060 |
— | ||
|
47275
|
47275
47275-22010 Gasket, Brake Master Cylinder[08.1987 - 01.1990] FJ62..IV4 |
47275-22010 |
US $4.48 |
||
|
47299
|
47299
47299-14010
Strainer, Brake Master Cylinder Reservoir
[08.1987 - 01.1990] FJ62..IV4 |
47299-14010 |
— | ||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9046108202
|
9046108202
90461-08202 Clamp(For Brake Master Cylinder) |
90461-08202 |
US $8.30 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.74 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
