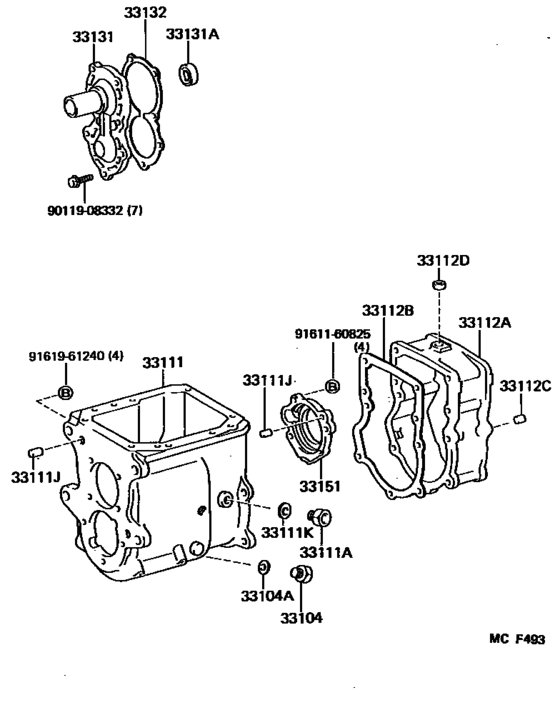

Clutch Housing & Transmission Case (Mtm) ([08.1987 - ] H55F (8708- )CBR) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[08.1987 - 01.1990] FJ62,HJ6#..MTM |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.1987 - 01.1990] FJ62,HJ6#..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1987 - 01.1990] FJ62,HJ6#..MTM |
90430-T0021 |
US $0.99 |
||
|
33111
|
33111
33111-60080 Case, Manual Transmission[08.1987 - 01.1990] FJ62,HJ6#..MTM |
33111-60080 |
US $690.14 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[08.1987 - 01.1990] FJ62,HJ6#..MTM |
90341-18006 |
from US $3.23 |
||
|
33111J
|
33111J
90250-10214 Pin, Straight(For End Plate)[08.1987 - 01.1990] FJ62,HJ6#..MTM 長さ＝１４，外径＝１０ |
90250-10214 |
from US $1.35 |
||
|
33111J
|
33111J
90250-12146 Pin, Straight(For Flywheel Housing)[08.1987 - 01.1990] FJ62,HJ6#..MTM 長さ＝１７，外径＝１２ |
90250-12146 |
US $2.15 |
||
|
33111J
|
33111J
90250-12216 Pin, Straight(For Manual Transmission Case)[08.1987 - 01.1990] FJ62,HJ6#..MTM 長さ＝１４，外径＝１２ |
90250-12216 |
US $2.04 |
||
|
33111K
|
33111K
90430-18008 Gasket[08.1987 - 01.1990] FJ62,HJ6#..MTM |
90430-18008 |
from US $0.84 |
||
| replacement | |||||
|
33111K
|
33111K
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1987 - 01.1990] FJ62,HJ6#..MTM |
90430-T0021 |
US $0.99 |
||
|
33112A
|
33112A
36117-60021
Adapter, Transfer
[08.1987 - 01.1990] FJ62,HJ6#..MTM |
36117-60021 |
— | ||
|
33112B
|
33112B
33142-60020 Gasket, Transfer Adapter[08.1987 - 01.1990] FJ62,HJ6#..MTM |
33142-60020 |
from US $6.92 |
||
|
33112C
|
33112C
90250-12216 Pin, Straight(For Manual Transmission Case)[08.1987 - 01.1990] FJ62,HJ6#..MTM |
90250-12216 |
US $2.04 |
||
|
33112D
|
33112D
90312-17001 Seal, Oil(For Transfer Adapter)[08.1987 - 01.1990] FJ62,HJ6#..MTM |
90312-17001 |
from US $1.97 |
||
|
33131
|
33131
33131-60040 Retainer, Bearing, Front(Mtm)[08.1987 - 01.1990] FJ62,HJ6#..MTM |
33131-60040 |
from US $83.52 |
||
|
33131A
|
33131A
90311-32013 Seal, Oil(For Transmission Front Bearing Retainer)[08.1987 - 01.1990] FJ62,HJ6#..MTM |
90311-32013 |
from US $5.56 |
||
|
33132
|
33132
33132-60020 Gasket, Front Bearing Retainer(Mtm)[08.1987 - 01.1990] FJ62,HJ6#..MTM |
33132-60020 |
US $4.84 |
||
|
33151
|
33151
33151-60010
Retainer, Output Shaft Rear Bearing(Mtm)
[08.1987 - 01.1990] FJ62,HJ6#..MTM |
33151-60010 |
— | ||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.20 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161961240
|
9161961240
91619-61240 New Genuine Part |
91619-61240 |
US $1.38 |
||
