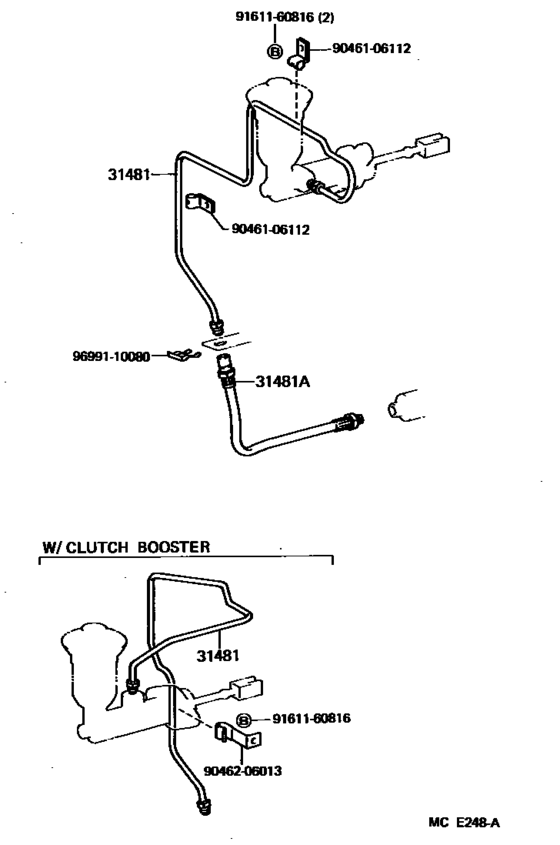

Clutch Pedal & Flexible Hose ([08.1987 - ] (8708- )MTM) Diagram Toyota LAND CRUISER
- Year
- 1987 - 1990
- Sales region
- Japan
- Frame
- FJ62V
- grade
- STD
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 08.1987
- To
- 01.1990
- Vehicle Model
- Land Cruiser VAN
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481
|
31481
31481-60242
Tube, Clutch Master Cylinder To Flexible Hose
[08.1987 - 01.1990] FJ62..IV4 |
31481-60242 |
— | ||
|
31481A
|
31481A
96812-50320 Hose, Clutch, No.1[08.1987 - 01.1990] FJ62,HJ6#..MTM |
96812-50320 |
US $29.90 |
||
|
9046106112
|
9046106112
90461-06112 Clamp, Brake Tube, No.6 |
90461-06112 |
US $2.33 |
||
|
9046206013
|
9046206013
90462-06013
New Genuine Part
|
90462-06013 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
||
